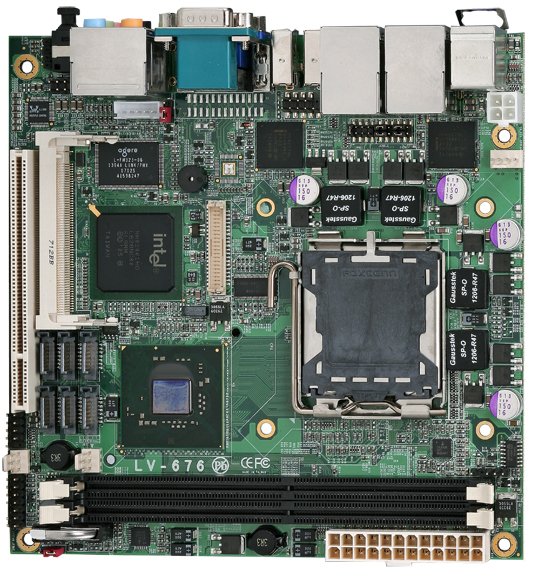

LV-676
 Intel®  CoreTM 2 Quad / CoreTM 2 Duo Desktop Mini-ITX Motherboard

Mini-ITX Motherboard with Intel Q82965 based on IntelCore 2 Duo & LGA775
Pentium 4 processor, 4GB DDR2, 4 x USB 2.0, 2 x COM, 2 x SATA,
Mini PCI, LVDS, DVI, 8-bit Digital I/O, 2 x COM, PCI, Mini PCI

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Mini-ITX mainboard, introduced the  Mini-ITX motherboard LV-676 that mainboard based on intel Q965 Express chipset, which supports the intel Core 2 Duo Processor with Intel Virtualization Technology, Intel Pentium D 900 sequence and Pentium 4 processors in the LGA775 socket, it is providing awesome performance for today`s and tomorrow`s demanding software applications - such as graphics-intensive games or serious number-crunching programs.

COMMELL's  LV-676 Mini-ITX mainboard incorporates intel Fast Memory Access that significantly increases overall system performance through the optimization of acailable bandwidth and reduction of memory access latency. this updated Q965GMCH also includes wider internal data buses that support dual-channel DDR2 memory technology at 800MHz for greater platform performance and memory flexibility.  based on Intel Graphics Media Accelerator 3000(Intel GMA 3000) architecture, delivers richer visual color and picture clarity without the need for additional discrete graphics cards. delivers performance for advanced operating systems like Microsoft Windows Vista and Dual Independent Display expands the viewable workspace to two monitors.

The LV-676 comes with floppy, PS/2 Keyboard and Mouse, 1 x RS232C and 1 x RS232/422/485, 2 x IEEE-1394a, Networking is provided by Intel 2 x 82573L PCI-Express Giga LAN, 6 x USB2.0 ports, It offers support for Intel High Definition Audio enables increased bandwidth for high quality audio and support for Dolby Technology.  Also support for eSATA enables the full SATA interface speed up to 4GB/s, support for RAID 0,1,5, and 10 enables high reliablity for personal data, or maximum storage performance for intensive applications. Mini PCI and PCI slots easily using any other add-on cards.

BackToTop

  Key Feature
  • CPU: Intel Core 2 Duo desktop, Pentium D and Pentium 4 in the LGA775 socket @ 1066/800/533-MHz.

  • Memory: 2 x 240 pin DDR2 800/667/533MHz up to 4.0GB.

  • Chipset: Intel Q965 and ICH8DO.

  • VGA Interface: Intel Q965 integrated GMA 3000 Technology.                                                  Support LVDS or DVI interface optional.

  • LAN Interface: 2 x Intel 82573L PCIE Giga LAN.

  • Serial ATA: Support six SATA.

  • Audio: Intel ICH8DO integrated with Realtek ALC888 High Definition Audio.

  • I/O Ports: 1 x RS232 and 1 x RS232/422/485 Serial Ports, 6 x USB2.0 ports, 1 x DB15 VGA port, 2 x IEEE-1394a, 1 x  PS/2 keyboard and mouse ports.

  • Extended Interface: One PCI bus add-in card connector,  1 x Mini-PCI socket.

  • GPIO Interface: Onboard programmable 8-bit Digital I/O interface.

  • WatchDog Timer: 256-level generates NMI or system reset programmable watchdog timer.

BackToTop

  Specification


Form Factor

Mini-ITX Motherboard (170 x 170 mm)

Processor

Intel®  CoreTM 2 Quad / CoreTM 2 Duo/ Pentium 4/Pentium D Processor Desktop LGA775  533/800/1066 MHz FSB.

Memory

2 x DDR2 533/667/800 MHz support up to 4.0 GB

Chipset

Intel® 82Q965 Express Chipset & ICH8DO

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset  internal timer for 1min ~ 255 min

Power Management

ACPI 1.0 compliant, supports power saving mode ATX PSU

VGA Interface

Intel® Q965 integrated GMA 3000 Technology

Video Memory

Up to 384MB shared with system memory

LVDS interface

Onboard 18/24-bits dual channel LVDS connector (Optional)

DVI interface

Chrontel CH7307C DVI transmitter with onboard 26-pin DVI interface (Optional)

Serial ATA Interface

6 x Serial ATA II Interface  with 300MB/s transfer rate Support RAID 0,1,5,10 function

Audio Interface

Intel® ICH8DO integrated with Realtek ALC888 HD Audio

LAN Interface

2 x Intel® 82573L Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extend Interface

One PCI slot One Mini PCI socket to support Mini PCI Type III A

External I/O Port

2 x RJ45 LAN ports, 1 x DB15 VGA port and 1 x PS/2 Keyboard/Mouse Port,  4 x USB2.0 ports, 2 x IEEE1394 port , 1 x SPDIF connector, 1 x Serial Port

    Internal I/O Port

1 x RS232/422/485, 1 x slim FDD port, 1 x GPIO port, 1 x     CDIN connector,1 x Audio connector, 1 x IrDA connector, 2 x USB ports, 1 x DVI (Optional) ,1 x LVDS and 1 x LCD inverter connector (Optional)

Power Requirement

Standard 24-pin ATX power supply and P4 4-pin 12V .            ( 20-pin is compatible)

    Board Dimension

    170mm x 170 mm (L x W)

Operation Temperature

0 ~ 60oC (32 ~ 140oF)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-676D

Onboard VGA,  2 x Intel Giga LAN, 6 x USB 2.0, Mini -PCI, PCI,

2 x COM, 1 x FDD, HD Audio, 6 x SATA, 2 x 1394, 1 x IrDA, DVI

LV-676X

Onboard VGA ,  2 x Intel Giga LAN, 6 x USB 2.0, Mini -PCI, PCI,

2 x COM, 1 x FDD , HD Audio, 6 x SATA, 2 x 1394 , 1 x IrDA , LVDS

OHS-1U775S

Low Profile 1U Multi-Core CPU Cooler (LGA775)

MP-6421

Mini-PCI Card support 1 x 44-pin IDE , 1 x CompactFlash & 2 x SATA

BackToTop
