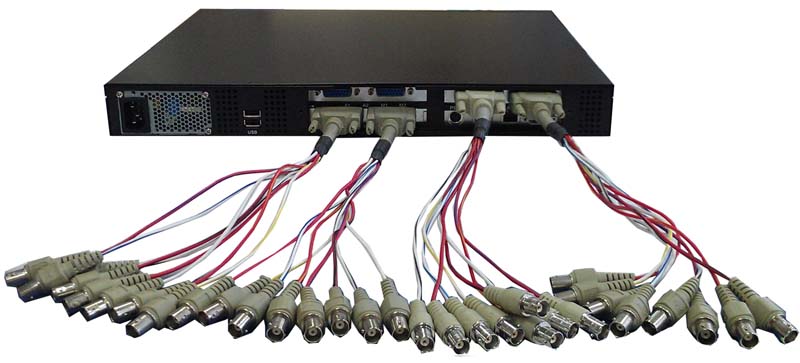

H.264 CIF&D1 Dual-Video-Stream Networking DVR
|
|
Datasheet (PDF format) |
| Features |
| -
PC-Base
DVR -
Up
to 32 video channel inputs
- Hardware
compression (H.264)
- Offer
dual H.264 streams
- Support
D1 , CIF resolution
- SCode
DVR program |
|
|
|
..........................................................................................................................................
|
| Specification |
| Machine
Model |
CMS-P1A16 |
CMS-P1A32 |
| Video
inputs |
16
ch |
32
ch |
|
Audio
inputs
|
16
ch |
16
ch |
|
Video
resolution
|
D1
, CIF |
D1
, CIF |
D1
, CIF |
D1
, CIF |
| Video
compression |
H.264
(Provide 2 independent H.264 streams) Hardware
compression.
1’st stream can be used as the recording
stream. 2’nd stream can be used as the
remote
stream
|
| Video
streammode |
Offer
Single-video stream mode and Dual-video stream mode |
| Video
monitoring
speed
|
480/400 fps |
960/800 fps |
| Audio
monitoring |
Support |
| Recording
speed
(Single-streammode
|
480/400
fps @ CIF
240/200
fps @ D1 |
960/800
fps @ CIF
480/400
fps @ D1
|
| Recording
speed
(Dual-streammode
|
480/400
fps @ CIF
120/100
fps @ D1 |
960/800
fps @ CIF
240/200
fps @ D1
|
| Multi-process
capability
|
Monitoring,
Recording, Playback and Remote monitoring, simultaneously |
|
Split
mode
|
1,
4, 6, 9, 16 split window. Provided Full screen mode
and auto-scan mode. |
| Audio
page scan |
Allow to execute the auto page swapping while in
1, 4, 6, 9, 16 split modes |
| Video
signal
adjustment
|
Can
adjust hue, saturation, contrast, and brightness of the camera’s input
signal |
| Recording
adjustment
|
Can
adjust Video resolution, Frame rate, Video quality, and GOP |
| Recording
mode |
Manual,
Auto, Scheduled, trigged by alarm. Provide recycle recording. |
| Alarm
detections |
Motion
detection, Video loss, HDD fail, Inputs of I/O controller |
| Local
allow function |
Allow
triggered to recording, snapshot, play allow sound, Enable/disable
output
port, …etc |
| Remote
allow
function
|
Send
to the alarm to remote Client machine by live video, alarm sound
and
mail. |
| Peripheral
control |
PTZ control, I/O control |
| Playback |
Allow
to play 16 recorded films, simultaneously.
|
| Playback
operation |
Skip
foreword, Skip backward, Pause, and Step operations are offered. It
is
allowed to control
the playing videos together, or one by one. Provide
Scroll
bar control, Playback speed
control, and Zoom in |
| System
information |
Provide
HDD status, System operation history, System login history, Alarm
log history |
| Snapshot |
Allow
to take pictures while in live view and playback |
| User
authorization |
Provide
local & remote password protection. Authorize
different users with
different
operation
functions |
| Keyboard
lock |
Provide
keyboard lock function to avoid unexpected persons who try to
access
the Windows
OS. |
| Remote
function |
Support
Remote video and audio monitoring, remote setup, remote file
download,
remote PTZ
control, Remote I/O control, Remote history log
checking,
Remote video signal adjustment,
Remote video speed
adjustment,
… etc.. |
| Dimension |
19”,
1U |
| System
disk |
1
x 8G SATA DOM |
| Operating
System |
Win
XP, Win XP-embedded, Win7-32bit, Win7-32bit embedded (Option) |
| Data
storage disk |
Allow
to install 1 SATA HDD
. |
| Hardware
Interface |
4
x USB 2.0, 1 x VGA, 2 Giga LAN, 1 x PS/2 keyboard and mouse ports, 1x
Audio
input
& output port
|
| user
options |
RS232 port (Foundry option) |
|
|
|
| Ordering
Code |
| CMS-P1A16 |
16 channel DVR system with SCode DVR software and Free remote software
|
|
CMS-P1A32 |
32
channel DVR system with SCode DVR software and Free remote software
|
|
| CMS
Software |
| Free remote
software |
Server
software , simple client software , IE viewer |
| CMS Economic
Version |
64-channel
software , see 4 DVRs simultaneously |
| CMS Profession
Version |
Full Economic
functions, Group link function, eMAP .... |
|
|
|
|
|
|
