| Specification |
| Machine
Model |
CMS-P3A16 |
CMS-P3A32 |
CMS-P3A48 |
CMS-P3A64 |
| Video
inputs |
16
ch |
32
ch |
48
ch |
64
ch |
|
Audio
inputs
|
16
ch |
32
ch |
48
ch |
32
ch |
|
Video
resolution
|
D1
, CIF |
D1
, CIF |
D1
, CIF |
D1
, CIF |
| Video
compression |
H.264
(Provide 2 independent H.264 streams)1’st stream can be used as
the
recording stream.
2’nd stream can be used as the remote stream. |
| Video
streammode |
Offer
Single-video stream mode and Dual-video stream mode |
| Video
monitoring
speed
|
480/400
fps |
960/800
fps |
1440/1200
fps |
1920/1600
fps |
| Audio
monitoring |
Provide |
| Recording
speed
(Single-stream
mode)
|
480/400 fps @ CIF 240/200 fps @ D1 |
960/800 fps @ CIF 480/400 fps @ D1 |
1440/1200 fps @ CIF 720/600 fps @ D1 |
1920/1600 fps @ CIF 960/800 fps @ D1 |
| Recording
speed
(Dual-stream
mode)
|
480/400 fps @ CIF
120/100 fps @ D1 |
960/800 fps @ CIF
240/200 fps @ D1 |
1400/1200 fps @ CIF
360/300 fps @ D1 |
1920/1600 fps @ CIF
480/400 fps @ D1 |
| Multi-process
capability
|
Monitoring,
Recording, Playback and Remote monitoring, simultaneously |
|
Split
mode
|
1,
4, 6, 9, 16, 25, 36 split window. Provided Full screen mode. |
| Auto
page scan |
Allow
to execute the auto page swapping while in 1, 4, 6, 9, 16 split modes |
| Multi-monitoring |
Support
1~4 monitors to view the live video. (Option function) |
| Video
signal
adjustment
|
Can
adjust hue, saturation, contrast, and brightness of the camera’s input
signal |
| Recording
adjustment
|
Can
adjust Video resolution, Frame rate, Video quality, and GOP |
| Recording
mode |
Manual,
Auto, Scheduled, trigged by alarm. Provide recycle recording. |
| Alarm
detections |
Motion
detection, Video loss, HDD fail, Inputs of I/O controller |
| Local
allow function |
Allow
triggered to recording, snapshot, play allow sound, Enable/disable
output
port, …etc |
| Remote
allow
function
|
Send
to the alarm to remote Client machine by live video, alarm sound
and
mail. |
| Peripheral
control |
PTZ
control, I/O control. |
| Playback |
Allow
to play 16 recorded films, simultaneously. |
| Playback
operation |
Skip
foreword, Skip backward, Pause, and Step operations are offered. It
is
allowed
to control the playing videos together, or one by one. Provide
Scroll
bar control, Playback speed control, and Zoom in |
| Snapshot |
Allow
to take pictures while in live view and playback |
| User
authorization |
Provide
local & remote password protection. Authorize
different users with different
operation
functions
|
| Keyboard
lock |
Provide
keyboard lock function to avoid unexpected persons who try to access
the
Windows
OS.
|
| Remote
function |
Support
Remote video and audio monitoring, remote setup, remote file
download,
remote PTZ
control, Remote I/O control, Remote history log
checking,
Remote video signal adjustment,
Remote video speed
adjustment,
… etc.. |

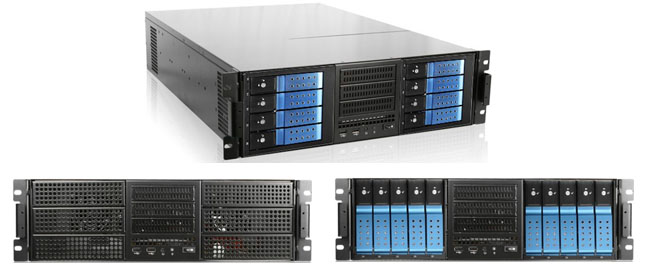

| Dimension |
19”, 3U |
| System
disk |
1
x 32G SATA DOM |
| Operating
System |
Win
XP, Win XP-embedded, Win7-32bit, Win7-32bit embedded (Option) |
| Data
storage disk |
Allow to install up to 16 SATA HDD (Need to use RAID card if over 6 HDD) |
| Hardware
Interface |
6 x USB 2.0, 1 x VGA, 2 Giga LAN, 1 x RS232, 1 x PS/2 keyboard and
mouse
ports, 1x Audio
input port, 1x Speaker port |
| Multi
monitors |
Allow
to support 4 monitors (Foundry option) |
| user
options |
I/O
controller, RS485 port, eSATA port, (Foundry option) |
