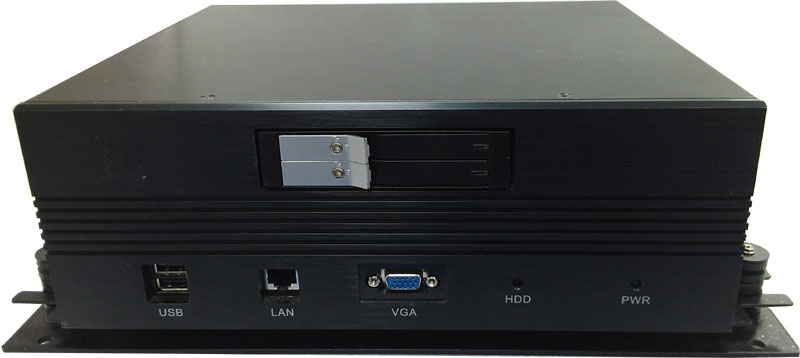

CMS-VA16
H.264 CIF&D1 Dual-Video-Stream Networking Vehicle DVR

 Features
 - Vechicle DVR

- 16 video and audio channel inputs

- Hardware compression (H.264)

- Offer dual H.264 streams

- Support D1 , CIF resolution

- SCode DVR program

  ..........................................................................................................................................
 Specification
 Machine Model CMS-VA16
 Video inputs

16 ch (Balanced,100 Ohm. The input port is the interface of the twist pair converter)

 Audio inputs

16 ch (600Ω)

 Alarm input/output

 port

8 input ports / 8 output ports

 Video resolution

D1 , CIF
 Video compression

H.264 (Provide 2 independent H.264 streams). Hardware compression. 1’st stream can be used as the recording stream. 2’nd stream can be used as the remote stream.

 Video streammode  Offer Single-video stream mode and Dual-video stream mode
 Video monitoring

 speed

480/400 fps
 Audio monitoring Support
 Recording speed

 (Single-streammode

480/400 fps @ CIF

240/200 fps @ D1

 Recording speed

 (Dual-streammode

480/400 fps @ CIF

120/100 fps @ D1

 Multi-process

 capability

 Monitoring, Recording, Playback and Remote monitoring, simultaneously

 Split mode

 1, 4, 6, 9, 16 split window. Provided Full screen mode and auto-scan mode.
 Audio page scan  Allow to execute the auto page swapping while in 1, 4, 6, 9, 16 split modes
 Video signal

 adjustment

 Can adjust hue, saturation, contrast, and brightness of the camera’s input

 signal

 Recording

 adjustment

 Can adjust Video resolution, Frame rate, Video quality, and GOP
 Recording mode  Manual, Auto, Scheduled, trigged by alarm. Provide recycle recording.
 Alarm detections  Motion detection, Video loss, HDD fail, Inputs of I/O controller
 Local allow function  Allow triggered to recording, snapshot, play allow sound, Enable/disable

 output port, …etc

 Remote allow

 function

 Send to the alarm to remote Client machine by live video, alarm sound

 and mail.

 Peripheral control  PTZ control, I/O control
 Playback

 Allow to play 16 recorded films, simultaneously.

 Playback operation

 Skip foreword, Skip backward, Pause, and Step operations are offered. It

 is allowed to control the playing videos together, or one by one. Provide

 Scroll bar control, Playback     speed control, and Zoom in

 System information

 Provide HDD status, System operation history, System login history, Alarm log

 history

 Snapshot

 Allow to take pictures while in live view and playback

 User authorization   Provide local & remote password protection. Authorize different users with

 different operation functions

 Keyboard lock  Provide keyboard lock function to avoid unexpected persons who try to

 access the Windows OS.

 Remote function

 Support Remote video and audio monitoring, remote setup, remote file



 download, remote PTZ control, Remote I/O control, Remote history log

 checking, Remote video signal adjustment, Remote video speed

 adjustment, … etc..

 Dimension and

 weight


 System disk  1 x 32G SATA DOM
 Operating System  Win XP, Win XP-embedded, Win7-32bit, Win7-32bit embedded (Option)
 Data storage disk  Available for 2 sets of 2.5’ HDD
 Hardware Interface

 2 x USB 2.0, 1 x VGA, 2 Giga LAN, 1 x RS232, 1 x RS485

 CMS Software
 Free remote software  Server software , simple client software , IE viewer
 CMS Economic Version  64-channel software , see 4 DVRs simultaneously
 CMS Profession Version  Full Economic functions, Group link function, eMAP ....
