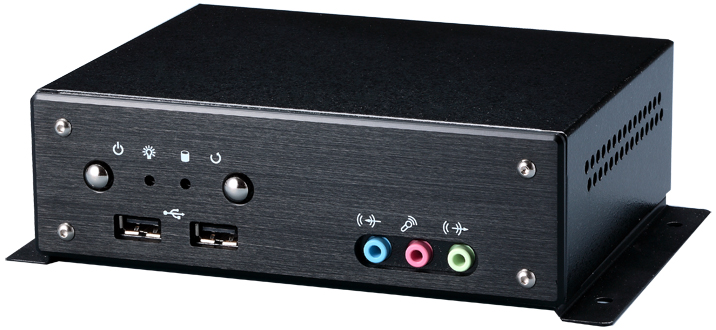

CMB-363
Mini
Barebone based on AMD GX533 processor
|
|
Overview
|
|
COMMELL's
CMB-363 is a Mini-server / terminal platform .the
CMB-363 provides the high reliability solution with high
performance and integration. With these features,
CMB-363 should be the advanced solution for you in :
-
Industrial
Embedded Applied Mini-Server, Transaction Station,
POS/POI, KIOSK, ATM, Web Payphone and Terminal
Platform
-
STB
(Set-Top-Box), Multi-Media Station and Terminal,
Book-size PC, Thin Client
-
Industrial
Panel PC, Portable Workstation, Panel-mount /
Wall-mount / Ceil-mount Workstation
|
|
BackToTop |
|
Features
|
dh
| Form Factor |
Mini
barebone system |
| Construction |
Heavy-Duty
steel |
| 3.5"
Mini-board |
Inside
Motherboard can be :
LE-363
: Onboard AMD GX533 processor
|
| Drive Bay |
Internal 1
x 2.5" HDD Space |
| Riser card |
No |
| Thermal Control |
No |
| Front Panel |
System Reset
switch
Power
On/Off and HDD activity
2
x USB ports , Line-in / Line-Out / Mic-in
|
| Rear Side I/O |
DC
input, PS/2, 2 x LAN ports, DB15 VGA, COM, CompactFlash,
PCMCIA
|
| Environment |
Operating
Temperature: 0 ~ 50C
|
| Power supply |
DC 12V input |
| Dimension |
164 x 127 x
50 mm |
| Weight |
0.74 kgw
, (With Case , Motherboard , 2.5 HDD) |
|
|
BackToTop |
|
Ordering Guide
|
|
|
|
CMB-363
|
LE-363-P MB ,
Chassis and 12V/80W adapter
|
|
CMB-363-128
|
LE-363-128 MB ,
Chassis and 12V/80W adapter
|
|
|
|
|
