.GIF) Fanless
Mini barebone 1U system support Intel® Core™ i7/ i5/i3 Mobile
processor
Support VESA mounting
(MIS-D 75/ 75 mm × 75 mm / M4
and MIS-D 100/ 100 mm × 100 mm/ M4) |
|
Overview
|
|
COMMELL's CMB-37E is a
high-performance Fanless barebone systems which support
Intel® Broadwell (5th) / Haswell (4th) Core™ Mobile
U-series processor, CMB-37E is suitable for industrial
application like industrial control and
automation, retail, gaming, print imaging .......
|
|
BackToTop |
|
Features
|
dh
|
System |
|
Processor |
Intel® Broadwell/Haswell Core™
i7, i5, i3, Celeron U-series Processor,FCBGA1168, TDP 15W |
|
Chipset |
Wildcat Point-LP |
|
Memory |
1 x DDR3L SO-DIMM 1333/1600 MHz
up to 8GB, Support Non-ECC, unbuffered memory only |
|
Watchdog Timer |
Generates a system reset with
internal timer for 1 min/s ~ 255 min/s |
|
Real Time Clock |
Chipset integrated RTC with
onboard lithium battery
|
|
Expansion |
2 x MiniPCIe(support mSATA) and
Card2 half-size choosable,
1 x SIM slot |
|
Graphics |
|
Chipset |
Intel® Gen 8/7.5 integrated HD
Graphics |
|
Display Interface |
1 x DisplayPort,
Support dual display |
|
LAN |
|
Chip |
1 x Intel® I210-AT Gigabit LAN
1 x Intel® I218-LM Gigabit LAN
(Support iAMT10) |
|
I/O |
|
Storage |
1 x 2.5 inch SATA3 HDD/SSD Bays,
2 x mSATA |
|

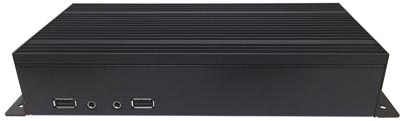

Front Panel |
2 x USB2.0, 1 x Min-in, 1 x
Line-out |
|
Rear Panel |
1 x DP, 2 x LAN, 2 x
USB3.0, 1 x COM,
Power Button, 1 x DC input |
|
Extend I/O |
2 x COM, 1 x Antenna |
|
Mechanical & Environmental |
|
Power Requirement |
DC Input 9~24V |
|
Construction |
Aluminum |
|
Mounting |
Desk/Wall mounting, VESA
mounting(MIS-D
75/ 75 mm × 75 mm/ M4 and MIS-D 100/ 100 mm × 100 mm/
M4) |
|
Dimension
|
225mm x 45mm x 107 (L x W x H) ,
1U |
|
Weight |
1.1 kg |
|
Temperature |
Operating within 0°C~40°C
(32°F~104°F)
Storage within -20°C~80°C
(-4°F~176°F) |
|
Relative Humidity |
0%~90% @ 40°, non-condensing
|
|
|
BackToTop |
|
Ordering Guide
|
|
|
|
Standard
|
Intel® 5th/4th Gen
Core™ U-series Processor, 2 LAN,
DisplayPort, USB2.0, USB3.0, MiniPCIe, 2.5”
SATA3 HDD Bay, mSATA, Audio, COM, DC in |
|
Ordering code |
CMB-37E7L2: i7-5650U
Processor with 12V/84W Adapter
CMB-37E5L2: i5-5350U
Processor with 12V/84W Adapter
CMB-37E3L2: i3-5010U
Processor with 12V/84W Adapter |
|
