| Hardware |
|---|
| Processor | Intel® Atom™ Processor X Series (Amston Lake) |
| Graphics | Intel® UHD Graphics |
| Memory | 1 × DDR5 SO-DIMM, up to 32 GB @ 4800 MHz, non-ECC |
| Display | 1 × HDMI, 1 × DP++, 1 × USB-C (DP Alt Mode, DP 1.4a); triple-display capable |
| Storage | 1 × M.2 Key M 2280 (PCIe Gen3 ×4 NVMe) |
| Expansion | 1 × M.2 Key E 2230 for Wi-Fi/Bluetooth module |
| Ethernet | 2 × Intel® I226 (up to 2.5 GbE) |

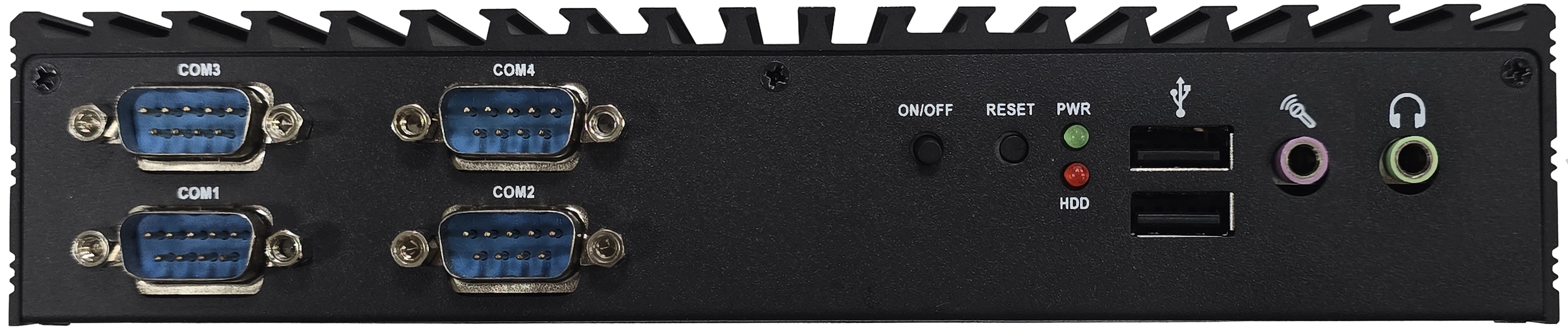

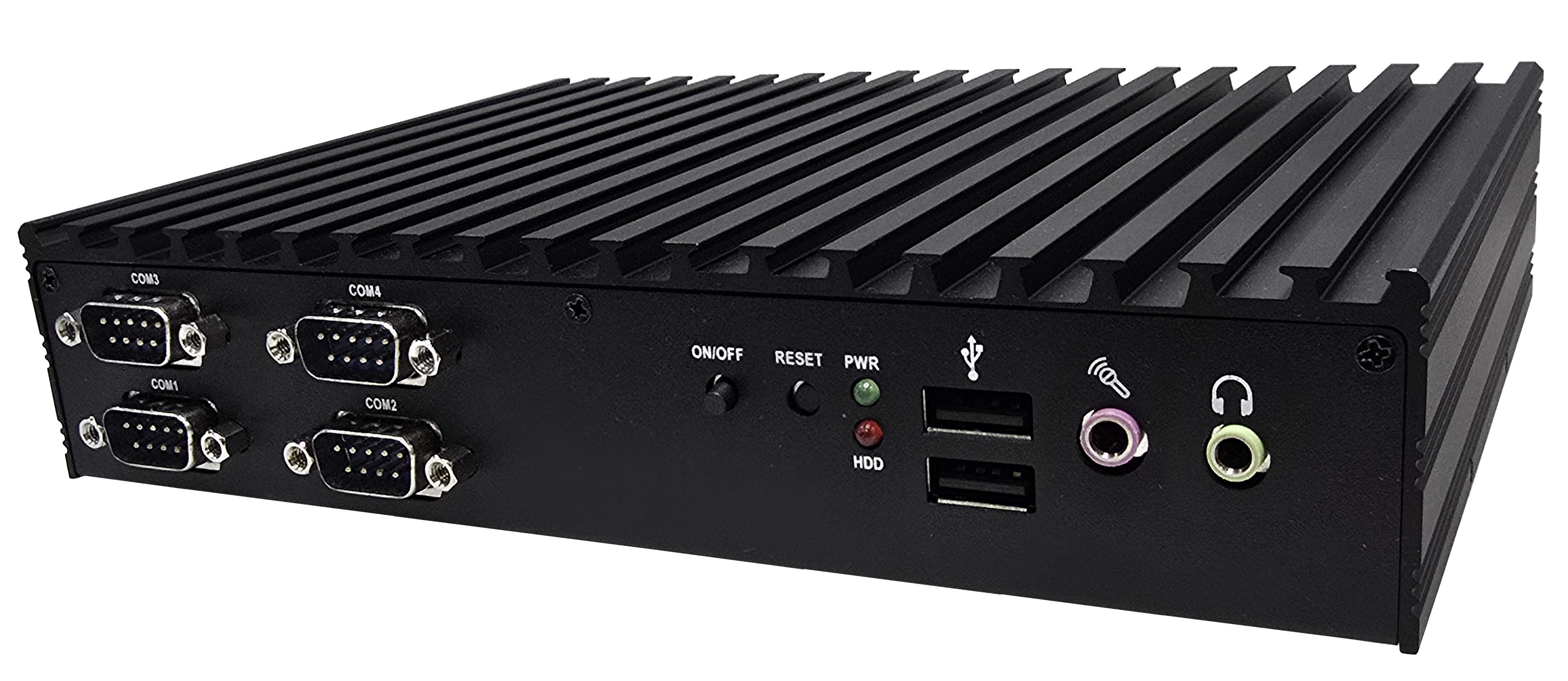

| Front I/O | 4 × COM (2 × RS-232/422/485 + 2 × RS-232), 2 × USB 2.0, Line-out, Mic-in, Power/Reset & LEDs |

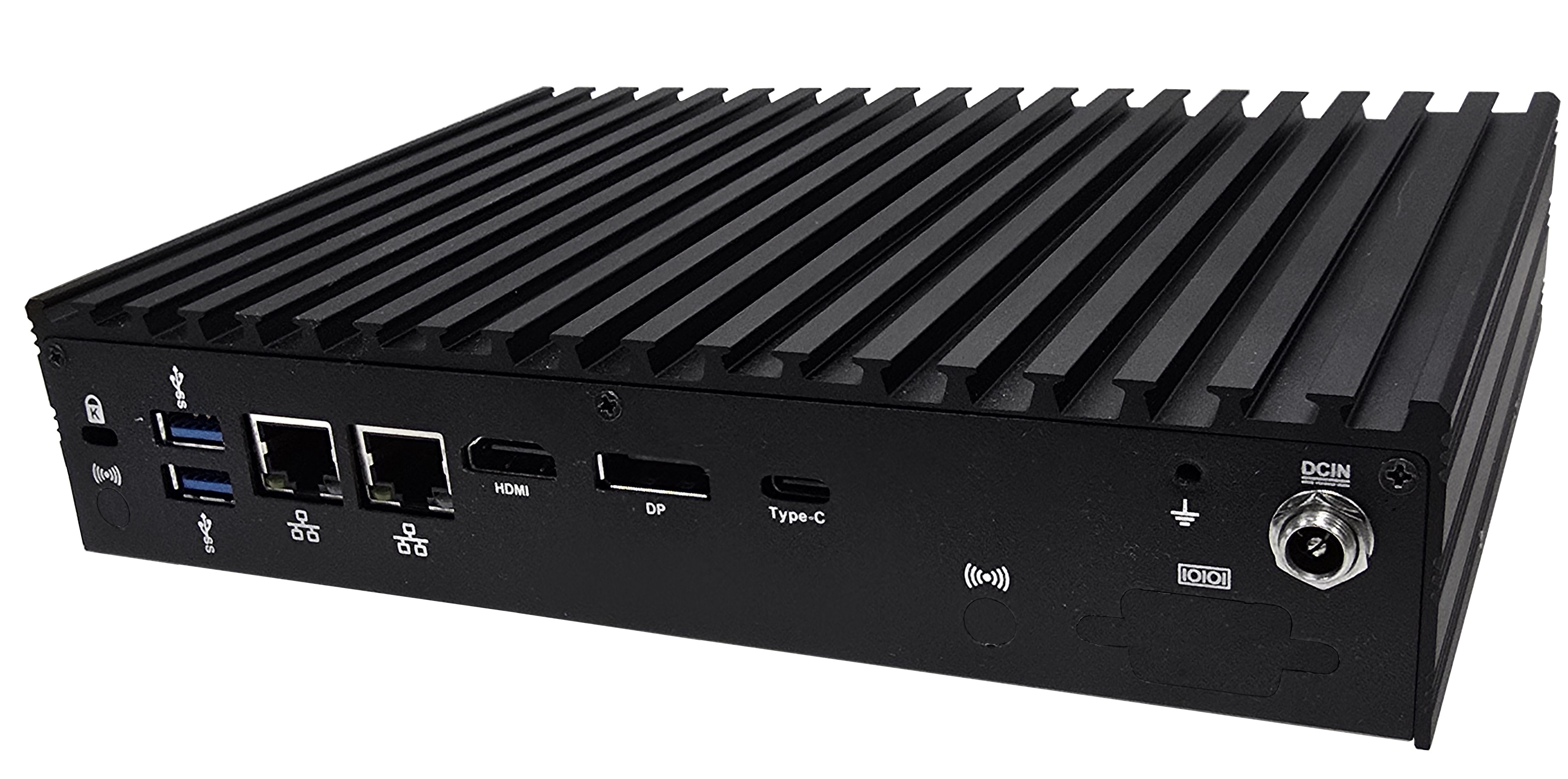

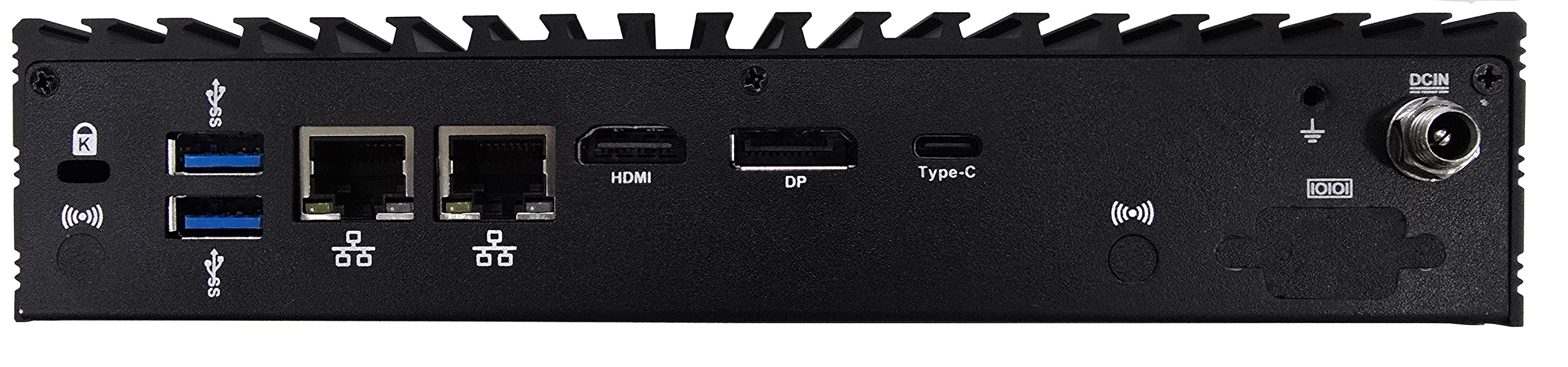

| Rear I/O | 2 × USB 3.2 Gen2, 2 × 2.5 GbE, HDMI, DP++, USB-C (DP Alt), DC-in 9–35 V, 2 × Wi-Fi antenna holes (opt.), 1 × COM (opt.) |
| Power | DC 9–35 V; 12 V / 84 W adapter included (base model) |
| Mechanical & Environmental |
|---|
| Dimension / Weight | 145 × 200 × 41 mm; 0.95 kg |
| Operating Temp. | −10 ~ 50 °C |
| Storage Temp. | −40 ~ 85 °C |
| Humidity | 0–90% RH @ 40 °C, non-condensing |
| Software |
|---|
| OS Support | Windows 11/10 64-bit, Linux |
| Security | TPM 2.0 (optional) |
