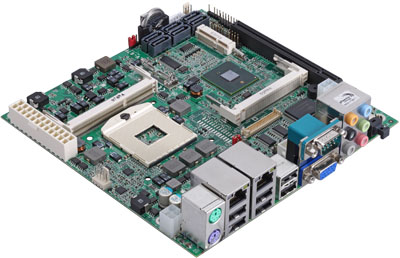

LV-67F--- Core i7/i5/i3 rPGA988A Mini-ITX

Mini-ITX Motherboard with Intel QM57  Chipset  based  on
Core i7/i5 rPGA988A Mobile processor,  8GB DDR3 SDRAM,
2 x Giga LAN,  6 x SATAII with RAID 0,1,5,10,  VGA, LVDS,
HD Audio, 2 x COM, 10 x USB2.0, one PCIE x 16, Mini PCI
 Mini PCIe, GPIO, ATX P/S or 9~24V DC


(TAIPEI, TAIWAN, 09.20, 2010) Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Mini-ITX mainboard, is releasing the  Mini-ITX motherboard LV-67F that designed for the new Intel mobile Core i7/i5/i3 processors in the rPGA988A socket. The Mini-ITX mainboard based on intel QM57 chipset, along with a compatible processor that is intel next generation 64-bit, multi-core processors built on 32 nm Core i7/i5/i3 with HD Graphic function or 45nm i7-8x0 & i7-7x0 without Graphic, placing the memory controller and graphics core on the processor die provides a two-chip system architecture,  Innovative two-chip solution provides Intel Turbo boost technology and Intel Hyper-Threading technology which maximizes performance to match your workload and lower power than previous three-chip platform. This platform is ideal for developing high-performance systems for industrial control and automation, retail, gaming, print imaging and digital signage.

COMMELL's  LV-67F Mini-ITX mainboard is provided for up to 8GB of DDR3 800/1066 MHz data transfer rate dual-channel system memory, 1-GB and 2-GB DDR3 DRAM technologies are supported for x8 and x16 devices. When along with Intel 32nm Core i7/i5/i3 processor that provided  Intel HD graphic function with Dynamic Video memory Technology, MPG2/WMV9/VC1/AVC hardware acceleration, advanced pixel adaptive De-Interlacing and High quality Scaling, additional display features include 24-bit dual channel LVDS and DVI interface optional.

The LV-67F comes with PS/2 Keyboard and Mouse, 1 x RS232C and 1 x RS232/422/485, Networking is provided by Intel 2 x 82574L Giga LAN, 10 x USB2.0 ports, It offers support for Intel High Definition Audio enables increased bandwidth for high quality audio.  Also support for eSATA enables the full SATA interface speed up to 3GB/s, support for RAID 0,1,5, and 10 enables high reliablity for personal data, or maximum storage performance for intensive applications. Mini PCI, Mini PCIe and PCIE slots easily using any other add-on cards.

LV-67F Features

  • CPU: Intel Core i7/i5/i3 in the rPGA988A socket .

  • Memory: 2 x DDR3 800/1066-MHz up to 8.0GB.

  • Chipset: Intel QM57.

  • VGA Interface: Integrated Intel HD graphics Controller(depends on CPU).

  • LVDS: 24-bit dual channel LVDS interface.

  • DVI: Optional DVI interface (LV-67FXD)

  • LAN Interface: 2 x Intel 82574L PCIE Giga LAN.

  • Serial ATA: Support six SATA.

  • Audio: Integrated Realtek ALC888 High Definition Audio.

  • I/O Ports: 1 x RS232 and 1 x RS232/422/485 Serial Ports, 10 x USB2.0 ports, 1 x  PS/2 keyboard and mouse ports, 1 x LCD inverter, 1 x SMBUS.

  • Extended Interface: One PCIE x16 slot, 1 x Mini-PCIe socket, 1 x Mini-PCI socket.

  • GPIO Interface: Onboard programmable 8-bit Digital I/O interface.

  • WatchDog Timer: 256-level generates system reset programmable watchdog timer.

  • Power: ATX P/S or 9~24V full range DC input.


  COMMELL is a leading supplier of Single Board Computers and focuses on developing the most

  advanced and reliable IPC products. In addition to promise our customers constantly stay ahead

  of this competitive business, we are always in search of disruptive & incremental sustaining

  innovation. We treat every of our customer as partner and provide the best services and total

  support. The combination of innovation, superior quality, and excellent services will ensure both

  Taiwan Commate Computer Inc., and our customers always have the competitive edge in the

  computer world.
