Press Release  >>  Product News

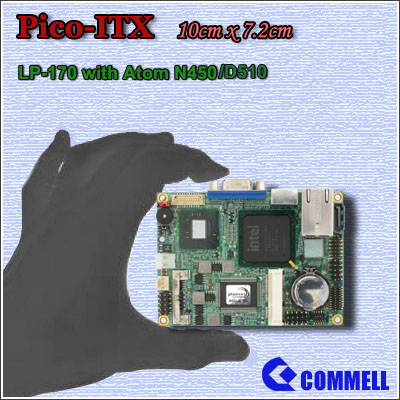

LP-170 ---- Based on Intel Atom N450/ D510

Pico-ITX motherboard with Intel Atom N450/D410/D510 CPU

& ICH8M, DDR2 667 SDRAM up to 2GB, Integrated GMA3150,

Giga LAN, LVDS, VGA, SATAII, HD Audio, 2 x RS232,

GPIO, 4 x USB2.0, CompactFlash, PCIE mini card, 12V DC


(TAIPEI, TAIWAN, 05.05, 2010) Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Single Board Computers, unveils the  new industrial-grade Pico-ITX (measuring just 10cm x 7.2cm )motherboard LP-170 that SBC based on the Intel Atom processor single core N450/ D410/ dual core D510, implemented in 45nm technology, is power-optimized and delivers robust performance-per-watt for cost-effective embedded solutions, the N450 TDP rating is only 5.5Watts, D410 is 10W and D510 dual core is still only 13W. The board is designed to enable x86 to be built into embedded systems where it was previously impractical for space reasons. It is especially suitable for applications that must be contained in a limited space control systems.

 The LP--170 motherboard consists of the intel ATOM N450/ D410/ D510 and ICH8M,  Graphic Processing Unit features power-efficient 32-bit 3D graphics core based on Intel GMA 3150 architecture, video capability with up to 384MB of shared graphics memeory, delivers sophisticated graphics for large display applications and with Dual  display types such as VGA+LVDS, Enables smoother playback for MPEG-2 codec, a standard video compression format used on Blu-ray, DVDs, broadcast, and broadband content.

COMMELL's LP-170 supports DDR2 SO-DIMM up to 2GB, and comes with PS/2 Keyboard and Mouse, 2 x RS232C, Networking is provided by  Intel 82583V Giga LAN, 4 x USB2.0 ports, HD audio, SATAII interface, CompactFlash socket, Expansion with one PCIE mini card socket.

LP-170 Features

  • CPU: Intel Atom N450/ D410 single core/D510 dual core processor 1.66GHz.

  • Memory: 1 x DDR2 SO-DIMM up to 2.0GB.

  • Chipset: Intel ICH8M Chipset.

  • VGA Interface Intel integrated GMA 3150 technology.

  • LAN Interface: Intel 82583V Giga LAN.

  • LVDS: Onboard 18-bit single channel LVDS.

  • Serial ATA: Support 1 x SATAII interface with 300MB/s transfer rate.

  • Audio: HD Audio.

  • I/O Ports: 2 x RS232 Serial Ports,4 x USB2.0 ports, 1 x DB15 VGA port, 1 x  PS/2 keyboard and mouse ports.

  • Solid State Disk: 1 x CompactFlash Type II socket.

  • Extended Interface: 1 x PCIE mini card socket.

  • WatchDog Timer: 256-level generates system reset programmable watchdog timer.

  • Power: 12VDC in.

  • Dimension: 100mm x 72mm


COMMELL is a leading supplier of Single Board Computers and focuses on developing the most advanced and reliable IPC products. In addition to promise our customers constantly stay ahead of this competitive business, we are always in search of disruptive & incremental sustaining innovation. We treat every of our customer as partner and provide the best services and total support. The combination of innovation, superior quality, and excellent services will ensure both Taiwan Commate Computer Inc., and our customers always have the competitive edge in the computer world.

For further information about COMMELL is available at


mailto:  ;

Tel: 886-2-26963909   Fax: 886-2-26963911
