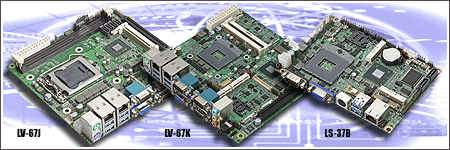

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Single Board Computers, has released new Industrial embedded platform with 3rd generation Intel Core processors --- Mini-ITX LV-67J based on Intel Q77 Express chipset, 3.5" Mini-board LS-37B and Mini-ITX LV-67K based on Intel QM77 Express chipset. The two-chip platform consists of a processor and a Platform Controller Hub (PCH) --Q77/QM77 to enable higher performance, and The Mobile and Desktop 3rd generation Intel Core processor family are the next generation of 64-bit, multi-core processors built on 22-nanometer process technology, which up to 20% enhanced computing power and 50% more graphics performance, combined with the Intel Q77/QM77 to provide flexibility for connecting I/O devices, including USB3.0 for faster data access,  full Serial ATA  interface speed up to 6GB/s to support next-generation SSDs, and PCIe 3.0,  it is the ideal pltform for Kiosk, digital signage, Medical equipment, Point-of-Sale, Gaming machines and Industrial control systems.

These Embedded Board combined with the 3rd Intel Core processors to integrate Intel HD Graphics 4000, provides brilliant images and colors and eliminates the need for a discrete graphics card. Moreover, these embedded board support dual-display that integrated  an  array of video interface including VGA, DVI or 24-bit dual channel LVDS port(LV-67K,LS-37B only).

The Min-ITX LV-67J can be equipped with a choice of processors from the 3rd generation Intel Core processor family-Desktop and the Intel Q77 Express chipset. This industrial motherboard supports two DDR3 up to 16GB, comes with VGA, and DVI ports, The rich I/O includes PS/2 Keyboard and Mouse, 1 x RS232/422/485 and 3 x RS232, 2 x SATAII and 2 x SATAIII interface, IrDA interface on-board, Networking is provided by two Intel Giga LAN, 4 x USB2.0 and 4 x USB3.0 ports, HD Audio are also integrated. One PCIE x 16 3.0 slot, one Mini-PCI slot and one PCIE mini card socket allows for easily using mSATA or any Mini_cards.

The LV-67K is a Mini-ITX form factor board with a choice of processors from the 3rd generation Intel Core processor family-Mobile and the Intel QM77 Express chipset. Moverover, up to 16GB of DDR3 1333/1600 is feasible for two SODIMMs. Additionally, this board offers multi-disply ports with VGA, LVDS and DVI ports, The rich I/O includes PS/2 Keyboard and Mouse, 1 x RS232/422/485 and 5 x RS232, 4 x SATAII and 2 x SATAIII interface, Networking is provided by two Giga LAN with Intel 82574L and Intel 82579LM, 6 x USB2.0 and 4 x USB3.0 ports, HD Audio are also integrated. One PCIE x 16 3.0 slot,  two PCIE mini card socket and one SIM socket, The operating voltage is DC 9~24V or ATX P/S.

The 3.5-inch LS-37B based on 3rd generation Intel Core processor family-Mobile and the Intel QM77 Express chipset, comes with VGA, LVDS and DVI ports, supports one DDRIII SO-DIMM up to 8GB, The rich I/O includes PS/2, 1 x RS232/422/485 and 1 x RS232, 2 x SATAIII, one Intel 82579LM Gigabit LAN, 2 x USB2.0 and 4 x USB3.0 ports, HD Audio. two  PCIE mini card socket and one SIM socket. Additionally, The operating voltage of LS-37B is from 9V to 24V DC input.
