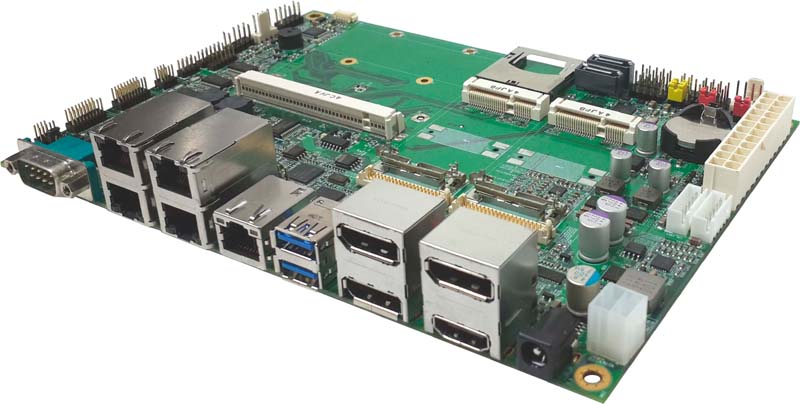

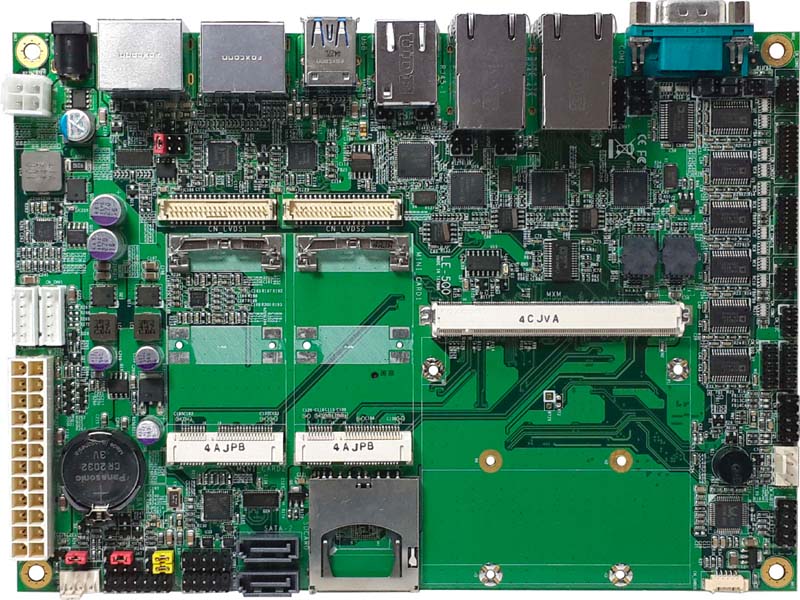

 LE-5Q0 - QSeven Carrier Board





- Features

- Specifications

- Ordering information

- Datasheet (PDF)

- Manual (PDF)

- Check it enlarge

  • Support Qseven Specification Rev. 2.0

  • 1 x Gigabit Phy LAN and 4 x INTEL I210 LAN, 2 x SATA3, 4 x USB2.0, 2 x USB3.0, 6x COM

  • 2 x Mini PCIE , 1 x LPC, 1 x SMBUS, 1 x I2C, 1 x DIO , 1 x DVI, 3 x Display ports 

  • DC Input 6~27V

 Specifications

Form Factor

5.25Qseven Carrier Board



Audio Features

Realtek ALC262 High Definition Audio Codec



Serial ATA Feature

Two Serial ATA ports

One mSATA (Optional)



Expansion Slots

One SD Card socket (Optional)

Two Mini PCIE socket

One SIM socket



DVI  Interface

One onboard DVI connector (Optional)



Display port Interface

Three onboard Display port connector (Optional)



LVDS  Interface

Two onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply (Optional)



LAN  Interface

One Gigabit Ethernet Lan Port Four Intel I210 Gigabit LAN (Optional)



Power Requirement

Standard 24-pin ATX power supply or 6~27V full range DC Input



Internal  I/O  Ports

Two connectors for four USB 2.0 ports
One connector for RS232/422/485 serial port
Two connector for four RS232 serial port
One LPC connector
One SMBus connector
One I2C connector
One Digital I/O connector
One Audio connector
Two LVDS LCD panel connector and LCD/inverter power connector
Two Serial ATA connectors
One CPU fan connector
One System fan connector
One PS/2 Keyboard/Mouse connector



External I/O port
One RS232 serial port
Five RJ45 LAN port (Optional)
Two USB 3.0 port
One DVI port (Optional)
Three Display port (Optional)



Dimension

203mm x 146mm. (L x W)



Temperature

Operating within 0C~60C (32F~140F)
Storage within -20C~80C (-4F~176F)



Relative Humidity

10%~90%, non-condensing



 Ordering information
LE-5Q0G2XD DVI/Display port x 1,LVDS x 1,USB3.0 x 2, USB2.0 x 4,RJ45 LAN x 2,SATA x 2, SDCARD,GPIO,SPI,LPC,Minicard1 x 1,Minicard2/MSATA x 1,I2C,PS2,AUDIO, SMBUS, RS232 x 5, RS232/RS422/RS485 x 1
