FS-961

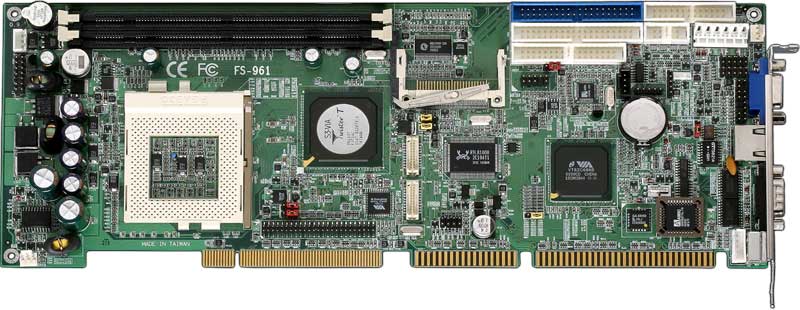

Full-size PICMG-bus Socket 370 Pentium-III / Celeron CPU Card

with Flat Panel SVGA/ CRT UXGA, 36-bit LVDS, 10/100Mbps LAN Interfaces

¡@





-
Overview


-
Feature


-
Specification


-
Product Image


-
Ordering Guide


-
Datasheet (PDF format)


-
Technical Document

  Overview

COMMELL's FS-961 SBC (Single Board Computer) is an all-in-one industrial full-size PICMG (PCI/ISA)-bus CPU card based on Intel socket 370 architecture, supports Intel Pentium-III, Celeron and VIA C3 CPUs up to 1.4 GHz at 133 MHz of FSB.Support Intel Tualatin/Coppermine FC-PGA2/FS-PGA CPU and VIA C3 Samuel I/II. With 1GB PC133 SDRAM, Dual UltraATA/100 IDE, 128-bit 3D Engine Graphic chipset, integrated flat panel SVGA, 36-bit LVDS, 10/100Mbps LAN and SSD interfaces, the FS-961 provides the powerful system performance solution. With these features, FS-961 makes it possible for you in :

  • Industrial Applied Computing Server and Workstation Platform

  • CTI (Computer Telecom Integration), DVR (Digital Video Recorder), VOD (Video-On-Demand), broadcast, streaming server and cluster

  • Industrial Panel PC, Portable Workstation, Panel-mount / Wall-mount Workstation

  • POS/POI, Kiosk, ATM, Web Payphone, transaction station and terminal

  • Industrial applied instruments based on network and LVDS panel-link / TTL LCD display

BackToTop

  Feature

  • Powerful computing capacity with Intel Socket 370 Pentium-III / Celeron CPU up to 1GHz at 133 MHz of FSB

  • High memory capacity up to 1GB PC133 SDRAM

  • Advanced Dual UltraATA/100 IDE interface to enhance the full system performance

  • Integrated 128-bit 3D Engine Graphic chipset

  • Integrated flat panel supported by LVDS panel link or TTL

  • Integrated 10/100 Mbps Fast Ethernet interface

  • Integrated AC'97 3D Audio interface

  • Jumper selectable RS-232C serial port

  • Four USB ports for additional USB devices or adapters

  • CompactFlash support

  • Popular OS supported for industrial mainstream applications

  • Industrial standard PICMG form factor

BackToTop

  Specification

  • Form Factor: full-size PICMG (PCI/ISA)-bus CPU card with 32-bit PCI ands 8/16-bit ISA bus interfaces

  • Socket 370 supports FC-PGA Intel® Pentium®-III, FC-PGA/PPGA CeleronTM, VIA C3 CPUs up to 1.4GHz @ FSB 66/100/133 MHz. Support Intel Tualatin/Coppermine FC-PGA2/FS-PGA CPU and VIA C3 Samuel I/II.

  • Chipset: VIA/S3 Twister-T PN133T chipset with VIA 8606T and 686B

  • DRAM: 1 GB PC100/133 SDRAM

  • PCI Enhanced IDE: Dual UltraATA/100 bus master IDE channel up to 4 ATAPI device

  • I/O Ports: two RS232  serial port, one SPP/ECP/EPP parallel port, four 1.1USB, FDD, IrDA, PS/2 keyboard and mouse ports

  • VGA Interface: VIA/S3 Twister VT8606T chipset built-in S3 Savage4 SVGA core with 128-bit 3D engine BIOS selectable 8/16/32 MBytes video memory shared with system memory VGA,SVGA,XGA,SXGA,UXGA mode up to 1280 X 1024 of resolution

  • LCD Interface: Support 36-bit TTL/LVDS TFT/DSTN LCD interface with 256 gray shade integrated 2-channel 110 MhHz LVDS interface up to 1280 X 1024 of resolution

  • TV-out interface: VIA/S3 Twister-T  PN133T 8606T chipset built in VGA core with TV-out encoder support AV and S-video TV-out interface

  • LAN Interface: 10/100Mbps Fast Ethernet interface with RJ45 on bracket

  • SSD: Onboard CompactFlash socket support CompactFlash Card(CFC) Flash memory capacity up to 1 Gbytes, driver free and bootable Jumper selectable master/slave mode on primary IDE port

Download datasheet @ PDF format

BackToTop

  Ordering Guide

¡@

  FS-961VXL

Full-size PICMG Socket 370 Tualatin CPU Card

with LVDS/TTL LCD/CRT SVGA, Audio, LAN,

and CompactFlash Interface

¡@

¡@

  FS-961VTL

 Same as above but with TTL/LVDS TFT/DSTN LCD interface

BackToTop

[Single Board Computer Index]

¡@
