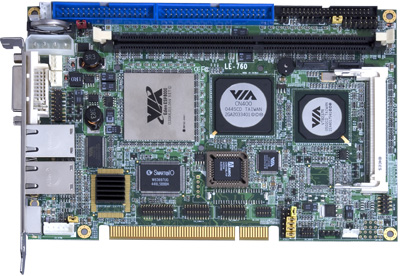

HE-760


Fanless Onboard VIA Eden 800 MHz processor ,

VIA CN400 & VT8237R , support DDR400 up to 1 GB

LVDS or DVI interface, Dual Ethernet , Mini-PCI,

4 x RS232 , 2 x SATA , USB , GPIO , IrDA







-
Overview


-
Feature


-
Specification


-
Product Image


-
Ordering Guide


-
Datasheet (PDF format)


-
Technical Document

  Overview

COMMELL’s  Half-size PCI platform HE-760 based on VIA CN400 and VT8237R which offers a highly integrated high performance , low power chipset solution .The HE-760 supports high speed DDR memory providing maximum capacity 1GB, integrated graphics controller with S3 Graphics Unichrome Pro IGP graphics core,Optioanl Onboard 18/24-bit LVDS or DVI interface. One 44-pin & one 40-pin IDE ports.the HE-760 leverages the advanced hardware MPEG-2 and MPEG -4 acceleration features on all display type from CRT and LCD  screens to standard definition TV and HDTV.

The HE-760 comes with floppy, PS/2 Keyboard and Mouse, 3 x RS232 & 1 x RS232/422/485, 1 x Printer port, 1 x Mini-PCI socket, Networking is provided by dual Ethernet LAN. 2 x USB2.0 ports for 40X faster data transfer rate and backward compatible to support USB 1.1 devices and AC97 3D Audio are also integrated. Additionally, HE-760 is also equipped with CompactFlash Interface type II for easily using any memory card.

The COMMELL HE-760 is designed to meet the needs of applications that require extraordinary computing performance, reliability and other tough environment with low power consumption processor, which also well supports with the Windows 2000/XP,

BackToTop



  Feature

  • CPU: Onboard VIA Eden 800 MHz CPU @ 133 MHz FSB

  • Memory: 1 x 184-pin DDR DIMM support up to 1 GB.

  • Chipset: VIA CN400 and VT8237R chipset.

  •  VGA Interface: Built-in S3 Graphic Unichrome Pro IGP core

  • LVDS Interface: 18/24-bit LVDS interface.

  • Enhanced IDE: 1 x 40-pin and 1 x 44-pin IDE ports interface

  • LAN Interface:  1 x 10/100 Mbps & 1 x Giga . Dual LAN

  • Audio: Realtek ALC201A AC97 2 channel 3D audio interface.

  • USB: 2 Hi-Speed USB 2.0 interface

  • I/O Ports: 3 x RS232 & 1 x RS232/422/485, 1 parallel port, FDD, PS/2 keyboard and mouse ports, 1 x SIR

  • Solid State Disk: Onboard CompactFlash Type-II socket.

  • Digital I/O: Supports 8 bit digital I/O.

  •  Watchdog: System reset programmable watchdog timer with 1 ~ 255 sec./min. of timeout value



BackToTop



 Specifications

Form Factor

Hall-size PCI-bus CPU Card

CPU

Fanless onboard VIA Eden 800 MHz CPU @ 133MHz FSB

Memory

1 x 184 pin DDR DIMM to support up to 1 GB

Chipset

VIA CN400 and VT8237R

Watchdog Timer

System reset programmable watchdog timer with 1 ~ 255 of timeout value

Real Time Clock

VIA VT8237 built-in RTC with lithium battery

Power Management

ACPI 1.0 & APM 1.2 compliant

PCI Enhanced IDE

1 x 40-pin & 1 x 44-pin IDE ports interface

Serial ATA

2 x SATA port. Support RAID 0/1 function

VGA Interface

VIA CN400 Built-in S3 Graphic Unichrome Pro IGP graphics core

GPIO

Supports 8 bit digital I/O.

LVDS optional

Supports up to 18/24-bit LVDS . Inverter connector on board

DVI optional

Support DVI up to 1600 x 1200 resolution

LAN Interface

Dual LAN. 1 x 10/100Mbps and 1 x Giga Ethernet

Expansive Interface

One Mini-PCI socket for type III

Audio Interface

Built-in AC97 2 channel 3D audio controller with ALC201A

Multi-I/O Port

1 Floppy connector, 1 Printer port, 3 RS232 & 1 RS232/422/485 port, 1 SIR connector, 2 USB 2.0 . PS2 Keyboard & PS2 mouse,

Solid State Disk

Onboard Compact Flash Type-II socket

Environment

Onboard  AT 4-pin connector DC 5V/12V & 5V standby.

Operation Temperature: 0 ~ 60oC (32 ~ 140oF)



Download datasheet @ PDF format

BackToTop



  Ordering Guide


HE-760GED
OEM version
(MOQ:50)
Half-size PCI onboard fanless VIA Eden 800 MHz processor,
CN400 and VT8237 chipset, Onboard VGA, Dual LAN,
Compact Flash socket, USB 2.0, RS232 & RS232/422/485 ports,
USB, GPIO, IrDA. Support DVI interface
HE-760GEX
OEM version
(MOQ:50)
Half-size PCI onboard fanless VIA Eden 800 MHz processor,
CN400 and VT8237 chipset, Onboard VGA, Dual LAN,
Compact Flash socket, USB 2.0, RS232 & RS232/422/485 ports,
USB, GPIO, IrDA. Support 18/24-bit LVDS interface
HE-760C10GED
OEM version
(MOQ:50)
The same as HE-760GED but change processor to C3 1.0GHz
Not Fanless version!
HE-760C10GEX
OEM version
(MOQ:50)
The same as HE-760GEX but change processor to C3 1.0GHz
Not Fanless version!
CBP-5P4
4 PCI + 1 CPU PCI bus backplane

BackToTop
