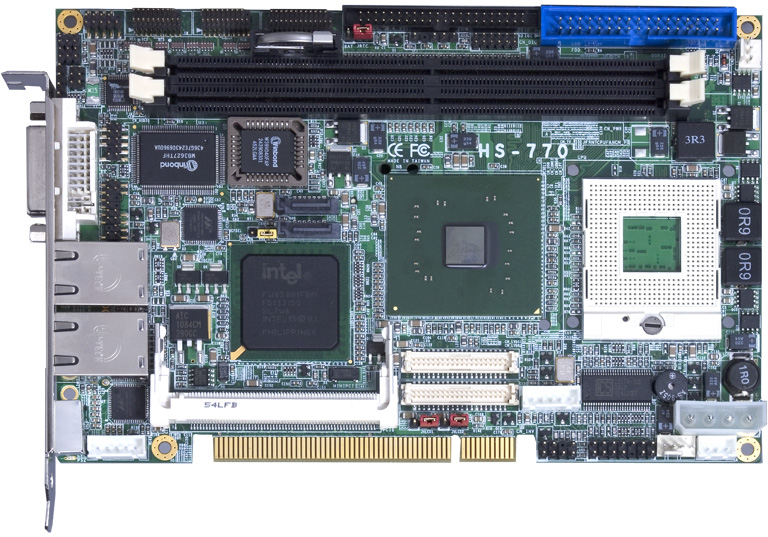

HS-770
Intel
Pentium M / Celeron M socket 478 .400/533
FSB
, 2 x DDRII DIMMS , Onboard VGA & LVDS
Support
24-bit LVDS ,Dual Gigabit LAN & SATA
3
x RS232 & 1 RS232/422/485 , Audio
|
|
Overview
|
|
COMMELL’s Half-size
PCI platform HS-770 based on Intel 915GME and ICH6M Chipset, which offers a highly integrated low
power, high performance chipset solution that has been
optimized to support Intel Pentium M / Celeron M processor.The
HS-770 supports high speed DDRII memory providing maximum capacity
2GB, integrated graphics controller with Intel
GMA900, Onboard 24-bit LVDS & inverter connector. Support one
channel & up to two 44-pin IDE devices.
The HS-770
comes with floppy, PS/2 Keyboard and Mouse, 3 x RS232 & 1
x RS232/422/485 , 1 x
Printer port, UltraATA 33/66/100 EIDE,
Networking is provided by Marvell E8053 dual Gigabit
Ethernet LAN. 4 x USB2.0 ports for 40X faster data
transfer rate and backward compatible to support USB 1.0
devices and AC97 3D Audio are also integrated.
Additionally, HS-770 is also equipped with CompactFlash
Interface type II for easily using any memory card.
The
COMMELL HS-770 is designed to meet the needs of
applications that require extraordinary computing performance,
reliability and other tough environment with low power
consumption processor, which also well supports with the
Windows 2000/XP,
|
|
BackToTop |
|
Features
|
-
CPU: Support
Intel Pentium M / Celeron M @ 400/533MHz FSB
-
Memory: 2
x 240 pin DDRII DIMMs support up to 2.0GB.
-
Chipset:
Intel® 915GME and ICH6M.
-
VGA
Interface: Intel GMA900 Technology.
-
LVDS
Interface: 24-bit interface for LVDS.
-
Enhanced
IDE: One Channels
support 2 ATAPI devices up to Ultra DMA 33/66/100
-
LAN
Interface: Dual
Gigabit LAN Ethernet ports by Marvell E8053
-
Audio: Realtek
ALC201A AC97 3D audio interface.
-
USB: 4
Hi-Speed USB 2.0 interface
-
I/O
Ports: 3 x RS232
& 1 x RS232/422/485, 1 parallel port, FDD, PS/2 keyboard and mouse
ports, 1 x SIR
-
Solid
State Disk: Onboard CompactFlash Type-II socket.
-
Digital
I/O:
Supports 8 bit digital I/O.
-
Watchdog: 256-level generates reset programmable watchdog timer
|
|
BackToTop |
|
Specifications
|
|
Form
Factor
|
Hall-size
PCI-bus CPU Card
|
|
CPU
|
Support
Intel Pentium M / Celeron M @ 400/533MHz FSB
( Intel Celeron M 4xx series can't support )
|
|
Memory
|
2
x 240 pin DDRII DIMMs to support up to 2.0GB
|
|
Chipset
|
Intel
915GME & ICH6M
|
|
Watchdog
Timer
|
256-level
generates system reset programmable watchdog timer
|
|
Real
Time Clock
|
On
chip RTC with battery backup using external li battery
|
|
Power
Management
|
ACPI
& APM, RTC alarm, Software shutdown, Wake on LAN
|
|
PCI
Enhanced IDE
|
Supports
one IDE channels & up to two IDE drivers.Supports
Ultra DMA 33/66/100
|
|
VGA
Interface
|
Intel
915GM GMCH built-in 3D VGA controller, Supports one external
DVI connector & one internal 2 x 13-pin header
|
|
LVDS
|
Supports up to
24-bit LVDS . Inverter connector on board
|
|
LAN
Interface
|
Dual
Gigabit LAN by Marvell E8053
|
|
Audio
Interface
|
Intel
ICH6M built-in AC97 3D audio controller with ALC201A
|
|
Multi-I/O
Port
|
1 Floppy connector, 1 Printer port,
3 RS232 & 1 RS232/422/485 port, 1 SIR
connector, 4 USB 2.0 . PS2 Keyboard & PS2 mouse,
|
|
Solid
State Disk
|
Onboard Compact Flash Type-II socket
|
|
Environment
|
+5V & +12V DC input from backplane.
Operation Temperature: 0 ~ 60oC (32 ~ 140oF)
|
|
|
Download
datasheet @ PDF format
 |
|
BackToTop |
|
Ordering Guide
|
|
HS-770EDXG2
|
Half-size
PCI Intel Pentium M / Celeron M with 400/533 FSB
. Intel
915GME & ICH6M , Onboard VGA & DVI .Dual Giga LAN. Support
24-bit LVDS , CompactFlash socket , USB 2.0. RS232
& RS232/422/485 ports
|
|
HS-770LDXG2
|
Same
as above, but with ICH910GMLE chipset and Intel Celeron
M
600
MHz processor.
|
|
CBP-5P4
|
4
PCI + 1 CPU PCI bus backplane
|
