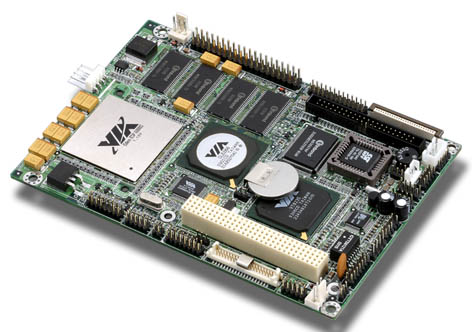

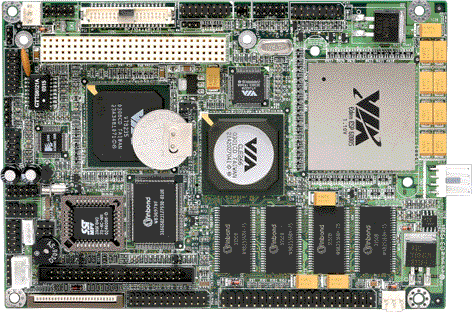

LE-362
3.5" EBX Embedded VIA Eden Miniboard Computer
with Embedded VIA Eden 667 MHz CPU, Based on VIA CLE266 ans VT8235
Chipset, Built-in MPEG-II/I decoder, Support Direct TFT Flat Panel / CRT SVGA/
TV-out, Onboard with 10/100 Mbps LAN, AC97 3D Audio, PC/104-plus, CompactFlash
USB 2.0 Interface
|
Overview
|
COMMELL's
LE-362 is an industrial embedded single board
computer based on VIA Eden compliant
architecture for the industrial embedded computers.
With
VIA Eden platform and high integration, COMMELL's LE-362
offers the
value embedded computing platform for low power,
low profile,
fan free,
mobile,
gameing,
multimedia industrial applied computing applications based on industrial standard
form factor of compact 3.5" drive size miniboard. The low
power consumption and high integration make LE-362 be the ideal solution for industrial embedded applications with the features
as below.
-
Low
Power Embedded Computing Platform : based on VIA Eden
Pentium-III compliant architecture, the LE-362 offers the
667 MHz of speed at
ultra low power for embedded / fan
free computing platform.
-
Low
Profile SO-DIMM : The onboard SO-DIMM socket support up to
512 MBytes of system memory capacity for space-saving, low profile
embedded application.Onboard
optional support 128MB PC133 SDRAM.
-
TTL
Flat Panel Interface : The integrated TTL interface offers the
digital video output for flat panel with
built-in VGA controller and 8/16/32/64 MB
fram buffer shared with system memory.
-
Integrated MPEG-I/II
decoder: VIA
CLE266 and VT8235 chipset built-in MPEG-I/II decoder, specially for
gameing and
multimedia solution. Support CRT SCGA/TV-out for both NTSC and PAL
market.
-
CompactFlash
Interface : The onboard CompactFlash Type-II socket supports CFC (Compact
Flash Card) or IBM MicroDrive up to 1 GBytes of flash memory capacity.
-
All-In-One
Integrated Solution : LE-362 is an all-in-one
computing platform with integrated video, audio, 10/100Mbps
LAN, PC/104-plus and
USB 2.0 interfaces. Also support
Wake-on-LAN function.
-
Embedded
OS Support : The NS Geode platform supports the popular embedded OS including
Microsoft WinCE, embedded Linux, QNX, VxWorks and other popular embedded OS for the industrial embedded applications.
|
BackToTop |
Key Feature
|
-
Compact
embedded miniboard with 3.5" drive size, 146 x 101 mm of
dimension.
-
Embedded
low power computing platform with VIA Eden 667 MHz CPU.
-
One
So-DIMM socket support up to 512 MBytes SDRAM for embedded applications.
Onboard optional 128MB PC133 SDRAM
-
Integrated
TTL flat panel SVGA interface with 3D engine and
8/16/32/64 MB fram
buffer shared with system memory
-
Integrated MPEG-I/II
decoder support CRT SVGA /TV-out interface for both PAL and NTSC
system -
Integrated
AC97 3D audio, 10/100 Mbps
Fast Ethernet, 2xUSB 2.0 interface.
-
Embedded
PC/104-plus interface for
32-bit ISA-based PC/104-plus embedded peripheral
modules.
-
Onboard
CompactFlash socket supports CFC (Compact Flash Card) and IBM
MicroDrive up to 1 GBytes of flash memory capacity.
-
Popular
embedded OS including Microsoft WinCE, embedded Linux, VxWorks, QNX supported for industrial mainstream applications
-
Dual
voltage +5V, +12V operation.
|
BackToTop |
Specification
|
-
Form
Factor: 3.5" drive size with 146 x 101 mm (3.5" HDD size)
-
CPU:
onboard embedded VIA Eden 667 MHz CPU
-
Memory:
Onboard one 144-pin SO-DIMM socket supports additional
512 MB SDRAM. Onboard optional
128MB PC133 SDRAM
-
PCI
Enhanced IDE: Two IDE channel supports up to
4 ATAPI devices. One 44-pin IDE Port for
2.5" notebook-size HDD, slim CD/DVD-ROM/RW. One 40-pin
IDE Port for 3.5" HDD. CD/DVD-ROM/RW.
-
VGA
Interface: Built-in VGA controller with
3D engine and 8/16/32/64 MB of
fram buffer shared with system memory.
Integrated MPEG-I/II decoder support CRT SVGA/TV-out for both NTSC and PAL
system.
-
Flat
Panel Interface: Integrated TTL interface for TFT
display.
-
LAN
Interface: 10/100BASE-Tx Fast Ethernet interface,
Support Wake-On-LAN function.
-
Audio
Interface: AC97 3D audio interface
-
Multiple
I/O Ports: 1 COM, 1 Parallel and 2 USB
2.0, 1 FPC connector for slim floppy, 1 IrDA, 1 fro PS/2 keyboard and
mouse ports.
-
SSD:
onboard CompactFlash socket supports CFC (Compact Flash Card) and IBM
MicroDrive up to 1 GBytes of flash memory capacity.
-
Expansible
Interface: one 32-bit ISA-based PC/104-plus
interface
-
Power Requirement: Dual
voltage +5V, +12V operation.
|
Download
datasheet @ PDF format
|
BackToTop |
Ordering Guide
|
LE-362VL-P
|
3.5" Embedded VIA Eden 667MHz CPU Miniboard, Integrated SVGA, TTL TFT LCD,
TV-out, 3D Audio, LAN, USB 2.0, CFC and PC/104-plus Interfaces
|
LE-362VL-128 |
Same as
above but with Onboard 128 MB PC-133 SDRAM |
|
(VIA Eden 400/533/800 MHz CPU for
OEM customer) |
CMB-362-128 |
Barebone System with LE-362VL-128 inside, DC-DC Module and 80W AC Adapter
|
|
