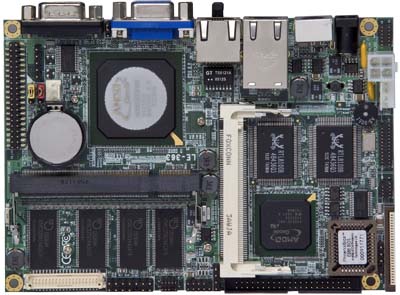

LE-363
-
( Discontinue )
3.5" Fanless Miniboard with AMD Geode GX533 processor,
Dual 10/100 Mbps LAN,18/24-bit TTL/LVDS LCD Interface.
AC97 Audio, Compact Flash & PCMCIA socket, USB, COM.
Mini-PCI , 8-bit GPIO, IrDA, DC 12V
|
Overview
|
|
COMMELL's
LE-363 is an industrial embedded single board
computer based on AMD Geode GX533 platform, provides the
400 MHz of
computing capacity at the low power, embedded, for the industrial embedded computers.
With
AMD Geode GX533 platform and high integration, COMMELL's
LE-363
offers the
value embedded computing platform for low power, low profile, fanless with
CPU heat sink, mobile industrial applied computing applications based on industrial standard
form factor of compact 3.5" drive size Miniboard. The low
power consumption 1.1W and high integration make LE-363 be the ideal solution for industrial embedded applications
.
|
|
BackToTop |
Key Feature
|
-
Compact
embedded Miniboard with 3.5" drive size, 146 x 101 mm of
dimension.
-
Embedded
low power (1.1w) , Fanless computing platform with AMD Geode GX533
processor.
-
Optional
onboard 128MB DDR Memory and One DDR SO-DIMM socket support up to 512
MB .
-
Integrated
18/24-bit TTL/LVDS (single channel) interface
-
Integrated
AC97 audio, Dual 10/100 Mbps
Fast Ethernet interface.
-
Mini-PCI & PCMCIA slot interface .
-
Onboard
CompactFlash socket supports CFC type-I.
-
DC
+12V Input.
|
|
BackToTop |
Specification
|
-
Form
Factor: 3.5" Fanless Embedded Miniboard .
-
CPU:
Onboard AMD Geode GX533 processor .
-
Memory:
Optional onboard 128MB DDR Memory and 1 x 200-pin DDR SO-DIMM socket supports up to 512
MB.
-
Chipset
: AMD Geode CS5535 .
-
Real
Time Clock : Chipset Integrated RTC with lithium battery .
-
Watchdog
Timer : System reset programmable watchdog timer with 1 ~ 255 sec./min
of timeout value .
-
Power
Management : ACPI 1.0 version and APM version 1.2 compliant .
-
PCI
Enhanced IDE: One UDMA33 IDE interface supports up to 2 ATAPI devices. Onboard 1 x
44-pin IDE connector .
-
VGA
Interface: AMD Geode GX533 built-in VGA controller with 2D engine .
-
LCD
Interface: 18/24-bit TTL/LVDS (single channel) Interface .
-
LAN
Interface: 2 x Realtek RTL8100B Controller.
-
Audio
Interface: Realtek ALC201A AC97 Codec.
-
Multi-I/O Ports: 2 x RJ45 LAN ports,
1 x DB15 VGA port and 1 x PS/2 port, 2 x RS232 port,2 x USB 1.1 ports, 1 x LPT,
1 x IrDA, 1 x FDD, 1 x DC Jack .
-
External
Audio Port: Line -out , Line-in and MIC-in .
-
Solid
States Disk : Compact Flash connector Type I .
-
Extended
Interface: 1 x Mini-PCI & PCMCIA slot interface .
-
Power
Requirement : DC 12V input .1 x DC jack or onboard 4-pin 12V DC connector .
-
Board
Dimension : 146 mm x 101 mm (LxW)
|
|
Download
datasheet @ PDF format
|
|
BackToTop |
Ordering Guide
|
|
|
|
LE-363-P |
3.5" Geode Miniboard with Embedded AMD GX533 processor, 2 x LAN,
TTL/LVDS Interface, Audio, Mini-PCI, PCMCIA and CF Interface.
|
|
LE-363-128
|
Same
as LE-363-P but with onboard 128 MB memory
|
|
CMB-363-128 |
LE-363-128
MB , Chassis and 12V/80W adapter |
|
