LE-366


3.5" Miniboard based on AMD LX800 & CS5536, 1.0 GB DDR DIMM &
Giga LAN , 4 x USB2.0 , 2 x COM, GPIO, LVDS Interface, 8-bit GPIO ,
Mini-PCI socket, CompactFlash socket, DC 12V input.


-
Overview

-
Feature

-
Specification

-

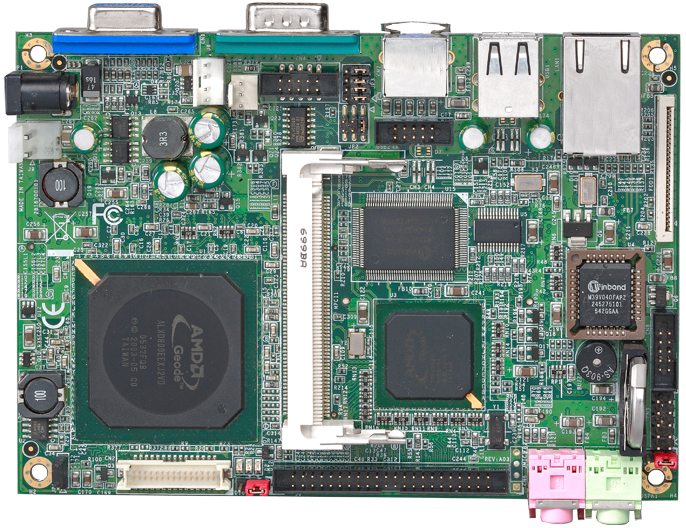

Product Image

-
Ordering Guide

-
Datasheet (PDF format)

-
Technical Document

Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial embedded SBC, introduced the 3.5" SBC - LE-366 with the energy-saving 0.9 watt AMD Geode LX 800 ( 500MHz) processor, delivers the most performance per watt in the industry today, the system memory with one 200-pin SO-DIMM socket supports up to 1 GB DDR SDRAM. Coupled with the AMD Geode CS5536, offers a complete set of features that can deliver full desktop functionality to embedded and portable devices.

Besides the most performance per watt, the LE-366 3.5" miniboard includes integrated AC97 Audio, hard disk drive (ATA-6), 4 x USB 2.0, Giga LAN and Two serial interface. For graphic, CRT (SXGA), LCD (UXGA) are supported.18-bit single channel LVDS connector with 3.3V/5V supply,  the other features come with PS/2 keyboard, mouse, silm FDD, and GPIO port. Also integrated Mini-PCI slot, 1 x Mini-PCI slots uses Mini-PCI add-on card for easily using any wireless card or other add-on cards. Additionally, LE-366 is equipped with CompactFalsh Interface for easily using any memory card.

LE-366 provides versatile applications for entertainment, business, education, and embedded markets. Software support is offered for all Windows and Linux based applications.
