LE-370
Intel Pentium / Celeron M processor, Intel 852GME & ICH4 Chipset.
24-bit LVDS Interface, fast LAN , Compact Flash socket interface.
USB 2.0, RS232 ports , Mini-PCI interface
|
Overview
|
COMMELL's

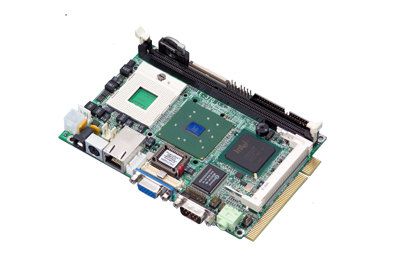

LE-370 is 3.5"
Embedded Minboard based on Intel Pentium M /
Celeron M CPU ,With
Intel 852GME & ICH4 Chipset. LE-370 support DDR
266/333 SDRAM up to 1GB,
Intel
852GME built-in Intel Extreme Graphic Technology.
24-bit
Dual channel LVDS interface and onboard 5-pin LCD
inverter connector , CF socket . Intel
fast LAN , Internal USB 2.0 and RS232 ports.Mini-PCI
interface.
|
BackToTop |
Key Feature
|
-
Compact
embedded miniboard with 3.5" drive size, 146 x 101 mm of
dimension.
-
Intel
Pentium M / Celeron M processor . FSB 400/533MHz.
-
Intel
852GME built-in Intel Extreme Graphic Technology.
-
1
x 184-pin DDR 266/333 SDRAM up to 1GB .(ECC memory supported)
-
24-bit
LVDS interface and 64 MB video memory
-
Integrated
AC97 audio, One 10/100 Mbps
Fast Ethernet interface.
-
GPIO
Interface and IDE1 support DiskOnModule with +5V power supply.
-
Extended
PCI Interface through optional riser card up to 2 devices.
-
1
x Mini-PCI slot.2 x USB 2.0. 2 x COM.
-
Onboard
CompactFlash socket supports CFC (Compact Flash Card)
-
DC
+12V Input.
|
BackToTop |
Specification
|
-
Form
Factor: 3.5" Embeded miniboard
-
CPU:
Intel Pentium M / Celeron M processor.
( Intel Celeron M 4xx series can't support )
-
Memory:
1
x 184-pin DDR 266/333 SDRAM up to 1GB .(ECC memory supported)
-
Chipset
: Intel 82852GME & ICH4
-
Real
Time Clock : Chipset Integrated RTC with onboard lithium battery
-
Watchdog
Timer : Generates a system reset with internal timer for 1min ~ 255min
-
Power
Management : ACPI 1.0 compliant, supports power saving mode with ATX PSU
-
PCI
Enhanced IDE: One ATA100 IDE channel supports up to 2 ATAPI devices.Onboard 1 x
44-pin IDE connectors
-
VGA
Interface: Intel 852GME built-in Intel Extreme Technology
-
LCD
Interface: 24-bit LVDS interface up to 1600 x 1200 of resolution.Onboard 5-pin
LCD inverter connector.
-
LAN
Interface: 1 x Intel 82562ET 10/100Mbps PHY.
-
Audio
Interface: Realtek ALC201A AC97 Codec.
-
Solid
State Disk: IDE1 supports DiskOnModule with + 5V power supply.1 x CF socket.
-
Internal
I/O Ports: 1x IrDA port, 1x Parallel and 2 x USB ports.1 x Serial Port, 1x
silm FDD ,1 x VGA output header.
-
External
I/O Ports: 1 x RJ45 LAN ports, 1x DB15 VGA port and 1x PS/2 port, 1x RS232 port,
1 x Phone jack. 1x
DC Jack
-
Extended
Interface: 1 x Mini-PCI slot. Extended PCI interface through
optional riser card up to 2 devices.
-
Power
Requirement : DC 12V input
-
Board
Dimension : 146 mm x 101 mm (L xW)
|
Download
datasheet @ PDF format
|
BackToTop |
Ordering Guide
|
LE-370 |
3.5" Intel Pentium M / Celeron M processor with Intel 852GME & ICH4 Chipset
24-bit LVDS Interface, Audio, LAN, Mini-PCI and CFC Interfaces
|
LE-370PM14 |
Same
as LE-370 but with Intel Pentium M LV 1.4
GHz CPU onboard |
PCI-3P1 |
PCI
riser card support right side one slot |
PCI-3P2 |
PCI
riser card support left side two slot |
CMB-370PM14 |
Fanless
barebone with LE-370PM14 & SPD-080-12 |
SPD-080-12 |
80W
DC adpter |
MP-323 |
Mini-PCI
IEEE1394A add on Crad |
|
BackToTop |
