LE-376
    3.5" embedded board with Intel® Atom™ dual-core Solution

Intel® Atom™ Processor, Onboard LVDS, VGA, Giga LAN, USB2.0, HD Audio,
SATA, CF socket, PCIE Mini card & Mini-PCI socket, DC 9V ~ 24V input

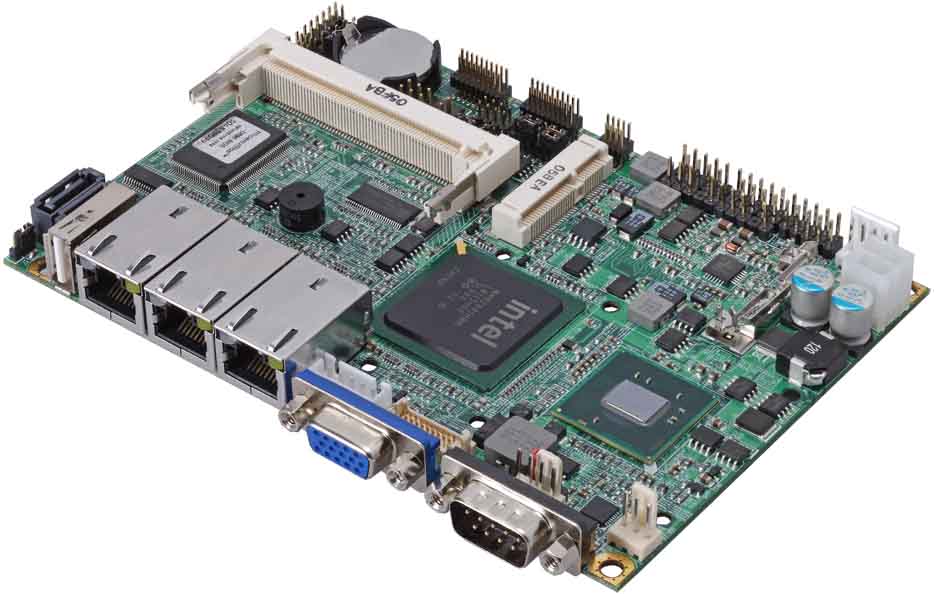

view larger image

-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
Overview

LE-376 consists of the Intel ATOM N450/ D410/ D510 and ICH8M, Graphic Processing Unit features power-efficient 32-bit 3D graphics core based on Intel GMA 3150 architecture, video capability with up to 384MB of shared graphics memory, delivers sophisticated graphics for large display applications and with Dual display types such as VGA+LVDS, Enables smoother playback for MPEG-2 codec, a standard video compression format used on Blu-ray, DVDs, broadcasting, and broadband content.

BackToTop



Key Feature
  • CPU: Intel® Atom™ D510 & D525 dual-core  /  N450 & D410 single-core processor.

  • Chipset: Intel® ICH8M Chipset.

  • Memory1 x DDR2 SO-DIMM up to 2.0 GB or 4.0 GB.

  • VGA Interface: Intel® integrated extreme GMA 3150 technology.

  • LVDS interface: Onboard 18-bit single channel LVDS.

  • Serial ATA: Support 2 x SATAII interface with 300MB/s transfer rate

  • Solid State Disk: 1 x Compact Flash Type II socket.

  • Audio: Intel® ICH8M integrated with Realtek ALC888 HD Audio.

  • LAN Interface: 3 x Intel® 82583V Giga LAN.

  • Extended interface1 x PCIE mini card socket & 1 x Mini-PCI socket

  • I/O ports: 6 x RS232 Serial Ports, 5 x USB2.0 ports, 1 x VGA port, 1 x SMBUS,           1 x PS/2 keyboard and mouse ports, 3 x LAN, LVDS & Inverter, 1 x LPT

  • Power Requirement: DC 9V ~ 24V input.

BackToTop



Specification

Form Factor

3.5" embedded board

CPU

Intel® Atom™ N450, 1.66GHz, 512KB cache (LE-376G)

Intel® Atom™ D410, 1.66GHz, 512KB cache (LE-376H)

Intel® Atom™ D510, 1.66GHz, 1MB cache (LE-376A)

Intel® Atom™ D525, 1.80GHz, 1MB cache (LE-376C)

Package type : Micro-FCBGA (FCBGA559)

Memory

1 x 200-pin DDR2-667 SO-DIMM up to 2GB (LE-376G)

1 x 200-pin DDR2-667 SO-DIMM up to 4GB (LE-376H/A/C)

Support Non-ECC, unbuffered memory only

Chipset

Intel® ICH8M

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset internal timer for 1min/sec ~ 255min/sec

Power Management

ACPI 2.0 compliant, supports power saving mode

Integrated Graphics

Intel® integrated extreme GMA 3150 Technology

Video Memory

Up to 384MB shared with system memory

LVDS Interface

Chipset Integrated 18-bit single channel LVDS

Serial ATA Interface

2 x SATAII interface with 300MB/s transfer rate

Solid State Disk

1 x Compact Flash Type-II

Audio Interface

Intel® ICH8M integrated with Realtek ALC888 HD Codec

LAN Interface

3 x Intel® 82583V Gigabit Ethernet controller

Expansion Interface

1 x PCIe mini card & 1 x Mini-PCI socket

Internal I/O Port

1 x Audio, 4 x USB2.0, 1 x LVDS, 1 x LCD Inverter, 1 x LPT

1 x RS232/4224/5, 4 x RS232, 1 x SMBUS, 1 x IrDA

External I/O Port

1 x USB, 3 x RJ45 LAN, 1 x DB15 VGA, 1 x RS232

Power Requirement

DC 9V ~ 24V input

Board Dimension

146mm x 101mm

Temperature

Operating within 0~60 centigrade

Storage within -20~85 centigrade

Download Datasheet @ PDF format

BackToTop

Ordering Guide

LE-376G

Support Intel® Atom N450 processor with onboard VGA, 18-bit LVDS, Audio,

Giga LAN, USB2.0, SATA, CF, PCIE mini card

LE-376H

Support Intel® Atom D410 processor with onboard VGA, 18-bit LVDS, Audio,

Giga LAN, USB2.0, SATA, CF, PCIE mini card

LE-376A

Support Intel® Atom D510 processor with onboard VGA, 18-bit LVDS, Audio,

Giga LAN, USB2.0, SATA, CF, PCIE mini card

LE-376C

Support Intel® Atom D525 processor with onboard VGA, 18-bit LVDS, Audio,

Giga LAN, USB2.0, SATA, CF, PCIE mini card
