LS-570

5.25" based on Intel Core Duo / Core Solo processor, 3 GB DDRII,
4 x Intel Gigabit LAN , LVDS / DVI interface, 6 x USB 2.0, 4 x COM
Mini-PCI & Compactflash socket, ATX or 8 ~ 24 DC input

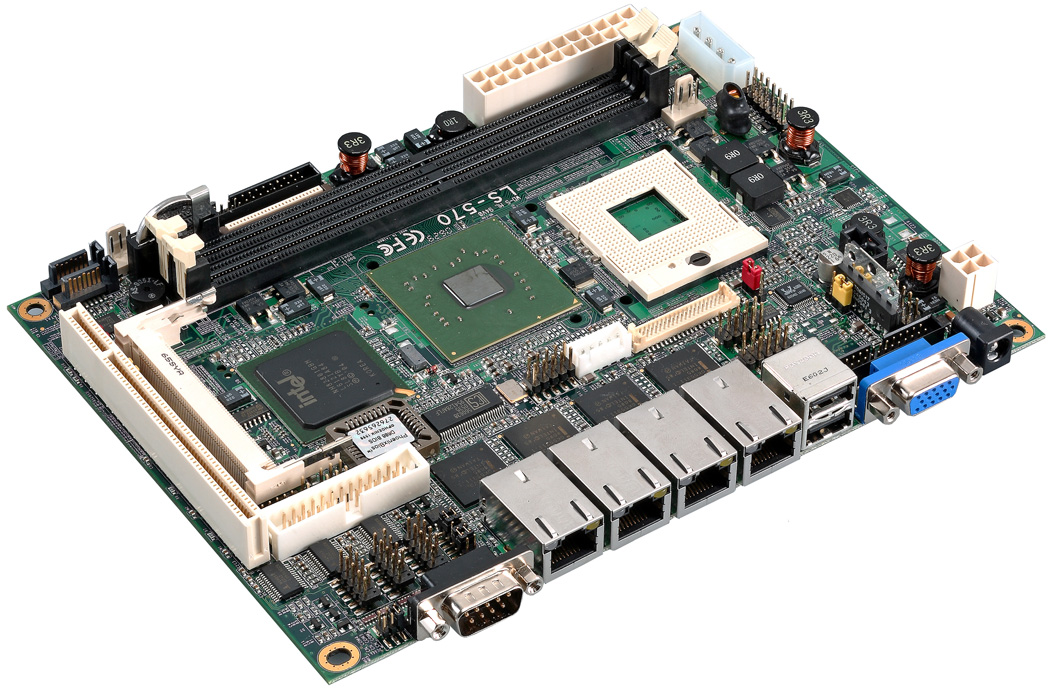

View Large image
-

Overview

-

Feature

-

Specification

- Product Image
- Ordering Guide
- Datasheet (PDF Format)
- Technical Document

  Overview

COMMELL's 5.25" Embedded Miniboard - LE-570 meets the requirements for enterprise and residential network applications.this single board support Intel Core Duo/Core Solo processor @ FSB 533/667MHz,it is enhanced to handle today`s demanding software applications-such as graphics-intensive games or serious number-crunching programs.

BackToTop



  Key Feature

  • Intel CoreTM Duo / Core 2 Duo Merom with Socket M @  533 / 677 MHz FSB.

  • DDRII 533/667 MHz SDRAM up to 3.0 GB.

  • Integrated GMA 950 ( Graphic Media Accelerator ) technology.

  • 4 x Intel Gigabit LAN interface.

  • LVDS , DVI and VGA mult-display.

  • 4 serial and 1 parallel ports for POS / multiple I/O application.

  • Expansible Interface: One PCI expansive slot supports up to 2 PCI add-on cards via an additional riser card and one Mini-PCI socket.

  • Integrated CompactFlash interface supports CFC (Compact Flash Card)

  • ATX or Full Range 8 ~ 24V DC input.

BackToTop



  Specification
Form Factor 5.25 " Embedded Miniboard
CPU

Intel CoreTM Duo / Core Solo /  Core 2 Duo Merom with Socket M @ 533 / 667 MHz FSB
Chipset Intel 945GME & ICH7M
Memory

2 x DDR2 533/667 MHz SDRAM up to 3.0 GB
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset  internal timer for 1min ~ 255 min
Power Management ACPI 1.0 compliant, supports power saving mode
PCI Enhanced IDE

One 44-pin Ultra DMA33 IDE interface supports up to 2 ATAPI devices.
VGA Interface

Intel 945GME integrated GMA (Graphic Media Accelerator) 950 Technology
Video Memory Up to 224MB shared with system memory
LVDS interface Onboard 18-bit Dual channel LVDS connector .
Serial ATA interface 2 x Serial ATA interfaces with 150MB/s transfer rate
LAN Interface

4 x Intel 82573L Gigabit Ethernet  controller
Audio Intel ICH7-M integrated with Realtek ALC655 5.1 CH AC97 Codec
GPIO Onboard programmable 8-bit Digital I/O interface
Extend Interface 1 x PCI slot ,1 x Min-PCI scoket.
Internal I/O Ports

1 x PS2, 1 x IrDA, 1 x GPIO, 1 x AUDIO, 1 x CDIN, 1 x LVDS, 4 x USB2.0 , 1 x DVI, 1 x LCD Inverter, 1 x FDD, 1 x LPT,1 x 44-pin IDE, 2 x RS232, 1 x RS232/RS422/485
External I/O Ports

1 x COM, 1 x VGA, 4 x RJ45, 2 x USB2.0, 1 x 2-pin power jack
Solid State Disk

Onboard 44-pin IDE support DOM, CF on solder side .
Power Requirement Standard 24-pin ATX power supply (20-pin is compatible)           Or 8~24V full range DC Input
Temperature

Operating within 0~60 centigrade ,Storage within -20~85 centigrade
Dimension (L x W ) 146 x 203 mm





Download datasheet @ PDF format

BackToTop



  Ordering Guide
　
LS-570E Support Intel Core Duo/Solo processor with onboard VGA, DVI, LVDS, Audio, SATA, Giga LAN, USB2.0, LPT, CF, GPIO, Mini PCI, FDD
CMB-570E Barebone system for LS-570E w/ 12V/80W adapter
