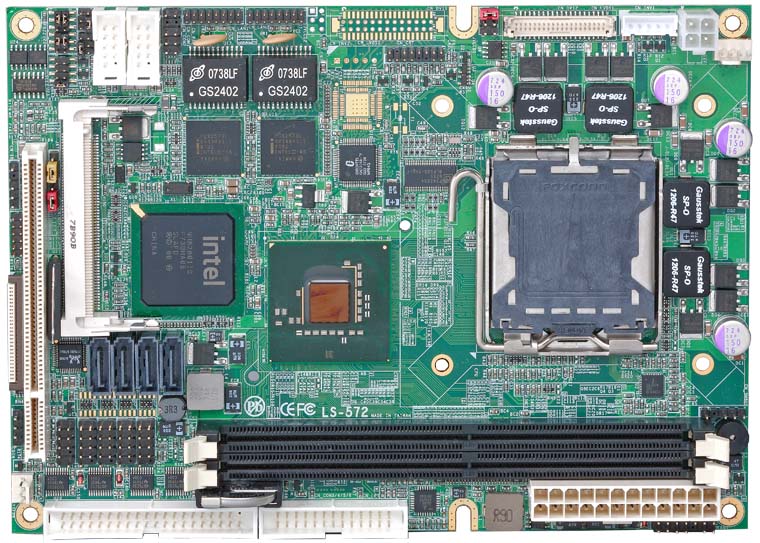

5.25" SBC support Intel® CoreTM 2 Quad / CoreTM 2 Duo Processor
Intel® CoreTM 2 Quad / CoreTM 2 Duo processor with Intel® Q35 Express chipset
4.0 GB DDR2 , 2 x Gigabit Ethernet ports , 8 x USB 2.0 , 6 x COM , HD Audio ,
4 x SATAII with RAID , PCI & Mini-PCI socket , 2 x DVI / LVDS interface .
|
Overview
|
|
Taiwan
Commate Computer Inc.(COMMELL), the worldwide
leader of Industrial embedded SBC, introduced
the 5.25" SBC - LS-572 based
on the Intel® Q35 Express Chipset, supports Intel® CoreTM
2 Quad processors or Intel® CoreTM
2 Duo processors up to 1333/1066/800 MHz system
bus in the LGA775 package, and with support for
next-generation 45nm Intel® CoreTM
2 processor family. The board delivers
innovative capabilities and usages for digital home
consumers and new levels of 3D and media performance
while enbling lower power and quiter systems.
The
LS-572 5.25" mainboard features intel®`s low-power
graphics core with Intel® GMA3100. The new core allows
for reduced power and noise without sacrificing the
performance business users need. It is ideal for
business users seeking support for advanced operating
systems like Windows Vista.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel®
CoreTM
2
Quad / CoreTM
2
Duo Desktop with LGA775 @ 800/1066/1333 MHz FSB.
-
Memory: 2 x 240-pin DDR2 667/800MHz up to
4.0GB.
-
Chipset:
Intel® Q35 Express chipset & ICH9DO
-
VGA
Interface: built-in Intel® extreme GMA 3100 technology.
-
DVI
or LVDS Interface : Dual DVI or single LVDS interface .
-
Serial ATA:
4
x Serial ATA II interface . Support RAID 0 / 1 / 5 / 10 .
-
LAN
Interface: 2
x Intel® 82573L Gigabit Ethernet Controller.
-
Audio: Realtek
ALC888 High Definition Audio.
-
GPIO
interface: Onboard
8-bit Digital I/O interface.
-
Extended
interface: 1 x
PCI slot & 1 x Mini-PCI socket
-
I/O
ports:
8 x USB 2.0 , 1 x RS232/422/485 & 5 x RS232 , IrDA , LPT
|
|
BackToTop |
Specification
|
|
Form Factor |
5.25" SBC (203 x
146 mm) |
|
Processor |
Intel®
CoreTM
2 Quad /
CoreTM
2
Duo Desktop
LGA775
800/1066/1333 MHz FSB. |
|
Memory |
2
x DDR2 667/800
MHz support up to
4.0 GB |
|
Chipset |
Intel®
Q35 Express Chipset & ICH9DO |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
|
Watchdog
Timer |
Generates
a system reset internal
timer for 1Min/Sec ~ 255 Min/Sec
|
|
Power
Management |
ACPI
1.0 compliant, supports power saving mode ATX PSU
|
|
VGA Interface |
Intel®
Q35 integrated GMA 3100 Technology |
|
DVI or LVDS Interface |
Dual DVI or single LVDS interface |
|
Video
Memory |
Up to
384MB shared with system memory |
|
Serial ATA
Interface |
4
x Serial ATA II Interface with 300MB/s transfer rate
Support
RAID 0,1,5,10 function
|
|
Audio
Interface |
Intel® ICH9DO integrated with Realtek ALC888 HD Audio
|
|
LAN Interface |
2
x Intel® 82573L Gigabit Ethernet Controller |
|
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
|
Extend
Interface |
1
x PCI slot & 1
x Min-PCI socket
|
|
I/O
Port |
2
x RJ45 LAN
ports , 1x DB15 VGA port , 1x PS/2 Keyboard / Mouse ports , 1 x
RS232/422/485 & 5 x RS232 Serial ports
, 8 x USB 2.0 ports , 1 x IrDA , HD Audio ports , 1 x SMBUS
DVI
or LVDS interface , 1 x LPT , 1 x slim FDD , 1 x GPIO
|
|
Power Requirement |
Standard
24-pin ATX power supply and P4 4-pin 12V
.
( 20-pin is compatible) |
|
Board Dimension
|
203mm x 146 mm (L x
W) |
|
Operation
Temperature |
0 ~
60oC (32 ~ 140oF)
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
LS-572D
|
Onboard
VGA, 2 x Intel Giga LAN, 8 x USB 2.0, PCI & Mini-PCI,
FDD,
HD
Audio, 4 x SATA, 6 x COM, 1 x DVI
|
|
LS-572D2
|
Onboard
VGA , 2 x Intel Giga LAN , 8 x USB 2.0 , PCI & Mini-PCI
,
FDD,
HD
Audio , 4 x SATA , 6 x COM , 2
x DVI
|
|
LS-572X
|
Onboard
VGA , 2 x Intel Giga LAN , 8 x USB 2.0 , PCI & Mini-PCI
,
FDD,
HD
Audio , 4 x SATA , 6 x COM , 1 x LVDS
|
|
OHS-1U775S
|
Low Profile 1U Multi-Core CPU Cooler (LGA775)
|
|
MP-6421
|
Mini-PCI
card support 1 x 44-pin IDE, 2 x SATA, 1 x CF socket
|
