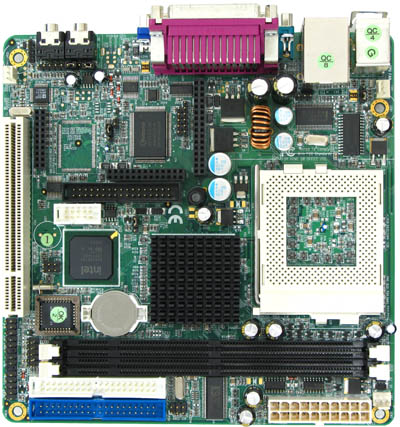

LV-603
Mini-ITX Socket 370 Pentium-III / Celeron Motherboard
with VGA, LAN, Audio, IEEE 1394 and Optional TV-out Interfaces
|
Overview
|
COMMELL's
LV-603 SBC (Single Board Computer) is an all-in-one industrial standard Mini-ITX motherboard based on
170 x 170 mm (L x W) of compact dimension with Intel 815E chipset, supports Intel
Pentium-III, Celeron and VIA C3 CPUs up to 1.3 GHz at 133 MHz of FSB. With 512 MB
of PC133 SDRAM, UltraATA/100 IDE, integrated Intel 815E GMCH built-in 3D SVGA,
Intel PRO/100+ LAN, AC97 audio and Lucent/Agere IEEE 1394 interfaces, the LV-603 provides the high
reliability solution with high performance and integration. With these features,
LV-603 should be the advanced solution for you in :
-
Industrial
Embedded Applied Mini-Server, Transaction Station, POS/POI, Kiosk, ATM, Web
Payphone and Terminal Platform
-
3D
Video Game Machine, STB (Set-Top-Box), Multimedia Station and Terminal,
Book-size PC, Thin Client, Internet Computer, WebPAD,
-
Industrial
Panel PC, Portable Workstation, Panel-mount / Wall-mount / Ceil-mount
Workstation
-
Industrial
Applied Instruments Based on 1394, Network and Multi-media Functions
|
BackToTop |
Feature
|
-
Ultra
compact board size with industrial
standard Mini-ITX form factor at 170 x 170 mm or 6.7 x 6.7 inches of dimension
-
Powerful
computing capacity with Intel Socket 370 Pentium-III / Celeron CPU up to 1.3 GHz
at 133 MHz of FSB (Support Intel Tualatin CPU)
-
High
memory capacity up to 512 MB PC133 SDRAM
-
Intel
815E GMCH built-in 3D/2D SVGA interface with dynamic video memory
-
Advanced
UltraATA/100 IDE interface to enhance the system performance
-
Integrated
Lucent/Agere IEEE 1394 interface supports 100/200/400 Mbps of data transfer rate
-
Integrated
Intel PRO/100+ Fast Ethernet interface
-
Integrated
AC'97 3D Audio interface
-
Integrated
Fast IR and four USB ports for additional IR or USB devices or adapters
-
Optional
TV-our interface with AV/S-video output
-
Popular
OS supported for industrial and commercial mainstream applications
|
BackToTop |
Specification
|
-
Form
Factor: Mini-ITX with 170 x 170 mm or 6.7 x 6.7 inches of dimension
-
Socket
370 supports Intel Pentium-III, Celeron, VIA C3 CPUs up to 1.3 GHz @ FSB 66/100/133 MHz,
Intel FC-PGA2 Tualatin, FC-PGA Coppermine, PPGA CPU supported
-
Chipset:
Intel 815E / ICH2
-
DRAM:
512 MB PC100/133 SDRAM
-
PCI
Enhanced IDE: dual Channels support 4 ATAPI devices up to UltraATA/100 with
100Mbps of data transfer rate
-
I/O
Ports: two RS232C serial port, parallel port, 4 USB, FDD, IrDA, PS/2 keyboard
and mouse ports
-
VGA
Interface: Intel 815E GMCH built-in 3D SVGA with dynamic video memory up to 64
MB shared with system memory
-
Audio
Interface: AC97
3D 3D audio interfaces
-
Optional
AV / S-video TV-out interfaces
-
LAN
Interface: Intel PRO/100+ 10/100 Mbps Fast Ethernet
-
1394
Interface: Lucent/Agere FW323 supports 100/200/400 Mbps of data transfer rate
-
Expansive
Interface: one PCI bus interface
|
Download
datasheet @ pdf format
|
BackToTop |
Ordering Guide
|
|
LV-603B
|
Mini-ITX Socket 370 Pentium-III / Celeron Motherboard (Intel 815E/ICH2)
with VGA, Audio, LAN and IEEE 1394 Interfaces
|
|
|
LV-603C
|
Same as LV-603B but without IEEE 1394 Interface
|
|
|
BackToTop |
