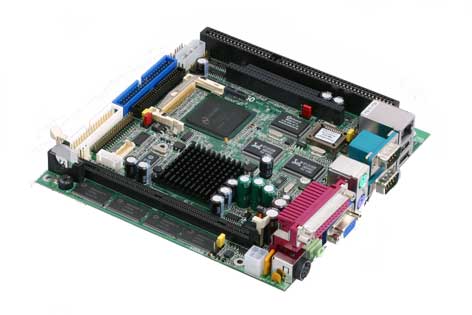

LV-650 (Discontinue)


AMD Geode GX1 processor-based Mini-ITX running at 300+ MHz
Low Power CPU and CS5530A,Onboard 128MB SDRAM,
LVDS/TTL Flat Panel /CRT SVGA, AC97 3D Audio ,
10/100 Mbps LAN, PC/104, CompactFlash Interface,
ISA Slot, Serial and USB Ports, DC 12V be used


-
Overview

-
Feature

-
Specification

-
Product Image

-
Ordering Guide

-
Datasheet (PDF format)

-
Technical Document

Overview

COMMELLís LV-650 Mini-ITX based on AMD Geode GX1 and CS5530A , provides the 300+ MHz of computing capacity at the Ultra-low power, embedded, x86-compliant architecture for the industrial embedded computers. With AMD Geode GX1 platform and high integration, COMMELL's LV-650 offers the value embedded computing platform for low power, low profile, fan free, mobile industrial applied computing applications based on industrial standard form factor of Mini-ITX. The low power consumption and high integration make LV-650 be the ideal solution for industrial embedded applications with the features as below.

wLow Power Embedded Computing Platform : The  AMD GX1 processor provides the lowest power consumption for any x86 processor at this performance level with a typical average power consumption ranging from 0.8 to 1.4 watts. The enhanced thermal characteristics allow for creative applications and configurations that take advantage of this processor's fanless capabilities. This helps enable maximum flexibility in system design.

wOnboard 64 MBytes SDRAM : The onboard embedded SDRAM let LV-650 be the low profile solution with space-/slot-saving for system configuration. It also makes LV-650 be the rugged and vibration-proof solution with embedded CPU and memory.

wLVDS/TTL Flat Panel Interface : The integrated LVDS/TTL interface offers the digital video output for flat panel with built-in VGA controller and 4 MB video memory.

wAll-In-One Integrated Solution : LV-650 is an all-in-one computing platform with integrated video, audio, LAN, Compactflash Socket, PC/104,  Serial Port and USB interfaces, is requiring 12VDC only.



BackToTop

Key Feature
  • Embedded low power computing platform with NS Geode GX1 300 MHz CPU

  • Onboard 64/128 MB SDRAM for embedded / anti-vibration / low profile embedded applications

  • Standard Mini-ITX PC industrial embedded systems

  • Integrated LVDS/TTL flat panel SVGA interface with 2D engine and 4 MB video memory

  • Integrated AC97 3D audio, 2 x  10/100 Mbps Fast Ethernet interface.

  • Embedded PC/104 interface for 8/16-bit ISA-based PC/104 embedded peripheral modules.

  • Onboard  CompactFlash Type-II socket.



BackToTop

Specification
  • Form Factor: 17 x 17 cm Mini-ITX

  • CPU: onboard embedded AMD Geode GX1 300 MHz CPU   .

  •  Memory: Onboard optional 128MB SDRAM and one 168-pin DIMM socket supports additional 256 MB SDRAM.

  •  VGA Interface: AMD Geode CS5530A built-in VGA controller with 2D engine and 4 MB of video memory shared with system.

  •  Flat Panel Interface: Integrated 18-bit LVDS and TTL panel interface for TFT display.

  • Enhanced IDE: Dual Channels support 4 ATAPI devices up to Ultra DMA/33 with 33 Mbps of data transfer rate. One 40-pin and one 44-pin IDE Port for 2.5" notebook-size HDD, slim CD-ROM/DVD/CD-RW and cable free DOM (DiskOnModule).

  • Expansive Slots: 1 x ISA Slot , PC/104 Connector.

  • LAN Interface: 2 x 10/100BASE-Tx Fast Ethernet

  • Audio: Realtek ALC201A  audio interface.

  • USB: 2 x USB interface .

  • I/O Ports: 2 serial ports, 1 parallel port, IrDA, FDD, PS/2 keyboard and mouse ports.

  • Solid State Disk: On board CompactFlash Type-II socket.

  • Digital I/O: Supports 8 bit In/8 bit out digital I/O.

  • Watchdog: Software configurable, 1s.....255s / 1ms.....255 ms.

  • Power Supply: +12V only supply be used.



Download datasheet @ PDF format

BackToTop

Ordering Guide

LV-650
Embedded Geode CPU Mini-ITX mainboard with Embedded AMD GX1-300 MHz CPU, LVDS/TTL/CRT SVGA, Audio, LAN, PC/104 and CF Interfaces


LV-650-64
Same as above but with 64MB SDRAM on board.


LV-650-128
Same as above but with 128MB SDRAM on board

 SPD-080-12A
 12V,80W AC-DC Adapter with Mini DIN output
