AMD Geode LX800 processor-based Mini-ITX running at 500+ MHz
Mini-ITX Motherboard based on AMD LX800 , CS5536, 1 GB DDR DIMM &
onboard 256MB DDR optional, IDE, AC97 Audio , Giga LAN , 4 x USB2.0 ,
2 x COM, GPIO,LVDS & TTL LCD Interface , IEEE1394 , Printer port ,
Mini-PCI & PCI socket, CF, DC 8~24V or ATX P/S

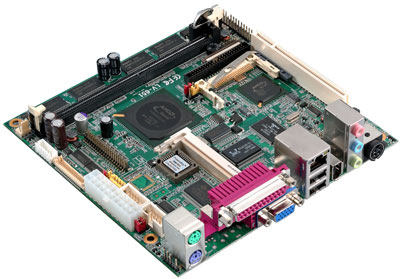

Product Image

Ordering Guide

Datasheet (PDF format)

Technical Document


Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Mini-ITX mainboard, introduced the  mobile Mini-ITX motherboard LV-651 with the energy-saving 0.9 watt AMD Geode LX 800 500MHz processor, delivers the most performance per watt in the industry today, the system memory with one 184-pin DIMM socket supports up to 1 GB DDR SDRAM and onboard optional 256MB DDR SDRAM, Coupled with the AMD Geode CS5536, offers a complete set of features that can deliver full desktop functionality to embedded and portable devices.

Besides the most performance per watt, the LV-651 Mini-ITX mainboard includes integrated AC97 Audio, hard disk drive (ATA-6), 4 x USB 2.0, IEEE1394, Giga LAN and Two serial interface (1 x RS232/ 1 x RS232/RS422/485). For graphic, CRT (SXGA), LCD (UXGA) are supported. the other features come with PS/2 keyboard, mouse, parallel port, FDD, and GPIO port. Also integrated PCI and Mini-PCI slot, 1 x Mini-PCI slots uses Mini-PCI add-on card for easily using any wireless card or other add-on cards. Additionally, LV-651 is equipped with  CompactFalsh Interface for easily using any memory card.

LV-651 provides versatile applications for entertainment, business, education, and embedded markets. Software support is offered for all Windows and Linux based applications.



Key Feature
  • CPU: AMD LX 800, up to 500MHz.

  • Memory: 1 x 184 pin DDR 266/333/400MHz up to 1.0GB and onboard optional 256MB DDR SDRAM.

  • Chipset: AMD LX800 and CS5536.

  • VGA Interface: AMD Geode LX 800 with integrated graphics engine.

  • LVDS Interface: 18/24-bit single channel LVDS interface.

  • TTL Interface: 24-bit TTL interface.

  • LAN InterfaceRealtek 8110S Giga LAN

  • PCI Enhanced IDEUltraATA100 IDE up to 2 ATAPI .

  • AudioRealtek ALC203 AC97 Codec.

  • I/O Ports: 1 x RS232 and 1 x RS232/422/485 Serial Ports, 1 x Parallel port, 4 x USB2.0 ports, 1 x DB15 VGA port, 1 x IEEE1394, 1 x  PS/2 keyboard and mouse ports.

  • Extended Interface: One PCI slot, one Mini-PCI socket. ( the second PCI Bus master of PCI slot is shared with Mini-PCI )

  • SSD: One CompactFlash Type I/II socket.

  • GPIO Interface: Onboard programmable 8-bit Digital I/O interface.

  • Power supply DC 8~24V input or Standard 20-pin ATX power supply.



  • Form Factor: Mini-ITX from factor

  • CPU: Embedded AMD Geode LX800 Processor  .

  • MemoryOne 184-pin DIMM socket supports up to 1GB DDR SDRAM ,               Optional on board 256M DDR SDRAM

  • Chipset : AMD LX800 & CS5536

  • Real Time ClockChipset integrated RTC with onboard lithium battery

  • Watchdog Timer: Generates a system reset with internal timer for 1 ~ 255 sec (min)

  • VGA Interface: AMD Geode LX800 built-in high performance 2D Graphic ,          Supports CRT, 24-bit TFT LCD & 18/24-bit single channel LVDS LCD

  • PCI Enhanced IDEOne 44-pin IDE interface supports up to 2 ATAPI devices

  • Solid State Disk: IDE supports 44-Pin Disk On Module with +5V power supply,         One Compact Flash Type II

  • Audio InterfaceRealtek ALC203 AC97 Audio.

  • LAN Interface1 x Realtek RTL8110S-32 Gigabit Ethernet controller.

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface

  • Extended Interface: 1 x PCI slot, 1 x Mini-PCI socket.( the second PCI Bus master of PCI slot is shared with Mini-PCI )

  • Internal I/O Port :1 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x AUDIO, 1 x TTL, 1 x LVDS, 1 x Inverter, 1 x FDD, 1 x IrDA, 2 x USB2.0

  • External I/O Port: 1 x PS2, 1 x Audio, 1 x CRT, 1 x RJ45, 2 x USB2.0, 1 x LPT,          1 x IEEE1394, 1 x DC_IN

  • Power Requirement: Standard 20-pin ATX power supply or 8~24 full range DC input .

  • Dimension : 170mm x 170mm

  • Temperature : Operating within 0~60℃ ,Storage within -20~85


Download datasheet @ PDF format


Ordering Guide
AMD LX800 processor Mini-ITX with onboard VGA, Giga LAN, LPT, RS232 RS232,USB2.0, Audio, LCD and DDR DIMM
Same as above but with 256MB  DDR SDRAM on board
AC-DC Adapter With 12V,80W 4 Pin Mini DIN
