LV-660


Embedded VIA Eden 533 MHz CPU
VIA/Trident Blade3D SVGA with 8MB VRAM
Onboard 10/100 Mbps LAN, AC97 3D Audio
Onboard AV/S-Video TV-out Interface
IDE-based DiskOnModule SSD Interface
Compact Size @ 170 x 170 mm (L x W)


-
overview

-
Feature

-
Specification

-

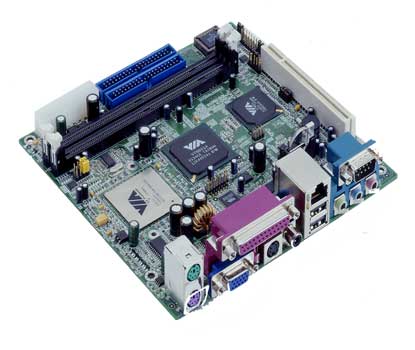

Product Image

-
Ordering Guide

-
Datasheet (PDF format)

-
Technical Document



Overview

COMMELL's LV-660 SBC (Single Board Computer) is an all-in-one industrial standard Mini-ITX motherboard based on VIA Eden platform, supports VIA Eden/C3 CPU for low power, fan free embedded application. With 1GB PC133 SDRAM, UltraATA/100 IDE, integrated Trident Blade3D SVGA, 10/100Mbps LAN, AC97 audio and AV/S-Video TV-out interfaces, the LV-660 provides the high reliability solution with high performance and integration for industrial embedded computing application. :

  • Industrial Embedded Applied Mini-Server, Transaction Station, POS/POI, Kiosk, ATM, Web Payphone and Terminal Platform

  • 3D Video Game Machine, STB (Set-Top-Box), Multimedia Station and Terminal, Book-size PC, Thin Client, Internet Computer, WebPAD,

  • Industrial Panel PC, Portable Workstation, Panel-mount / Wall-mount / Ceil-mount Workstation

  • Industrial Applied Instruments Based on 1394, Network and Multi-media Functions

BackToTop

Feature
  • Low power, fan free VIA Eden platform

  • Compact size at 170 x 170 mm of dimension, Mini-ITX form factor compliant

  • High memory capacity up to 1 GB PC133 SDRAM

  • Chipset built-in Trident Blade3D SVGA controller with 8MB shared video memory

  • Advanced UltraATA/100 IDE interface to enhance the system performance

  • Onboard 10/100 Mbps Fast Ethernet interface

  • Onboard AC'97 3D Audio interface

  • Onboard AV / S-Video TV-out interface

  • Popular OS supported for industrial and commercial mainstream applications

  • Industrial standard Mini Flex ATX form factor with 6.7 x 6.7 inches of dimension

BackToTop

Specification
  • Form Factor: Mini-ITX with 6.7 x 6.7 inches (17 x 17 cm) of dimension

  • Onboard embedded fan free VIA Eden 533 MHz CPU. Optional fan free Eden 400/800 MHz CPU for fan free application and C3 800/933 MHz CPU with onboard cooling fan for high computing capacity

  • DRAM: 1 GB PC100/133 SDRAM

  • PCI Enhanced IDE: dual Channels support 4 ATAPI devices up to UltraATA/100 with 100Mbps of data transfer rate

  • I/O Ports: 1 x  RS232C serial port, parallel port, 4 USB, IrDA, PS/2 keyboard and mouse ports

  • Multi-media Interface: Chipset built-in Trident Blade3D SVGA with 8MB shared video memory and AC97 3D audio interfaces, optional AV and S-Video TV-out interface

  • LAN Interface: 10/100 Mbps Fast Ethernet interface

  • Expansive Interface: one PCI bus interface

Download datasheet @ pdf format

BackToTop



Ordering Guide

LV-660E
Mini-ITX Embedded VIA Eden Motherboard with VIA Eden 533 MHz CPU
VGA, Audio, LAN, TV-out Interface


LV-660C

Mini-ITX Embedded with EBGA VIA C3 800 MHz CPU VGA, Audio, LAN, TV-out Interface



BackToTop
