LV-666 (P6F169)

Embedded VIA C3/Eden 1.0 / 1.2 GHz with VIA CLE 266 & VT8235,
Onboard 10/100 Mbps LAN, Audio, AV/S-Video TV-out Interface
6 x USB, 2 x IEEE 1394, LPT, 2 x COM

-

overview

-

Feature

-

Specification

-

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

Overview

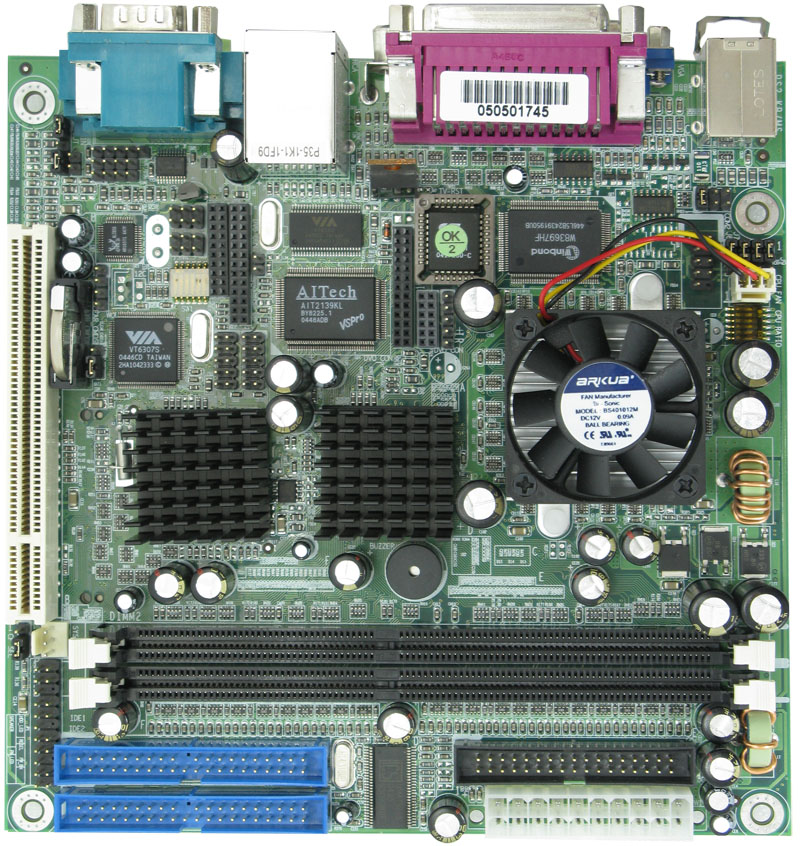

COMMELL's LV-666 SBC (Single Board Computer) is an all-in-one industrial standard Mini-ITX motherboard based on VIA  platform, supports VIA C3/Eden CPU for low power, fan free embedded application. Support DDR266 up to 2.0 GB, UltraATA/133 IDE, integrated 3D SVGA controller, 10/100Mbps LAN, AC97 audio and AV/S-Video TV-out interfaces, the LV-666 provides the high reliability solution with high performance and integration for industrial embedded computing application. :

• Industrial Embedded Applied Mini-Server, Transaction Station, POS/POI, Kiosk, ATM, Web Payphone and Terminal Platform

• 3D Video Game Machine, STB (Set-Top-Box), Multimedia Station and Terminal, Book-size PC, Thin Client, Internet Computer, WebPAD,

• Industrial Panel PC, Portable Workstation, Panel-mount / Wall-mount / Ceil-mount Workstation

• Industrial Applied Instruments Based on 1394, Network and Multi-media Functions

BackToTop

Feature

• Low power VIA C3/Eden platform

• Compact size at 170 x 170 mm of dimension, Mini-ITX form factor compliant

• High memory capacity up to 2.0 GB DDR266 SDRAM

• Chipset built-in 3D SVGA controller with 8/16/32/64 MB shared video memory

• Advanced UltraATA/133 IDE interface to enhance the system performance

• Onboard 10/100 Mbps Fast Ethernet interface

• Onboard AC'97 Audio interface

• Onboard AV / S-Video TV-out interface

• Popular OS supported for industrial and commercial mainstream applications

BackToTop

Specification

• Form Factor: Mini-ITX with 6.7 x 6.7 inches (17 x 17cm ) of dimension.

• Onboard embedded VIA C3/Eden 1.0/1.2 GHz CPU. ( Non-RoHS compliant )

• DRAM: 2 x 184-pin DIMM Support DDR 266 SDRAM up to 2.0 GB.

• VGA Interface : VIA CLE266 chip build-in 3D SVGA controller.

• PCI Enhanced IDE: dual Channels support 4 ATAPI devices up to UltraATA/133.

• SSD: 1 x CompactFlash socket in the solder side. ( LV-666C1/C2 only )

• I/O Ports: 2 x RS232 serial port, parallel port, 6 x USB, 2 x IEEE 1394, PS/2 keyboard and mouse ports, VGA.

• Multi-media Interface: Chipset built-in 3D SVGA and AC97 3D audio interfaces.

• TV-out chip onboard: AITech chip for LV-666C1/C2 , VT1622A chip for LV-666C1V/C2V

• LAN Interface: 10/100 Mbps Fast Ethernet interface.

• Expansive Interface: one PCI bus interface.

• Power requiement : Standard 20-pin ATX power supply.

Download datasheet @ pdf format
