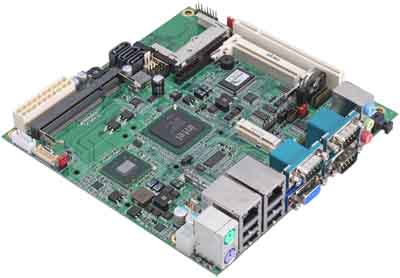

Mini-ITX Motherboard with Intel® Atom™ dual-core Solution
Intel® Atom™ Processor, Onboard LVDS, VGA, Giga LAN, USB2.0, HD Audio,
SATA, CF , PCI, PCIE Mini card & Mini-PCI socket, DC 9V ~ 24V or ATX P/S
|
Overview
|
|
Taiwan
Commate Computer Inc.(COMMELL), the worldwide
leader of Industrial Mini-ITX mainboard,
introduced the Mini-ITX LV-67E based
on the Intel Atom processor single core N450/ D410/
dual core D510, implemented in 45nm
technology, is power-optimized and delivers robust
performance-per-watt for cost-effective embedded
solutions, the N450 TDP rating is only
5.5Watts, D410 is 10W and D510 dual core is still
only 13W. The board is designed to enable x86 to be
built into embedded systems where it was previously
impractical for space reasons. It is especially
suitable for applications that must be contained in a
limited space control systems.
The
LV-67E motherboard consists of the Intel ATOM
N450/ D410/ D510 and ICH8M, Graphic Processing
Unit features power-efficient 32-bit 3D
graphics core based on Intel GMA 3150
architecture, video capability with up to 384MB of
shared graphics memory, delivers sophisticated graphics
for large display applications and with Dual
display types such as VGA+LVDS, Enables smoother
playback for MPEG-2 codec, a standard video compression
format used on Blue-ray, DVDs, broadcast, and broadband
content.
COMMELL's LV-67E supports DDR2
SO-DIMM up to 2.0 / 4.0 GB, and comes
with PS/2 Keyboard and Mouse, 6 x RS232C, Networking is
provided by Intel 82583V Giga LAN, 8 x
USB2.0 ports, HD audio, SATAII interface, CompactFlash
socket, Expansion with one PCI , one Mini-PCI &
two PCIE mini card sockets.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel® Atom™
D510 / D525 dual-core / N450 & D410 single-core
processor.
-
Chipset:
Intel® ICH8M Chipset.
-
Memory: 1 x DDR2 SO-DIMM up to
2.0 GB or 4.0 GB.
-
VGA
Interface: Intel®
integrated extreme GMA 3150 technology.
-
LVDS
interface: Onboard
18-bit single channel LVDS.
-
Serial
ATA: Support 3
x SATAII interface with 300MB/s transfer rate
-
Solid
State Disk: 1
x Compact Flash Type II socket. 1 x 44-pin IDE.
-
Audio: Intel®
ICH8M integrated
with Realtek ALC888 HD Audio.
-
LAN
Interface: 2
x Intel®
82583V Giga LAN.
-
Extended
interface: 1
x PCI slot, 2
x
PCIE mini card & 1 x Mini-PCI sockets
-
I/O
ports:
6 x RS232 Serial Ports, 8 x USB2.0 ports, 1 x VGA port, 1
x SMBUS,
1 x PS/2 keyboard and mouse ports, 2 x LAN, LVDS & Inverter, 1 x
LPT
-
Power
Requirement:
DC 9V ~ 24V input or
standard ATX P/S.
|
|
BackToTop |
Specification
|
|
Form Factor |
Mini-ITX
motherboard |
|
CPU |
Intel® Atom™
N450, 1.66GHz,
512KB cache
(LV-67EG)
Intel® Atom™
D410, 1.66GHz,
512KB cache
(LV-67EH)
Intel® Atom™
D510, 1.66GHz,
1MB cache
(LV-67EA)
Intel® Atom™
D525, 1.80GHz,
1MB cache
(LV-67EC) Package
type : Micro-FCBGA (FCBGA559) |
|
Memory |
1
x 200-pin DDR2-667 SO-DIMM up to 2.0 GB (LV-67EG)
1
x 200-pin DDR2-667 SO-DIMM up to 4.0 GB (LV-67EH/A/C) Support
Non-ECC, unbuffered memory only |
|
Chipset |
Intel® ICH8M |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery |
|
Watchdog
Timer |
Generates
a system reset
internal
timer for 1min/sec ~ 255min/sec
|
|
Power
Management |
ACPI
2.0 compliant, supports power saving mode
|
|
Integrated
Graphics |
Intel®
integrated
extreme GMA 3150 Technology
|
|
Video
Memory |
Up
to 384MB shared with system memory |
|
LVDS
Interface
|
Chipset
Integrated 18-bit single channel LVDS
|
|
Serial
ATA Interface
|
3
x SATAII interface with 300MB/s transfer rate
|
|
Solid
State Disk
|
1
x Compact Flash Type-II, 1 x 44-pin IDE
|
|
Audio
Interface |
Intel®
ICH8M integrated with Realtek ALC888 HD Codec
|
|
LAN Interface |
2
x Intel®
82583V
Gigabit Ethernet controller |
|
GPIO
Interface |
Onboard
programmable 8-bit Digital I/O interface
|
|
Expansion
Interface |
1
x PCI slot, 2 x PCIe mini card & 1 x Mini-PCI sockets
|
|
Internal I/O
Port
|
1 x Audio,
4
x USB2.0, 1
x LVDS, 1 x LCD
Inverter, 1 x LPT
3
x RS232, 1 x SMBUS, 1 x IrDA, 1 x GPIO
|
|
External I/O
Port |
4
x USB, 2 x RJ45 LAN, 1 x DB15 VGA, 1 x Audio, 1 x SPDIF
1 x RS232/422/485, 2 x RS232, , 1 x PS2 keyboard/mouse
|
|
Power Requirement |
DC
9V ~ 24V input or standard 20-pin ATX power supply |
|
Board Dimension
|
170mm x
170mm
|
|
Temperature |
Operating
within 0~60 centigrade
Storage
within -20~85 centigrade
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
LV-67EG
|
Support Intel® Atom
N450 processor with onboard VGA, 18-bit LVDS, Audio,
Giga LAN, USB2.0, SATA, CF,
PCI, Mini-PICI & PCIE mini card
|
|
LV-67EH
|
Support Intel® Atom
D410 processor with onboard VGA, 18-bit LVDS, Audio,
Giga LAN, USB2.0, SATA, CF,
PCI, Mini-PICI & PCIE mini card
|
|
LV-67EA
|
Support Intel® Atom
D510 processor with onboard VGA, 18-bit LVDS, Audio,
Giga LAN, USB2.0,
SATA, CF, PCI, Mini-PICI & PCIE mini card
|
|
LV-67EC
|
Support Intel® Atom
D525 processor with onboard VGA, 18-bit LVDS, Audio,
Giga LAN, USB2.0,
SATA, CF, PCI, Mini-PICI & PCIE mini card
|
