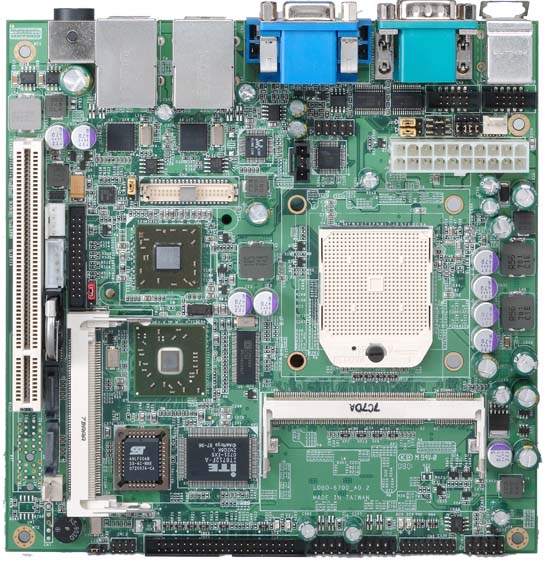

LV-682
AMD Mobile Turion 64 X2 / Sempron processor , ATI RS690E & SB6000 ,
Onboard VGA , LVDS , DVI , Giga LAN , Audio , SATA , Compactflash socket
USB , GPIO , COM , PCI & Mini-PCI .
|
Overview
|
|
Taiwan
Commate Computer Inc.(COMMELL), the worldwide leader of Industrial
Mini-ITX mainboard, introduced the Mini-ITX motherboard LV-682 that
mainboard incorporates an AMD S1 processor socket compatible with AMD
Turion 64x2 Dual-Core, AMD Turion 64, and Mobile AMD Sempron processors. it
also implements the ATI RS690E Chipset with ATI Radeon X-1250 based 2D/3D
graphics engine, dual display. This high level integration that optimizes
the design of high performance, low-power-consumption solutions for embedded
products, including thin clients, gaming, kiosk, point-of-sale, and other
graphics-centric embedded applications.
COMMELL's LV-682 Mini-ITX mainboard supports two
SO-DIMM memory
slots for DDR2 SDRAM and up to 4GB, and
comes with PS/2 Keyboard and Mouse, 3 x RS232C and 1 x
RS232/422/485, Networking is provided by Realtek
2 x RTL8111B PCI-Express Giga LAN, 8 x
USB2.0 ports, It offers Realtek ALC655 Codec audio, full
SATA 2 interface speed up to 3.0Gb/s .Expansion
with Mini PCI and PCI slots easily using any other
add-on cards.
|
|
BackToTop |
Key Feature
|
-
Support
AMD Mobile Turion 64 X2 / Sempron
-
2 x 200-pin
SO-DIMM support DDRII up to 4.0 GB
-
Integrated
ATI RADEON X-1250 based 2D/3D graphics engine
-
Integrated
ALC655 codec, 2 x Giga Ethernet interface.
-
2 x SATA 2
interface , CompactFlash socket
-
USB 2.0 ,
RS232 , LVDS & DVI interface
-
Mini-PCI
socket , IDE support 44-pin DOM
-
Standard
20-pin ATX power supply or 8 ~ 21 full range 4-pin DC adapter
|
|
BackToTop |
Specification
|
-
Form
Factor:
170 x 170 mm
-
CPU:
support AMD Mobile Turion 64 X2 / Sempro processor at 638-pin
-
Chipset:
ATI RS690E & ATI SB600
-
Memory: 2
x 200-pin DDRII 533/667 MHz SO-DIMM socket supports up to 4.0 GB
-
VGA
Interface: built-in ATI RADEON X-1250 based 2D/3D
graphics engine
-
LVDS
Interface: Onboard 24-bit dual channel LVDS , ATX
Power only.
-
Enhanced
IDE: One 44-pin UDMA 33 IDE channel up to 2
ATAPI devices.
-
Expansive
Slots: 1 x PCI slot and 1 x Mini-PCI
socket
-
Serial ATA
interface: 2 x SATA 2 interface with 300 MB/s transfer rate
-
LAN
Interface: 2 x Realtek RTL8111B Giga
LAN
-
Audio: Realtek
ALC655 Codec
-
External
I/O
Ports: 1 x RS232 & 1
RS232/422/485, 1 x PS/2
keyboard/Mouse, 4 x USB 2.0, 1 x Audio, 2 x RJ45 LAN ports, 1 x DB15 VGA, 1
x 4-pin DC input connector
-
Internal
I/O
Ports: 2 x serial port, 1 x GPIO, 4
x USB 2.0, 1 x LVDS, 1 x DVI, 1 x 1394
-
Power
Supply:
Standard 20-pin ATX power supply or 4-pin 8 ~ 21V full range DC input
|
|
Download
datasheet @ PDF format
|
|
BackToTop |
Ordering Guide
|
|
LV-682
|
AMD Mobile Turion 64 X2 / Sempron
638-pin Procesor , ATI RS690E & SB600 chipset , Giga LAN , VGA , LVDS , Mini-PCI
, USB , COM , SATA
|
|
LV-682S21
|
LV-682 with Mobile Sempron 2100+
|
|
LV-682S37
|
LV-682 with Mobile Sempron 3700+
|
|
