LE-364
3.5" Fanless Miniboard with VIA Eden 800MHz CPU & VIA CN400 , VT8237.
1GB DDR , 10/100 LAN , 18/24-bit LVDS , 2 x USB 2.0 , 2 x COM , 1 x IrDA
1 x Mini-PCI and 1 x CompactFlash socket , DC 12V
|
Overview
|
COMMELL's
LE-364 is 3.5"
Fanless Minboard based on VIA Eden CPU ,With
VIA CN400 & VT8237 Chipset. LE-364 combined the
highly efficient VIA Eden 800MHz processor and VIA CN400
digital media chipset. integrating the S3 Graphics
UniChrome Pro IGP graphics core.
the
LE-364 leverages the advanced hardware MPEGII and MPEG-4
acceleration features on all display type for CRT and
LCD screens. The low
power consumption and high integration make LE-364 be the ideal solution for industrial embedded applications
.
|
BackToTop |
Key Feature
|
-
Compact
embedded miniboard with 3.5" drive size, 146 x 101 mm of
dimension.
-
Embedded
VIA Eden 800MHz CPU . FSB 133MHz.
-
VIA
CN400 integrates S3 Graphics UniChrome Pro IGP graphics core.MPEGII
& MPEG-4 hardware accelerator integrated.
-
One
184-pin DDR266/333/400 SDRAM up to 1GB .
-
18/24-bit
LVDS interface and 64 MB video memory
-
Integrated
AC97 audio, One 10/100 Mbps
Fast Ethernet interface.
-
GPIO
Interface and IDE1 support DiskOnModule with +5V power supply.
-
Extended
PCI Interface through optional riser card up to 2 devices.
-
1
x Mini-PCI slot.2 x USB 2.0. 2 x COM.
-
Onboard
CompactFlash socket supports CFC (Compact Flash Card)
-
DC
+12V Input.
|
BackToTop |
Specification
|
-
Form
Factor: 3.5" Fanless Embeded miniboard
-
CPU:
Embedded VIA Eden 800MHz CPU
-
Memory:
Onboard 1 x 184-pin DDR266/333/400 SDRAM up to 1
GB
-
Chipset
: VIA CN400 & VT8237
-
Real
Time Clock : Chipset Integrated RTC with onboard lithium battery
-
Watchdog
Timer : Winbond W83697HF with system generates 256 levels reset.
-
Power
Management : ACPI 1.0 compliant, supports power saving mode with ATX PSU
-
PCI
Enhanced IDE: One ATA133 IDE channel supports up to 2 ATAPI devices.Onboard 1 x
44-pin IDE connectors
-
VGA
Interface: VIA CN400 integrates S3 Graphics UniChrome Pro IGP graphic core.
MPEGII/MPEG-4 hardware accelerator integrates and 64 MB of
video memory shared with system.
-
LCD
Interface: 18/24-bit LVDS interface.
-
LAN
Interface: 1 x VIA VT6103 10/100Mbps PHY.
-
Audio
Interface: Realtek ALC201A AC97 Codec.
-
Solid
State Disk: IDE1 supports DiskOnModule with + 5V power supply.1 x CF socket.
-
Internal
I/O Ports: 1x IrDA port, 1x Parallel and 2 x USB ports.1 x Serial Port, 1x
silm FDD ,1 x CDIN,1 x 10-pin audio port.2 x fan connectors.1 x 4-pin
12V power input.1 x 4-pin 5V/12V power output.
-
External
I/O Ports: 1 x RJ45 LAN ports, 1x DB15 VGA port and 1x PS/2 port, 1x RS232 port,
1 x Phone jack. 1x
DC Jack
-
Extended
Interface: 1 x Mini-PCI slot. Extended PCI interface through
optional riser card up to 2 devices.
-
Power
Requirement : DC 12V input
-
Board
Dimension : 146 mm x 101 mm (L xW)
|
Download
datasheet @ PDF format
|
BackToTop |
Ordering Guide
|

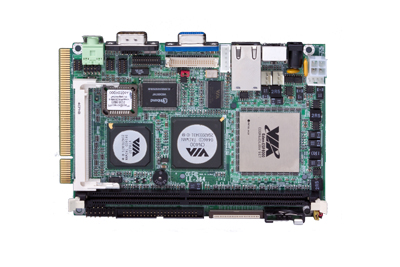

LE-364
|
3.5" Embedded VIA Eden 800MHz CPU with VIA CN400 & VT8237 Chipset.
18/24-bit LVDS Interface, Audio, LAN, Mini-PCI and CFC Interfaces.
|
LE-364C10
|
Same as LE-364 but change processor to C3 1GHz
|

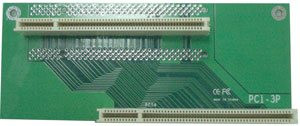

PCI-3P1
|
1-slot 32bit right angle PCI Riser Card |

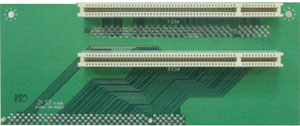

PCI-3P2
|
2-slot 32bit left angle PCI Riser Card |
SPD-080-12
|
AC-DC Adapter With 12V, 80W DC Jack Output |
|
