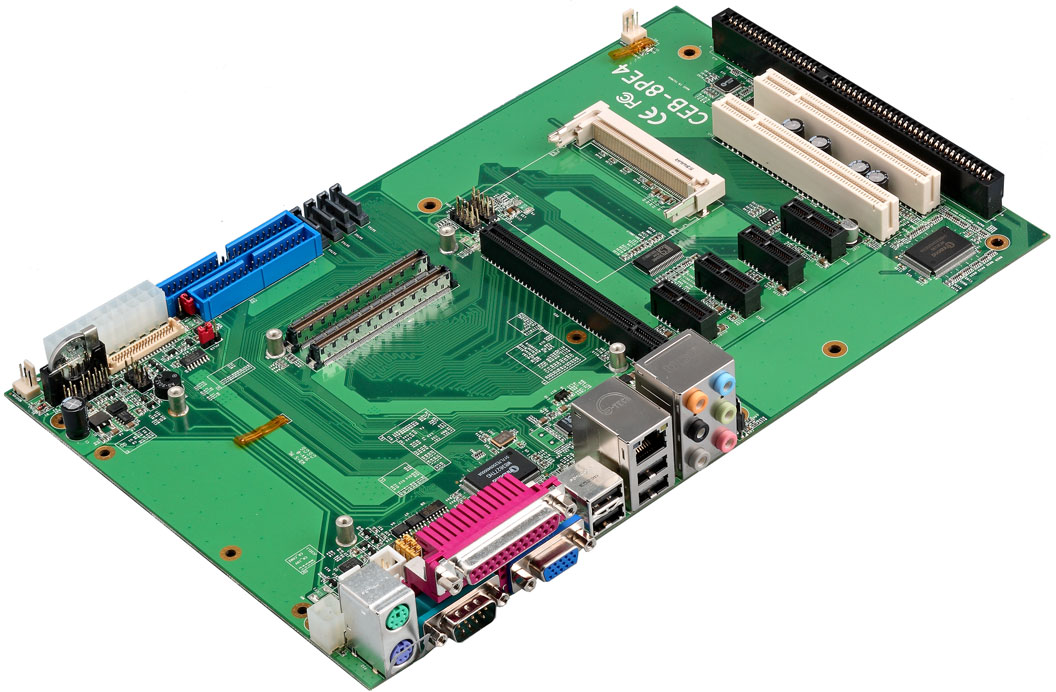

CEB-8PE4 - ATX COM-Express Baseboard



- Features

- Specifications

- Ordering information

- Datasheet (PDF)

- Check it enlarge

  • COM-Express baseboard ( 190mm x 305mm )

  • Support Type I & Type II Basic or Extended Module

  • Standard 20-pin ATX power supply connector


Board Size

ATX Baseboard ( 190 x 305 mm )



Winbond W83627 THG for super I/O

Winbond W83628 for ISA bridge



Lithium Battery for real time clock


Power Requirement

Standard 20-pin ATX power supply


Extended Interface

1 x PCI-Express x16 slot

4 x PCI-Express x1   slots

2 x PCI slots

1 x ISA slot

1 x Mini-PCI socket


Internal I/O Ports

1 x RS232/422/485 port

1 x IrDA connector

1 x FDD port

1 x GPIO port

1 x 40-pin IDE connector

4 x SATA ports

4 x USB 2.0 ports

1 x LVDS and LCD inverter connector

1 x Audio Front Panel with Amplified Speaker out & MIC-in

1 x 20-pin ATX power connector

1 x 4-pin 12V connector


External  I/O Ports

1 x PS2 Keyboard/Mouse port

1 x DB9 series port

1 x DB25 LPT port

1 x DB15 CRT port

4 x USB2.0 ports

1 x RJ45 LAN port

1 x 6 port phone jack



 Ordering information
CEB-8PE4       ATX COM-Express Baseboard
