DC-DC4

  DC to DC Power converter



DC-DC4

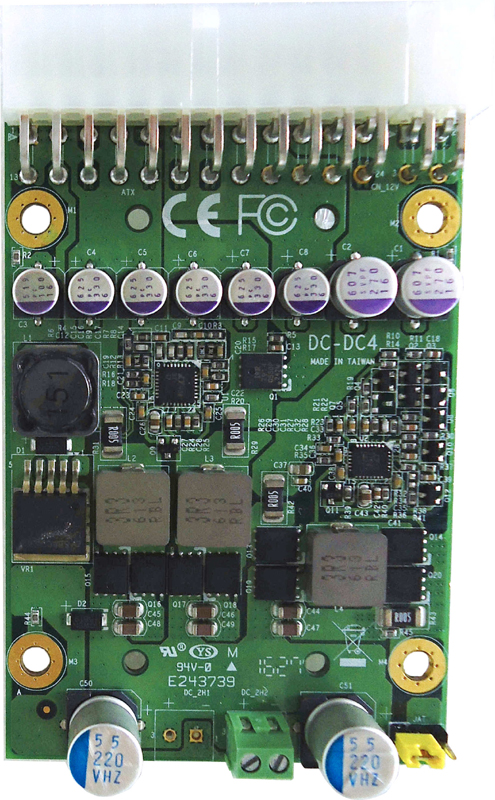

Click to View Large Image


- Power Input :
6 ~ 30V  DC full range power input ( MAX 140W )
- Power output :
  Current Power Output
+3.3V 3.14~3.47 7A
+5V

+5VSB

 4.75~5.25 7A
+12V 11.4~12.6 6.5A
-12V -10.8~-13.2 0.5A

- Dimension :
  101mm x 63mm
- Technical Document:
Datasheet         Manual

Ordering Guide

DC-DC4

140W DC/DC Power Converter. (With terminal connector and heat spreader)
