Product >  Industrial Peripheral > M.2 (NGFF) card > MPX-M2E

..........................................................................................................................................

MPX-M2E
M.2 (NGFF) to Mini-PCIe adapter

-M.2 (NGFF) to Mini-PCIe
-Full size  mPCIe slot Support
-PCIe & USB2.0 interface
-Support M.2 Key E Card Type
-Application for WiFi & BT module
-Support 2230/3030 M.2 Card dimension


Specifications

Host Interface

PCI-E + USB

Controller

N/A

Dimension

 30.00mm x 50.95mm x 9.6mm (L x W x H)

Voltage

3.3V +/-5%

Temperature

0~60°C

Storage Temperature

-40~+85°C

Module KEY

E key

mPCIe Size

Full size

PCIe version

1.1

USB version

2.0

User Manual

Manual  ,   Datasheet

Driver

Win7 32-bit  ,  Win7 64-bit

Win8 32-bit  ,  Win8 64-bit

Win8.1&10 32-bit  ,  Win8.1&10 64-bit

Win server 2012 R2 64-bit

Linux for kernel 2.6.30

Ordering Code

MPX-M2E

M.2 (NGFF) to Mini-PCIe adapter

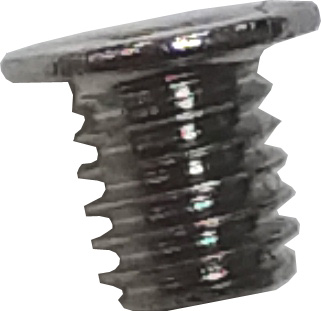

       screw x1
