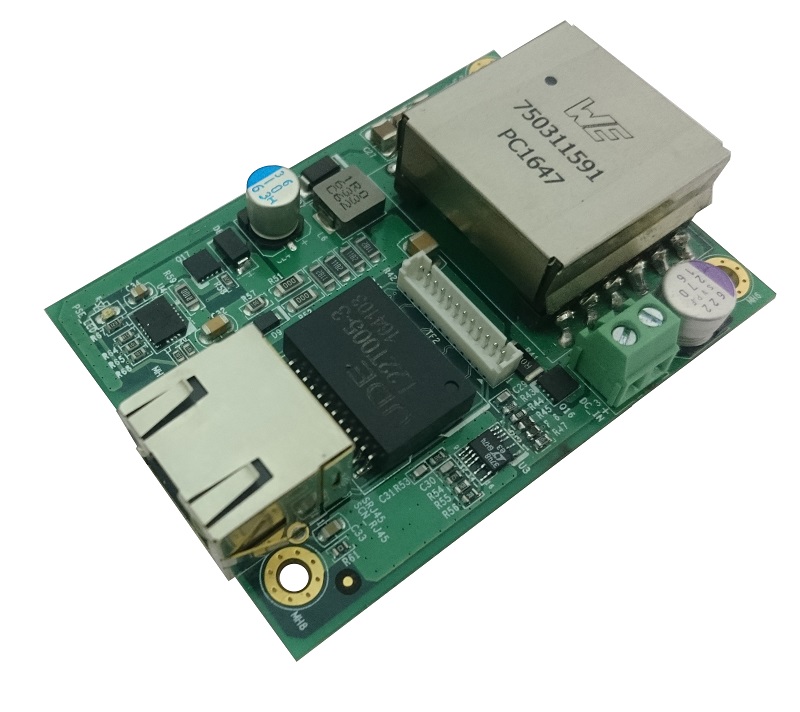

ADP-PSE


PoE+ Power Sourcing Equipment Module

           -IEEE802.3at/af compliant

           -With an isolated power supply using synchronous Flyback topology

           -Supports DC Iutput 9~30V

           -Supports 1Gb/s Ethernet

Click for larger image

 Mechanical  &  Environmental
 Interface :

 RJ45 for connecting to PD

 Internal 12-pin head for connecting

 with powered board

 Internal 2-pin terminal block for DC

 power of powered board

 Dimensions :  70.0mm x 49.0mm (L x W)
 Power Requirement  DC 9~30V
 Temperature :  Operating within -40℃~+125℃
 Storage within -40℃~+125℃
 Document :  Manual ,Datasheet
 Ordering Code
 ADP-PSE  IEEE802.3at/af compliant with DC input 12V

Accessories



OALDC-DC3

 Optional Cable

OALPoE-02  For COMMELL mini card MPX-350

OALPoE-03 For  COMMELL mini card MPX-210
