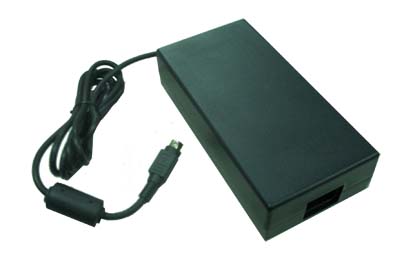

SPD-120-12A

    AC-DC Adapter with 12V, 120W 4 Pin Mini DIN



This product is AC to DC power transfer device, it
can provide for 120W single dc output with constant
source.







Specification

Input Range AC 100~240V, 50/60Hz 1.7A
Output Voltage 12V

10A 120W MAX

Efficiency

>84% at DC full load

Ripple&Noise <200 mV
Rise Time <30 ms
Hold Up Time >8 ms@115V
MTBF(hours) 50,000 hours at 25℃
Safety IEC
Dimension 170(L)*84*(W)*40(H)mm
Weight 0.9 Kg
