FS-A79
PICMG 1.3 SBC support 8th generation Intel® Core™ Desktop Processors

Support  8th generation  Intel® Core Desktop CPU with
Intel® Q370, DDR4 up to 32GB, onboard display port , VGA & DVI & LVDS,
1 x Giga LAN, 1 x Giga PHY LAN, 4 x USB 2.0, 6 x USB 3.1 Gen2, 6 x COM, HD Audio,
3 x SATA3 with RAID, LPC, SMBus, GPIO, 1 x Mini-PCIe, 1 x SIMM.

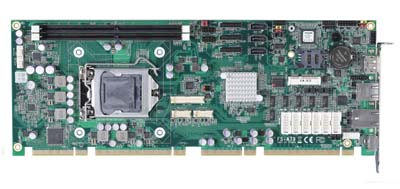

view larger image

-
Overview
-
Feature
-
Specification
-
Product Image    I/O
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched PICMG 1.3 SBC with Q370 Chipset.

FS-A79 SBC is based on Q370 chipset, and equipped with DDR4 2666 MT/s data transfer rates memory up to a maximum of 32GB in dual DIMM slots.

FS-A79 supports display port, VGA, DVI, LVDS4 x RS232 and 2 x RS232/422/485 ports, Networking is provided by Intel 1 x I210 Giga LAN and 1 x I219-LM Giga PHY LAN, 4 x USB2.0 ports, 6 x USB3.1 Gen2 ports, High Definition Audio port, 4 SATA3.0, one Mini-PCIE expansion slot.

Onboard Intel® I219-LM GbE controller support Intel® AMT 12 feature on primary LAN port. The BIOS is ready to support Intel® AMT 12 feature. The necessary prerequisite is your CPU must support Intel® vPro technology.

For further instruction about the Intel® AMT features and set up, please refer to the iAMT Setting.pdf

BackToTop

  Key Feature
  • CPU: Intel® 8th generation Core™ Desktop in the FCLGA1151  socket

  • Memory2 x DDR4 2666 DIMM up to 32 GB

  • Chipset: Intel® Q370

  • Display InterfaceOnboard display port & VGA & DVI & LVDS.

  • LAN Interface1 x Giga PHY LAN, 1 x Giga LAN.

  • Serial ATA: Support four  SATA3 with RAID 0,1,5.

  • Audio: Realtek ALC262 High Definition Audio.

  • I/O ports: 4 x RS232 and 2 x RS232/422/485 Serial Ports, 4 x USB2.0 ports, 6 x USB3.1 Gen2 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and mouse ports, Audio, SMBus.

  • Extended interfacePICMG 1.3 Interface Support 1 PCI-Express x16 and 1 PCI-Express x4 or 4 PCI-Express x1, 4 PCI, mSATA (mSATA only Support SATA3)

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

BackToTop

  Specification


Form Factor

PICMG 1.3 SBC

Processor

Supports 8th Generation Intel®  Core Desktop Processor

Package Type: FCLGA1151

Memory

2 x DDR4 2666 DIMM up to 32 GB

Chipset

Intel® Q370

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 5.0 compliant

Serial ATA Interface

Intel® Q370 PCH built-in 3 x Serial ATA3 interface up to 600MB/s Support RAID 0, 1, 5 and Intel Rapid Storage Technology.(not support SATA2 device)

 DVI Interface  Two onboard 20-pin DVI interface
 LVDS Interface  Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V   supply
 CRT Interface  Onboard 2x8 pin-header

Audio Interface

Intel® integrated Q370 with Realtek ALC232 HD Audio

LAN Interface

1 x Intel® I210 & 1 x Intel® I219-LM Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

 Support 1 PCI-Express x16 and 1 PCI-Express x4 or 4 PCI-Express x1, 4 PCI, mSATA (mSATA only Support SATA3)

Internal I/O Port

2 x RS232/422/485, 4 x RS232, 1 x GPIO port, 1 x Audio connector, 1 x SMBus connector, 1 x CRT, 1 x LVDS, 2 x DVI, 1 x LPC, 4 x USB2.0 and 6 x USB3.1 Gen2 ports, 3 x SATA3

External I/O Port

1 x PS/2 Keyboard/Mouse Port, 1 x Display port, 2 x RJ45 LAN ports

Power Requirement

+5V, +12V & 5VSB

Board Dimension

338 mm x 126 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

FS-A79G201

Onboard DVI, CRT, LVDS, Display port, USB3.1 Gen2 & 2.0, 6 x Serial Port, SATAIII, IrDA, GPIO, LPC, Realtek HD Audio, SMBus, mSATA, 1 x Gigabit LAN (I210-LM), 1 x Gigabit PHY LAN (I219-LM).Support 1 PCI-Express x16 and 4 PCI-Express x1

FS-A79G204

Onboard DVI, CRT, LVDS, Display port, USB3.1 Gen2 & 2.0, 6 x Serial Port, SATAIII, IrDA, GPIO, LPC, Realtek HD Audio, SMBus, mSATA, 1 x Gigabit LAN (I210-LM)  1 x Gigabit PHY LAN (I219-LM).Support 1 PCI-Express x16 and 1 PCI-Express x4

DBPE-1308A

 8 PCI + 1 PCIe x16 + 3 PCIe x1 Active Backplane
DPE-6S2-R40  3 PCI + 1 PCIe x16 + 1 PCIe x4 Passive Backplane
DPE-10S-R40  4 PCI + 1 PCIe x16 + 4 PCIe x1 Passive Backplane
