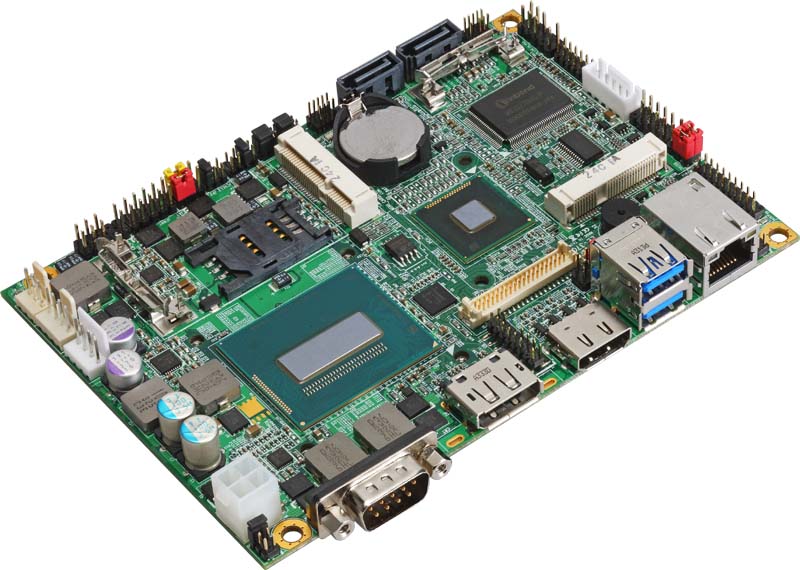

LE-37C
4th / 5th generation Intel® Core™ i7 / i5 / i3 & Celeron® processor (Haswell / Broadwell)
3.5"SBC Motherboard

Support  4th / 5th generation  Intel® Core i7 / i5 / i3 & Celeron® Mobile CPU with
Intel® QM87 Express, DDR3L SO-DIMM up to 8GB, Onboard Display port ,VGA & DVI
 & LVDS,1 x Giga LAN, 2 x USB 2.0, 4 x USB 3.0, 2 x COM, HD Audio, GPIO,
 2 x SATAIIl with RAID,  1 x SIM, 1 x CFast, 2 x Mini-PCIe sockets.

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a 3.5" miniboard form form factor LE-37C embedded system board with the Intel® QM87 Express chipset, which adopts the 4th / 5th generation Intel® Core™ Mobile processor family, ex. i7-4700EQ. (formerly known as “Haswell / Broadwell”, manufactured on 22nm processor technology). The COMMELL LE-37C platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application



The LE-37C 3.5" Embedded mainboard is designed for the 4th/5th generation Intel® Core™, Celeron Mobile processors in the FCBGA1364 supporting one DDR3L SO-DIMM up to 8GB and running 1333/1600 Mhz No ECC function. The platform is based on Intel® HD Graphics 4600 that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LE-37C supports VGA, LVDS, DVI-I and one display port to provide its advanced solutions for imaging, machine vision and digital signage applications.









LE-37C offers lots of features including high-speed data transfer interfaces such as 4 x USB3.0 and 2 x SATAIII supported RAID 0/1, equipped with single Gigabit Ethernet with iAMT 9.0 supported, and it comes with PS/2 Keyboard and Mouse port, 1 x RS232 and 1 x RS232/422/485, 2 x USB2.0, Intel® High Definition Audio, and two PCIE Mini card sockets.



BackToTop

  Key Feature



  • CPUIntel® 4th / 5th generation Core™ i7/ i5/ i3 & Celeron® processor (Haswell / Broadwell) in the FCBGA1364 socket

  • MemoryOne DDR3L SO-DIMM 1333/1600 MHz up to 8 GB

  • Chipset: Intel® QM87 Express chipset

  • Integrated GraphicsIntel® Core™ integrated HD Graphics 4600 Technology

  • Display port interface: Onboard Display port connector

  • DVI interface: Onboard DVI connector

  • LVDS interface: Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

  • Display port interface: Onboard Display port connector

  • LAN Interface1 x Intel® I217-LM Gigabit LAN  (Support iAMT9.0)

  • Serial ATA: 2 x serial ATA3 interface with 600MB/s transfer rate (Only for SATA3)

  • Audio: Realtek ALC888 High Definition Audio

  • Internal I/O Port: : 1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 2 x USB3.0, 2 x USB2.0, 1 x IrDA, 1 x CRT, 1 x LPC,1 x LVDS, 1 x LCD inverter, 2 x Serial ATA3 , 1 x DC-Out, 1 x PS/2, 1 x CFAST and 1 x Front panel Audio

  • External I/O Port : 1 x LAN, 1 x DVI, 1x DisplayPort, 2 x USB3.0 and 1 x RS232

  • Extended interface:  Two PCIE Mini card slots, 1 x CFast Card socket , one SIM socket. (Optional support mSATA(SATAIII) for Mini_Card1)

  • GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface

  • Power Requirement: 9~24V 4-pin full range DC Input.

BackToTop

  Specification


Form Factor

3.5" Single Board Computer

Processor

4th / 5th Generation Intel® Core™ i7/ i5/ i3 & Celeron® Mobile Processor (Haswell / Broadwell).

Package Type:  FCBGA1364

Memory

1 x DDR3L SO-DIMM 1333/1600 MHz up to 8GB.Support Non-ECC, only unbuffered memory.

Chipset

Intel® DH82QM87 PCH

Integrated Graphics

Intel® Core™ integrated HD Graphics 4600 Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 4.0 compliant

Serial ATA Interface

2 x serial ATA3 interface with 600MB/s transfer rate (Only for SATA3)

 Display Interface

Intel® 4th/5th Generation Core mobile processor integrated HD Graphics 4600

1 x CRT (Onboard 2x8 pin-header)

1 x DVI (Rear I/O connector)

1 x DisplayPort (Rear I/O Port)

1 x LVDS (Onboard 24-bit dual channel connector with +3.3/+5/+12V supply)



LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

1 x Intel® I217-LM Gigabit LAN (Support iAMT9.0)

GPIO Interface

Onboard programmable 12 pin-header, 8-bit Digital I/O interface

Extended Interface

Two PCIE Mini card slots, 1 x CFast Card socket , one SIM socket. (Optional support mSATA(SATAIII) for Mini_Card1)

Internal I/O Port

1 x RS232/422/485, 1 x SMBUS, 1 x GPIO, 2 x USB3.0, 2 x USB2.0, 1 x IrDA, 1 x CRT, 1 x LPC,1 x LVDS, 1 x LCD inverter, 2 x Serial ATA3 , 1 x DC-Out, 1 x PS/2, 1 x CFAST and 1 x Front panel Audio

External I/O Port

1 x LAN, 1 x DVI, 1x DisplayPort, 2 x USB3.0 and 1 x RS232

Audio Interface

Realtek ALC888 High Definition Audio.

Power Requirement

9~24V 4-pin full range DC Input.

Board Dimension

146mm x 101mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LE-37C17L

i7-4700EQ Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.

LE-37C17P

Celeron 2002E Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.

LE-37C17Q

i5-4402E Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.

LE-37C17R

i3-4102E Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.

LE-37C2E6

i7-5700EQ Mobile Processor, Onboard DisplayPort, DVI, LVDS,  CRT, LAN, USB2.0, USB3.0,HD Audio ,SATA3, SMBUS, LPC, SIM, GPIO, IrDA, DC-Out, PS/2, PCIe mini card, CFast, mSATA.
