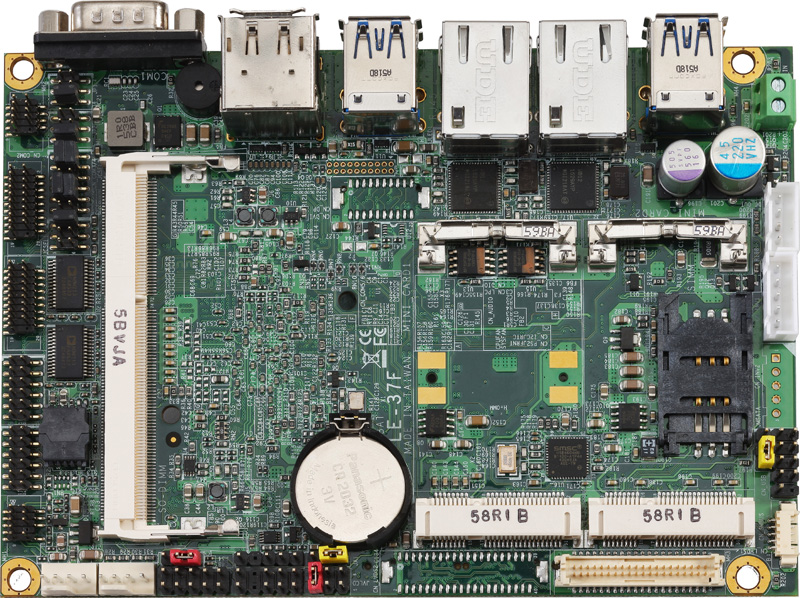

LE-37F
3.5 inch Miniboard with Intel® Braswell Series Processor

Intel® Braswell Series  Processor.
Onboard Display port, HDMI , LVDS, HD Audio, Serial ATA3, USB3.0 & 2.0, Gigabit LAN,
PCIE Mini card, mSATA

view larger image



-
Overview
-
Feature
-
Specification
-
Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
launched a 3.5 inch Miniboard form factor LE-37F consists of the Intel® Braswell Series N3710/X5-E8000,
combined with the Intel® Express chipset, Integrated Intel® Braswell SoC integrated HD Graphics Technology
with integrated memory. The COMMELL LE-37F platform provides excellent CPU, graphics, media
performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking
capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation
application.

The  3.5 inch  Miniboard LE-37F is designed for Intel® Braswell Series processors supporting one DDR3L
SO-DIMM up to 8GB and running 1600 MHz No ECC function. The platform is based on Intel® Braswell SoC
integrated HD Graphics Technology that provides high-end media and graphics capabilities for devices that
display videos, 2D/3D graphics and interactive content. In addition, LE-37F integrated LVDS, HDMI, Display
port(Optional) for Triple display supports to provide its advanced solutions for imaging, machine vision and
digital signage applications.

LE-37F offers lots of features including high-speed data transfer interfaces such as 4 x USB 3.0, equipped
with one or two Gigabit Ethernet, and it comes with PS/2 Keyboard and Mouse port, 1 x RS232/422/485,
5 x RS232, 2 x USB2.0, Intel® High Definition Audio,  two PCIE Mini card socket or MINI CARD1 to mSATA.

BackToTop

  Key Feature



  • CPU: Intel® Braswell Series Processor.

  • Memory1 x DDR3L (support 1.35V) 1600 SO-DIMM up to 8GB.

  • Integrated Graphics: Intel® Braswell SoC integrated HD Graphics.

  • Display port interface: Onboard Display port connector (Display port and optional CRT can’t be enabled simultaneously).

  • HDMI interface: Onboard HDMI connector.

  • LVDS interface: Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply.

  • LAN Interface: 2 x Intel® I210 Gigabit LAN.

  • Serial ATASupport 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, no support RAID 0,1. (CN_SATA-2 connot use when MINI CARD1 change to mSATA)

  • Audio: Realtek ALC262 HD Audio.

  • Internal I/O Port: 1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 2 x USB 2.0, 2 x SATA3 and 1 x DC Out.

  • External I/O Port: 1 x RS232, 1 x HDMI port , 2 x RJ45 LAN ports, 4 x USB 3.0, 1 x Display port(Optional).

  • Extended interfaceTwo PCIE Mini card slots (Only MINI CARD1 support mSATA), one SIM socket.

  • GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.

  • Power RequirementDC Input 9~24V.

BackToTop

  Specification


Form Factor

3.5 inch miniboard

Processor

Intel® Braswell Series Processor N3710/X5-E8000, FCBGA1170 package

Memory

1 x DDR3L (support 1.35V) 1600 SO-DIMM up to 8GB. Support Non-ECC.

Integrated Graphics

Intel® HD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Support 2 x SATA3 with 600MB/s (6Gb/s) transfer rate, no support

RAID 0,1. (CN_SATA-2 cannot use when MINI CARD1 change to mSATA)

 Display Interface

Intel® HD Graphics Technology

1 x HDMI (Rear I/O HDMI connector)

1 x Display Port (Rear I/O Port) (Optional)

1 x LVDS (One onboard 24-bit dual channel connector with +3.3/+5/+12V supply)

(Display port and optional CRT can’t be enabled simultaneously)

LVDS Interface

One onboard 18/24-bit dual channel LVDS connector with +3.3/+5/+12V supply

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

2 x Intel® I210-AT Gigabit LAN

GPIO Interface

Onboard programmable 12 pin-header, 8-bit Digital I/O interface

Extended Interface

Two PCIE Mini card slots, one SIM socket.

(Only Mini_Card1 can change to mSATA)

Internal I/O Port

1 x PS/2, 4 x RS232, 1 x RS232/422/485, 1 x GPIO, 1 x Audio, 1 x SMBUS, 1 x LVDS, 1 x LCD inverter, 1 x LPC, 2 x USB 2.0 , 2 x SATA3 and 1 x DC Out

External I/O Port

1 x RS232, 1 x HDMI port, 2 x RJ45 LAN ports,  4 x USB 3.0, 1 x Display port(Optional)

Power Requirement

DC Input 9~24V

Board Dimension

146mm x 101mm (L x W), 1.6mm

Temperature

Operating within 0°C ~ 60°C (32°F ~ 140°F)

Storage within -20 ~ 80°C (-4°F ~ 176°F)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LE-37FNXIP

Intel® Pentium® Core Processor N3710,  DisplayPort, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA,  LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, DC in 9~24V.

LE-37FEXIP

Intel® Atom® Core Processor X5-E8000,  DisplayPort, HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA,  LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, DC in 9~24V.

LE-37FNXIT

Intel® Pentium® Core Processor N3710, 11pin socket (connect to ADP3355 for CRT), HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA,  LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, DC in 9~24V.

LE-37FEXIT

Intel® Atom® Core Processor X5-E8000, 11pin socket (connect to ADP3355 for CRT), HDMI, LVDS, USB2.0, USB3.0, MinIPCIe, mSATA,  LAN, Audio, SATA3, COM, LCD inverter, LPC, PS/2, SMBUS, DC in 9~24V.

LE-37FNXIP-4G

Same as  LE-37FNXIP, but with DDR3L 1600 4G-SODIMM Module

LE-37FEXIP-4G

Same as  LE-37FEXIP, but with DDR3L 1600 4G-SODIMM Module

LE-37FNXIT-4G

Same as  LE-37FNXIT, but with DDR3L 1600 4G-SODIMM Module

LE-37FEXIT-4G

Same as  LE-37FEXIT, but with DDR3L 1600 4G-SODIMM Module

LE-37FNXIP-8G

Same as  LE-37FNXIP, but with DDR3L 1600 8G-SODIMM Module

LE-37FEXIP-8G

Same as  LE-37FEXIP, but with DDR3L 1600 8G-SODIMM Module

LE-37FNXIT-8G

Same as  LE-37FNXIT, but with DDR3L 1600 8G-SODIMM Module

LE-37FEXIT-8G

Same as  LE-37FEXIT, but with DDR3L 1600 8G-SODIMM Module

ADP-3355

Display port to VGA.

ADP-3355 NB

Display port to VGA, without bracket
