LE-37N
3.5 inch Miniboard Intel® Whiskey Lake U Processor

Support Intel® Whiskey Lake U Processor with Intel® chipset, DDR4 up to 32 GB,
Integrated HDMI, DisplayPort, LVDS, 1 x Giga PHY LAN, 1 x Giga LAN, 4 x USB 2.0,
4 x USB 3.1 Gen2, 2 x RS232/422/485, 2 x RS232, HD Audio, 1 x PS/2, 2 x SATA3 with RAID, GPIO,
SMBus, 1 x Mini-PCIe socket (support mSATA), 1 x M.2 (Key E).

view larger image

-
Overview
-
Feature
-
Specification
-

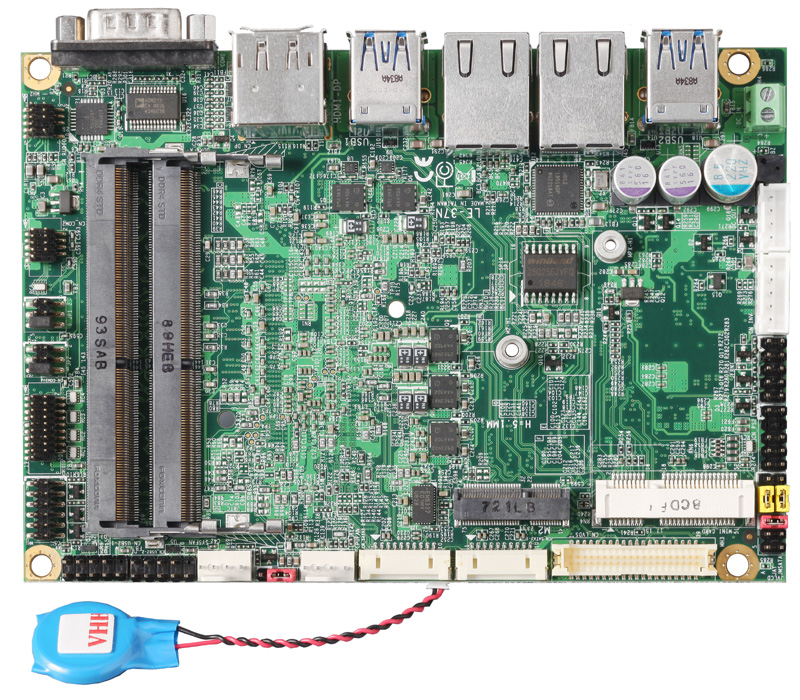

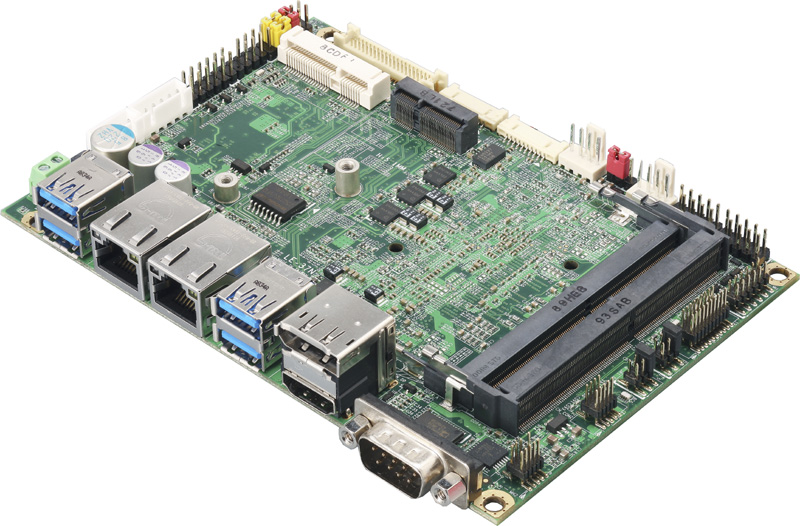

Product Image  TOP  BOTTOM
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LE-37N 3.5 inch Miniboard embedded system board based on Intel® Whiskey Lake U +processors.

The LE-37N 3.5 inch Miniboard platform is designed for Intel® Whiskey Lake U-series processors
in the FCBGA1528 sockets.support DDR4 memory (Two DDR4 SO-DIMM 2400 MHz up to 32GB).

The platform is based on Intel® UHD Graphics, this GPU offers 24 execution units (EUs) clocked at up to
1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely
in hardware and thereby much more efficiently than before. Displays can be connected via 1 LVDS, 1 HDMI
and one DP port up to three displays can be controlled simultaneously. LE-37N offers lots of features including
high-speed data transfer interfaces such as 4 x USB3.1 Gen2 and 2 x SATA3, equipped with dual Gigabit
Ethernet, and comes with PS/2 port, 2 x RS232 and 2 x RS232/422/485, 4 x USB2.0, Intel® High Definition
Audio, and 1 MiniPCIe socket(Supports mSATA), 1 M.2 (Key E).

BackToTop

  Key Feature



  • CPUIntel® Whiskey Lake U Processor in the FCBGA1528 sockets.

  • MemoryTwo DDR4 2400 MHz SO-DIMM up to 32 GB, support Non-ECC, unbuffered memory.

  • Integrated GraphicsIntel® Gen 9.5 integrated HD Graphics.

  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/+12V supply

  • Display port interface: Onboard Display port connector. (Only LE-37N7)

  • HDMI interface: Onboard HDMI connector.

  • VGA interfaceOnboard 11-pins connector.(Only LE-37NT7)

  • LAN Interface1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT Gigabit LAN.

  • Serial ATASupport 2 x SATA3.

  • Audio: Realtek ALC262 High Definition Audio.

  • Internal I/O2 x SATA3, 1 x RS232,  2 x RS232/422/485, 4 x USB2.0, 1 x VGA(Only LE-37NT7), 1 x LVDS, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBus.

  • Rear I/O: 1 x DisplayPort(Only LE-37N7), 1 x HDMI, 4 x USB3.1 Gen2, 2 x LAN, 1 x RS232.

  • Extended interface: One PCIE Mini card (Support mSATA), one M.2 (Key E).

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface.

  • Power requirement: DC input 9~35V.

BackToTop

  Specification


Form Factor

3.5" Single Board Computer

Processor

Intel® Whiskey Lake U Processor

Package Type: FCBGA1528

Memory

2 x 260-pin DDR4 2400 MHz SO-DIMM up to 32GB (Support Non-ECC, unbuffered memory)

Integrated Graphics

Intel® Gen 9.5 integrated HD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Intel® built-in 2 x Serial ATA3 interface up to 600MB/s

Support RAID 0, 1 and Intel Rapid Storage Technology.

VGA Interface

Onboard 11-pins connector (Only LE-37NT7)

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 Display port Interface  Onboard Display port connector (Only LE-37N7)
 HDMI Interface  Onboard HDMI connector

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x Intel® i219-LM Gigabit PHY LAN(Support iAMT 12.0), 1 x Intel® i210-AT Gigabit LAN

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIE Mini card (Support mSATA), 1 x M.2 (Key E)

Internal I/O Port

2 x SATA3, 2 x RS232/422/485, 1 x RS232, 4 x USB2.0, 1 x DVI, 1 x LVDS, 1 x LCD inverter, 1 x VGA(Only LE-37NT7), 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x PS/2(Keyboard & Mouse), 1 x SMBus

Rear I/O Port

1 x DisplayPort(Only LE-37N7), 1 x HDMI, 4 x USB3.1 Gen2, 2 x LAN

Power Requirement

 DC input 9~35V

Board Dimension

146 mm x 101 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 80°C

Relative Humidity

10%~90%, non-condensing



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LE-37N7

With i7-8665UE + Cooler fan, support HDMI, LVDS, DP

 LE-37NT7

With i7-8665UE + Cooler fan, support HDMI, LVDS, Header for VGA or 2nd LVDS (Note)

ADP-3355

DisplayPort to VGA module

ADP-3460

DisplayPort to LVDS module

Note: There are two module (ADP-3355, ADP-3460), and you can choose one to support VGA or 2nd  LVDS.
