LE-37T
3.5 inch Miniboard with  Intel® AtomTM Processor X Series(Amston Lake)
Support Intel® AtomTM Processor X Series(Amston Lake).
DDR5 SO-DIMM up to 4800MHz 32GB, DisplayPort++, LVDS, 1 x Type-C (DP Alt. Mode), 1 x HDMI,
2 x 2.5Giga LAN, 2 x USB 3.2 Gen2, 2 x USB 2.0, 4 x RS232, 2 x RS232/422/485, 1 x SATA3, GPIO,
SMBus, HD Audio, 1 x M.2 (Key E 2230), 1 x M.2 (Key M 2280) Gen3 PCIe x2  for NVMe


view larger image


-
Overview
-
Feature
-
Specification
-

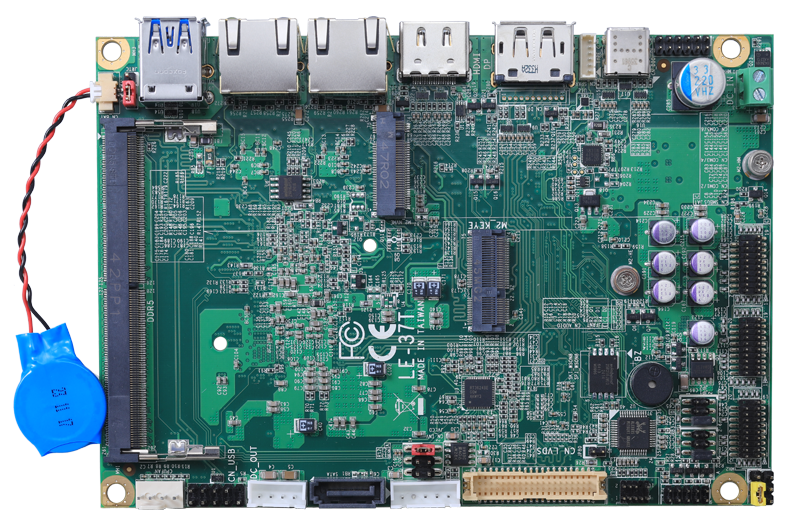

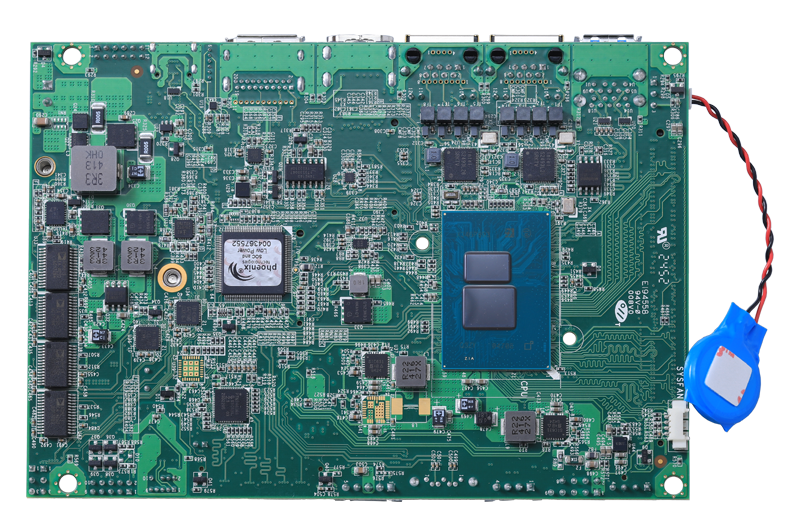

Product Image    BOTTOM    I/O
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview
Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LE-37T 3.5 inch Miniboard embedded system board based on Intel® AtomTM Processor X
Series(Amston Lake).

The LE-37T 3.5 inch Miniboard platform is designed for Intel® AtomTM  Processors in the FCBGA1264
package support DDR5 memory (One DDR5 SO-DIMM up to 4800 MHz 32GB).

The platform is based on Intel® UHD Graphics, this GPU offers 32 execution units (EUs) clocked at up to
800Mhz(depending on the CPU model). Displays can be connected via one LVDS, one HDMI, one DP++,
one Type-C (DP Alt Mode) port for displays can be controlled simultaneously. LE-37T offers lots of
features including high-speed data transfer interfaces such as 2 x USB3.2 Gen2 and 1 x SATA3, equipped
with triple Gigabit Ethernet, and comes with 4 x RS232 and 2 x RS232/422/485, 2 x USB2.0, Intel® High
Definition Audio, 1 x M.2 Key E 2230, 1 x M.2 Key M 2280 support Gen3 PCIe x4 for NVMe.

BackToTop

  Key Feature



  • CPU: Intel® AtomTM Processor X Series(Amston Lake) FCBGA1264 package.

  • Memory: 1 x DDR5 SO-DIMM up to 4800MHz 32GB.

  • Integrated Graphics: Intel® UHD Graphics

  • LVDS interface: Onboard LVDS connector.

  • DisplayPort++ interface: Onboard DisplayPort++ connector.

  • HDMI interface: Onboard HDMI connector.

  • LAN Interface: 2 x RJ45 LAN.

  • Serial ATA: 1 x SATA3(Note1).

  • Audio: High Definition Audio with 3Watt amplifier for 4 ohm speaker.

  • Internal I/O: 1 x SATA3, 4 x RS232, 2 x RS232/422/485, 2 x USB2.0, 1 x LVDS, 1 x LCD inverter conector, 1 x GPIO, 1 x SMBus, 1 x Audio, 1 x Speaker_Out with Amplifier(Note2).

  • Rear I/O: 1 x DisplayPort++, 1 x HDMI, 1 x Type-C (DP Alt. Mode), 2 x USB3.2 Gen2, 2 x LAN.

  • Expansion: 1 x M.2 Key M 2280, 1 x M.2 Key E 2230.

  • GPIO interface: 8-bit Digital I/O interface.

  • Power requirement: DC input 9~35V.

BackToTop

  Specification


Form Factor

3.5" Single Board Computer

Processor

Intel® AtomTM Processor X Series(Amston Lake)

Package Type: FCBGA1264

Memory

1 x 262-pin DDR5 SO-DIMM up to 4800MHz 32GB (Support Non-ECC, unbuffered memory)

Integrated Graphics

Intel® UHD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Intel® built-in 1 x Serial ATA3 interface up to 600MB/s(Note1)

LVDS Interface

Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 DisplayPort++ Interface Onboard DisplayPort++ connector
 HDMI Interface Onboard HDMI connector

Audio Interface

Realtek ALC888S HD Audio with 3Watt amplifier for 4 ohm speaker

LAN Interface

2 x Intel® I226 Gigabit LAN (Up to 2.5GbE)

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Expansion

1 x M.2 Key M 2280 support Gen3 PCIe x4 for NVMe

1 x M.2 Key E 2230 for Wi-Fi and Bluetooth

Internal I/O Port

1 x SATA3(Note1), 2 x RS232/422/485, 4 x RS232, 2 x USB2.0,

1 x LVDS, 1 x LCD inverter connector, 1 x GPIO, 1 x SMBus,

1 x Audio (MIC-in & Line-out), 1 x Speaker_Out with Amplifier(Note2)

Rear I/O Port

1 x DisplayPort++, 1 x HDMI, 2 x USB3.2 Gen2, 2 x LAN, 1 x Type-C (DP Alt. Mode).

Power Requirement

DC input 9~35V

Board Dimension

146 mm x 101 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 80°C

Relative Humidity

10%~90%, non-condensing

Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LE-37TX4

With AtomTM x7433RE + Heat Spreader, support HDMI, LVDS, DP++, Type-C (DP Alt. Mode), 2.5G LAN

OEM LE-37TX8

With AtomTM x7835RE + Cooler Fan, support HDMI, LVDS, DP++, Type-C (DP Alt. Mode), 2.5G LAN

OEM LE-37TX2

With AtomTM x7213RE + Heat Spreader, support HDMI, LVDS, DP++, Type-C (DP Alt. Mode), 2.5G LAN

OEM LE-37TX1

With AtomTM x7211RE + Heat Spreader, support HDMI, LVDS, DP++, Type-C (DP Alt. Mode), 2.5G LAN

Note1: SATA port for OEM.

Note2: Speaker_Out with Amplifier with 3Watt amplifier for 4 ohm speaker.
