LP-17C

 Pico-ITX miniboard with Intel® Atom™ Processor X Series(Amston Lake)

Onboard Intel® Atom™ Processor X Series(Amston Lake)

Onboard HDMI, Type-C, Gigabit LAN, USB3.2 Gen2 & USB2.0, HD Audio, M.2 (Key E & M)

-

Overview

-

Feature

-

Specification

-

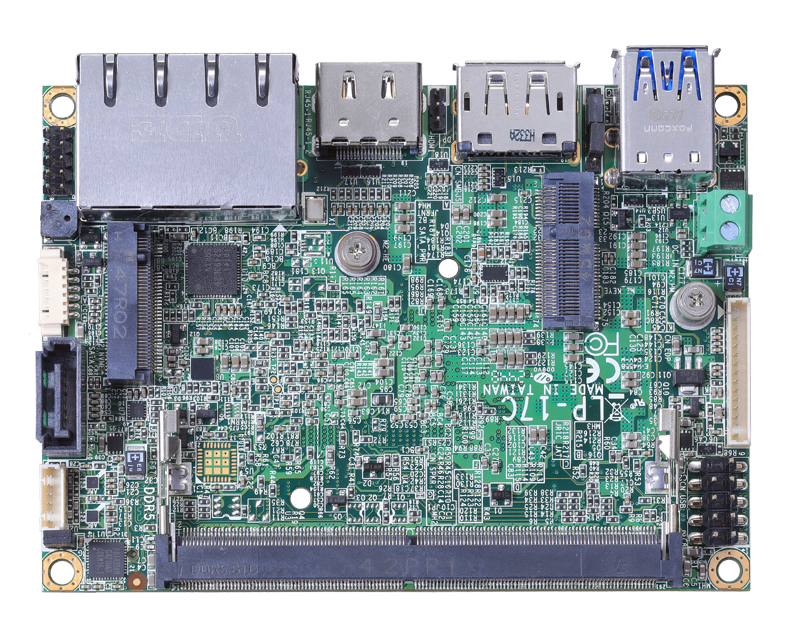

Product Image    BOTTOM    I/O

-

Ordering Information

-

Datasheet (PDF format)

-

Technical Document

Overview

   Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, launched a Pico-ITX form factor LP-17C consists of the Intel® Atom™ Amston Lake processors, combined with the Intel®  Express chipset, Integrated Intel® Graphics Technology. The COMMELL LP-17C platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.

      The LP-17C Pico-ITX Miniboard is designed for Intel® Atom™ Amston Lake Processor X supporting one DDR5 SO-DIMM up to 32GB and running 4800 MHz No ECC function. The platform is based on Intel® Graphics Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, LP-17C integrated HDMI, Type-C (DisplayPort Alt.Mode) for display support to provide its advanced solutions for imaging, machine vision and digital signage applications.

      LP-17C offers lots of features including high-speed data transfer interfaces such as 1 x USB 3.2 Gen2, equipped with two 2.5 Gigabit Ethernet and it comes with 1 x RS232/RS422/RS485, 2 x USB2.0, Intel® High Definition Audio, one M.2 (Key E 2230) and one M.2 (Key M 2280).

BackToTop

Key Feature

• CPU: Intel® Atom™ Amston Lake Processor X Series FCBGA1264 package

• Memory: 1 x DDR5 4800 SO-DIMM up to 32GB

• Integrated Graphics: Intel® UHD Graphics

• DisplayPort : Onboard DisplayPort++ connector, Type-C (DP Alt.Mode).

• HDMI interface: Onboard HDMI connector

• Header for LVDS: 15-pin connector (Add ADP-3460 supports LVDS)

• Serial ATA: Support 1 x SATA3 with 600MB/s (6Gb/s) transfer rate(Note1)

• Audio: Realtek ALC888S HD Audio with 3Watt amplifier for 4 ohm speaker

• LAN Interface: 2 x Intel® i226 Gigabit LAN (up to 2.5GbE)

• Extended interface: 1 x M.2 2230 (Key E) for Wi-Fi and Bluetooth, 1 x M.2 2280 (Key M) support Gen3 PCIe x4 for NVMe

• Internal I/O: 1 x SATA3(Note1), 2 x USB2.0, 1 x SMBus, 1 x RS232/RS422/RS485, 1 x GPIO, 1 x DC_OUT, 1 x Speaker_Out with Amplifier(Note2), 1 x Header for eDP or LVDS (Add ADP-3460 supports LVDS).

• Rear I/O: 1 x DisplayPort++, 1 x HDMI, 1 x Type-C (DP Alt. Mode), 1 x USB3.2 Gen2, 2 x LAN.

• Power: DC input 12V ± 5%

BackToTop

Specification

Download Datasheet @ PDF format

BackToTop

Ordering Information

      LP-17CX4

With Atom^TM x7433RE + Heat Spreader, support HDMI, eDP, DP++, Type-C (DP Alt. Mode), 2.5G LAN

OEM  LP-17CX8

With Atom^TM x7835RE + Cooler Fan, support HDMI, eDP, DP++, Type-C (DP Alt. Mode), 2.5G LAN

OEM  LP-17CX2

With Atom^TM x7213RE + Heat Spreader, support HDMI, eDP, DP++, Type-C (DP Alt. Mode), 2.5G LAN

OEM  LP-17CX1

With Atom^TM x7211RE + Heat Spreader, support HDMI, eDP, DP++, Type-C (DP Alt. Mode), 2.5G LAN

 Note1: SATA port for OEM.

Note2: Speaker_Out with Amplifier with 3Watt amplifier for 4 ohm speaker.
