LV-6717
Mini-ITX  Motherboard support  Intel® Core™ Ultra Processor (Arrow Lakes-S)
Support Intel® Core™ Ultra Processor (Arrow Lakes-S) with W880 chipset.
2 x DDR5 up to 128 GB, onboard HDMI, LVDS, DisplayPort ++, 2 x SATA3, 2 x 2.5Giga LAN, HD Audio,
2 x USB 2.0, 6 x USB 3.2 Gen2, 2 x RS232/422/485, 2 x RS232, SMBus, GPIO, 2 x M.2 2280 (Key M), 1 x
M.2 2230 (Key E), 1 x PCIe x16 Slot

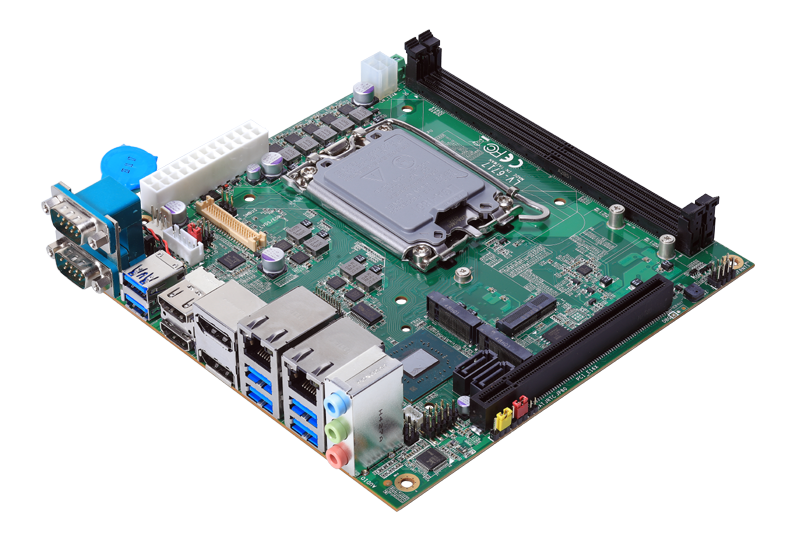

view larger image
















-



Overview








-



Feature








-



Specification








-

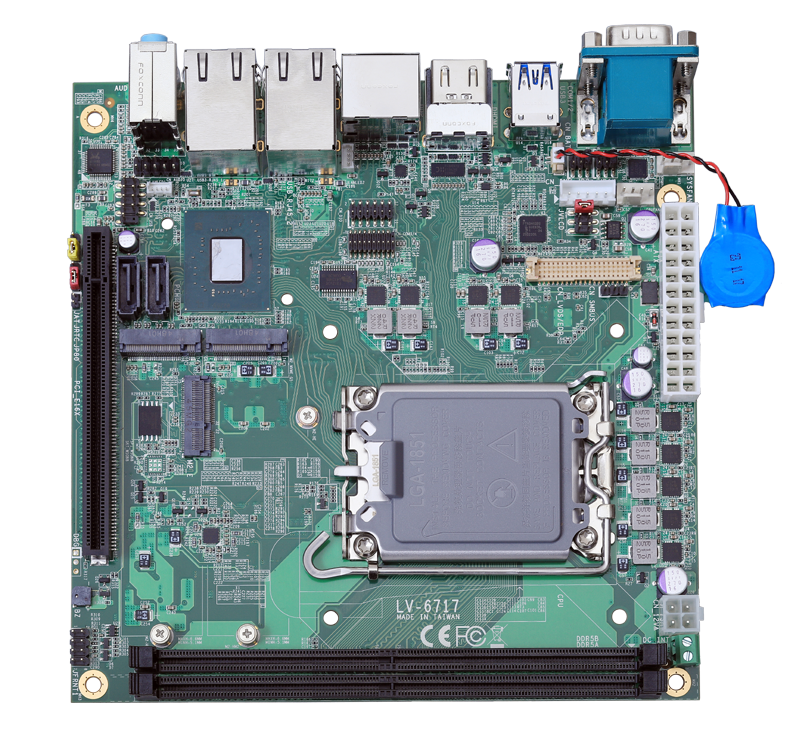

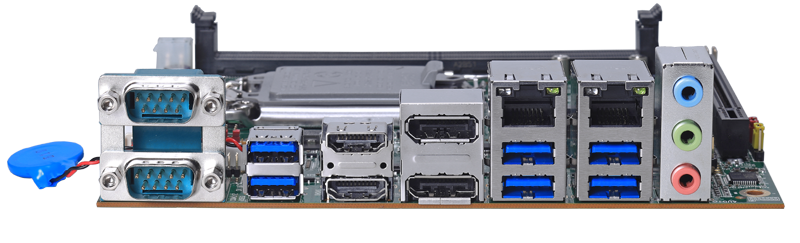

Product Image      I/O








-



Ordering Guide








-



Datasheet (PDF format)








-



Technical Document












  Overview









Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers,
unveiled LV-6717 Mini-ITX Mobile Motherboard based with Intel® Core™ Ultra processor.
Support DDR5 memory (Two DDR5 UDIMM sockets up to 128GB).


						The platform is based on Intel® Xe Graphics, Technology that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. Displays can be connected via one LVDS, two HDMI, and two DP++ for display can be controlled simultaneously support to provide its advanced solutions for imaging, machine vision and digital signage applications. LV-6717 offers lots of features including high-speed data transfer interfaces such as 6 x USB3.2 Gen2 and 2 x SATAIII, equipped with double Gigabit Ethernet and comes with 2 x RS232 and 2 x RS232/422/485, 2 x USB2.0, Intel® HD Audio,
						and 2 x M.2 (Key M 2280), 1 x M.2 (Key E 2230), 1 x PCIe X16 slot.







BackToTop











  Key Feature











  •

    CPU: Intel® Core™ Arrow Lake-S Ultra Processors FCLGA1851 package.
  •


			Memory: 2 x DDR5 UDIMM sockets up to 128GB.
    •

  •


			DisplayPort interface: Onboard DisplayPort 1.4a.
    •

  •


			LVDS interface: Onboard LVDS.
    •

  •


			HDMI interface: Onboard HDMI 2.1.
    •

  •


			LAN
            Interface: 2 x 2.5G LAN.
    •

  •



			Serial ATA: 2 x SATA3.
    •

  •


			Audio: Realtek ALC888S HD Audio.
    •

  •



			Internal I/O: 2 x SATA3, 2 x RS232, 2 x USB2.0, 1 x GPIO, 1 x SMBus, 1 x Audio, 1 x LCD inverter, 1 x LVDS.
    •

  •


			Rear I/O: 6 x USB3.2 Gen2, 2 x LAN, 2 x RS232/422/485, 1 x Audio, 2 x HDMI, 2 x DisplayPort ++.
    •

  •


			Expansion: 1 x PCIE X 16 slot, 2 x M.2 (Key M), 1 x M.2 (Key
			E).
    •

  •


			GPIO interface: 8-bit
			Digital I/O interface.
    •

  •


			External
			Audio: Line-in, Line-out, MIC-in.
    •

  •


			Power
			requirement: Standard 24-pin ATX power supply (20-pin is compatible) and 4-pin 12V or DC input 12V.
    •









BackToTop








  Specification












            Form Factor



			Mini-ITX Motherboard




Processor




            Intel® Core™ Arrow Lake-S Ultra Processor


            Package Type: FCLGA1851





            Memory





			2 x DDR5 UDIMM sockets up to 128 GB, support ECC and Non-ECC, UDIMM / CUDIMM module up to 6400 MHz memory







            Real
            Time Clock




	Chipset
 integrated RTC with onboard lithium battery






Watchdog
            Timer



			Generates
                    a system reset with internal timer for 1min/s ~ 255min/s







Serial ATA Interface



			2 x Serial ATA3 interface up to 600MB/s








            LVDS Interface


Onboard 18/24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply




 DisplayPort Interface

			 Onboard DisplayPort 1.4a


             HDMI Interface

			 Onboard HDMI 2.1





Audio
            Interface


Realtek ALC888S HD Audio







LAN
            Interface



            1 x Intel® I226-LM Gigabit LAN (Up to 2.5GbE)

            1 x Intel® I226-V Gigabit LAN (Up to 2.5GbE)






GPIO Interface



			Onboard
                    programmable
                    8-bit digital I/O interface








			Expansion


1 x M.2
			Key M 2280 support PCIe Gen4 for NVMe
1 x M.2
			Key M 2280 support PCIe Gen5 for NVMe

			1 x M.2 Key E 2230 for Wi-Fi and Bluetooth


			1
            x PCIE X 16 slot support PCIe Gen5










            Internal I/O
            Port




			2 x SATA3, 2 x RS232, 2 x USB2.0, 1 x GPIO, 1 x SMBus, 1 x Audio (MIC-in & Line-out), 1 x LCD inverter, 1 x LVDS.







            Rear I/O
            Port



			6 x USB3.2 Gen2, 2 x LAN, 2 x RS232/422/485, 2 x HDMI, 2 x DisplayPort ++, 1 x Line-in, 1 x Line-out, 1 x MIC-in







            Power Requirement




			Standard
            24-pin ATX power supply (20-pin is compatible) and 4-pin 12V or DC input 12V







 Board Dimension





			170 mm x 170 mm (L x
            W)







Temperature




			Operating
            within 0 ~
            60°C (32°F ~ 140°F)



			Storage
            within -20 ~ 80°C (-4°F ~ 176°F)





Relative Humidity



			10% ~ 90%, non-condensing











Download
Datasheet @ PDF format








BackToTop









  Ordering Guide





LV-6717

	With Intel® Core™ Ultra Processor, W880 , support HDMI, LVDS, DP ++, 2.5G LAN
