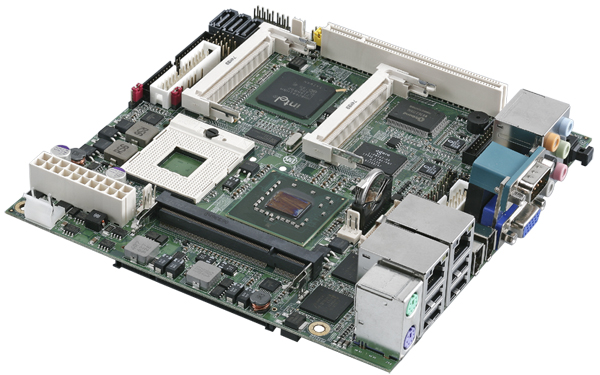

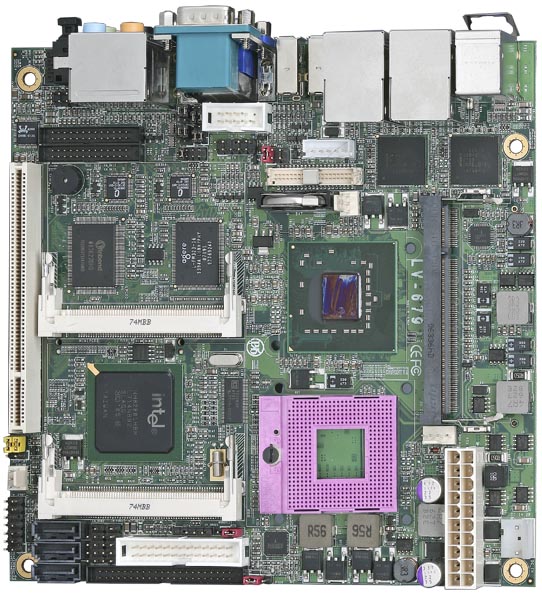

Intel® Core™ 2 Duo mobile Mini-ITX Motherboard
Mini-ITX Mainboard with Intel® GME965 provides platform for
Intel® Core™ 2 Duo Merom with Socket P @ FSB 800 MHz, DDR2
up to 3GB, 2 Giga LAN, CRT, LVDS, HDTV, DVI, 1394, SATA,
HD Audi, Digital I/O, 2 x COM, PCI, 2 x Mini PCI
|
Overview
|
|
Taiwan Commate Computer
Inc.(COMMELL), the worldwide leader of Industrial
Mini-ITX mainboard, introduced the Mini-ITX LV-679 that
mainboard incorporates an Intel Socket P
pin-out compatible with Intel Core 2 Duo Mobile
Merom processors @ FSB 533/800MHz support for T7700,
T7500, T7300, T7100 , Validated
with the Mobile GME965 Express chipset, providing
excellent flexibility for developers of embedded
applications by offering outstanding graphics and I/O
bandwidth, asset management capabilities, storage speed
and reliability.
The
LV-679 provides these advantage features & an
excellent performance-per-watt choice in the Mini-ITX
form factor, it is optimized for a broad range of
embedded applications such as interactive clients,
gaming, medical, POS, Digital Signage, Surveillance and
industrial automation equipment.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel® Core™
2 Duo processor Merom with Socket P @ 800 MHz FSB
-
Memory: 2 x 200-pin DDR2 533/667MHz up to
3.0 GB.
-
Chipset:
Intel®
GME965 and ICH8M.
-
VGA
Interface: built-in Intel®
extreme GMA X3100 Technology.
-
LVDS
interface: Onboard 24-bit Dual channel LVDS connector.
-
DVI
Interface: Onboard 26-pin DVI interface
-
Enhanced
IDE: One
UltraATA33 IDE interface supports up to 2 ATAPI Devices.
-
Serial ATA:
3
x Serial ATA interface with 300 MB/s transfer rate.
-
LAN
Interface: 2
x Intel® 82573L Gigabit Ethernet .
-
Audio: Realtek
ALC888 HD Audio.
-
Solid
State Disk:
IDE1 supports 44-pin DiskOnModule with +5V power supply.
CompactFlash Type-II socket on the solder side .
-
IEEE
1394: 2
x IEEE1394 port.
-
GPIO
interface: Onobard
8-bit Digital I/O interface.
-
Extended
interface: 2 x
Mini-PCI socket and 1 x PCI slot.
-
Rear
I/O
ports:
PS/2 Keyboard/Mouse, VGA, LAN, USB 2.0, Audio, SPDIF,
IEEE 1394 COM.
|
|
BackToTop |
Specification
|
|
Form Factor |
Mini-ITX Motherboard (170 x 170 mm) |
|
CPU |
Intel®
Core™ 2 Duo Merom
with Socket P @ 800 MHz FSB |
|
Memory |
2
x DDR2 533/667
MHz SODIMM
up to 3.0 GB |
|
Chipset |
Intel®
GME965 &
ICH8M |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
|
Watchdog
Timer |
Generates
a system reset
internal
timer for 1sec/min ~ 255 sec/min
|
|
Power
Management |
ACPI
1.0 compliant, supports power saving mode
|
|
PCI
Enhanced
IDE |
1 x Ultra ATA/33 IDE channel up to 2 ATAPI devices
|
|
VGA Interface |
Intel®
GME965 integrated GMA (Graphic Media Accelerator) X3100 Technology |
|
Video
Memory |
Up to
384 MB shared with system memory |
|
Serial ATA
Interface |
3
x Serial ATA II Interface with 300 MB/s transfer rate.
|
|
Audio
Interface |
Realtek ALC888 HD Audio
|
|
LAN Interface |
2
x Intel® 82573L Gigabit Ethernet |
|
Solid
State Disk |
IDE1
supports 44-pin DiskOnModule +5V power supply
CompactFlash
Type-II on the solder side.
(CompactFlash
shared with IDE bus)
|
|
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
|
Extend
Interface |
1
x PCI slot & 2
x Min-PCI socket
|
|
External I/O
Port |
2
x RJ45 LAN
ports, 1 x DB15 VGA
port,1 x PS/2 Keyboard / Mouse ports, 2 x
IEEE 1394 ports, 4 x USB 2.0 ports, Audio, SPDIF, 1 x COM
|
|
Internal I/O
Port |
1 x RS232/422/485, 1 x silm FDD, 1 x IrDA , 1 x LPT
4 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN
LVDS and LCD inverter connector, 2 x DVI, 1 x TV-out
|
|
Power Requirement |
Standard
20-pin ATX power supply or
9V ~
24V full range DC input (8 ~ 30V is operative) |
|
Board Dimension |
170mm x 170 mm (L x
W) |
|
Operation
Temperature |
0 ~
60ºC
(32 ~ 140ºF)
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
LV-679D
|
Intel® Core™
2 Duo Mini-ITX Motherboard with
onboard VGA,
LAN, SATA, USB 2.0 ports Audio, IEEE1394,
RS232/422/485, Min-PCI, PCI, LVDS, 1 x DVI interface
|
|
LV-679D2C
|
Same
as above, but with 2 x DVI interface and CompactFlash socket on
the solder side.
|
|
CMB-679 |
Barebone system for LV-679 series board w/ 12V/80W
adapter |
|
MP-954 |
Mini-PCI Card support 3 x RS232 & 1 x
RS232/422/485 |
|
MP-323 |
Mini-PCI Card support 3 x IEEE 1394 |
|
MP-541D2 |
Mini-PCI Card support 2 x Gigabit LAN |
|
MP-9116 |
Mini-PCI 4 ~ 16 channel Capture card |
|
MP-878D |
Mini-PCI Capture card |
|
MP-2501 |
Mini-PCI Wireless card |
