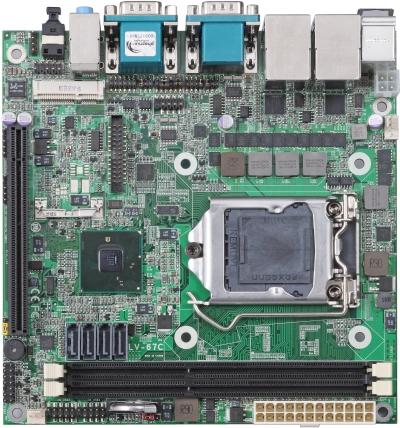

Intel® Core™ i7 / i5 / i3 / Pentium® Mini-ITX Motherboard
Support Intel® Core™ i7 / i5 / i3 / Pentium® with Intel® BD82Q57 PCH
8GB DDR3, 2 x Gbit LAN, 8 x USB 2.0, 4 x COM, HD Audio
8-bit digital I/O, 4 x SATAII with RAID, PCIe X16, MiniPCIe & Mini-PCI socket
|
Overview
|
|
This
platform is ideal for developing high-performance
systems for industrial control and automation, retail,
gaming, print imaging and digital signage.
|
|
BackToTop |
Key Feature
|
-
CPU: Intel® Core™ i7/
i5/ i3/ Pentium desktop in the LGA1156 socket.
-
Memory: Two DDR3 1066/1333
MT/s DIMM up to 8GB.
-
Chipset:
Intel® BD82Q57 PCH.
-
Display
Interface: Intel® 32nm Core™
i5/i3 integrated HD Graphics Technology, VGA and DVI output
interface.
-
LAN
Interface: 2
x Intel® 82574L Giga LAN.
-
Serial ATA:
Support four SATAII up to 300MB/s with RAID 0,1,5,10.
-
Audio: Intel® Q57
integrated with Realtek ALC888 High Definition Audio.
-
I/O
ports: 3 x RS232 and 1 x RS232/422/485 Serial Ports, 8
x USB2.0 ports, 1 x DB15 VGA port, 1 x PS/2 keyboard and
mouse ports.
-
Extended
interface: One
x16 PCIe, 1 x Mini-PCIe & 1 x Mini-PCI socket.
-
GPIO
interface: Onboard programmable 8-bit Digital
I/O interface.
-
WatchDog
Timer: 256-level generates NMI or system reset
programmable watchdog timer.
|
|
BackToTop |
Specification
|
|
Form Factor |
Mini-ITX
Motherboard |
|
Processor |
Intel® Core™
i7 / i5 / i3 / Pentium®
Desktop processor
Package
Type: FCLGA1156
Bus
Speed: 2.5GT/s DMI |
|
Memory |
2
x 240-pin DDR3 1066/1333 MT/s DIMM up to 8GB
|
|
Chipset |
Intel®
BD82Q57 PCH (Platform Controller Hub) |
|
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
|
Watchdog
Timer |
Generates
a system reset with internal timer for 1min/s ~ 255min/s
|
|
Power
Management |
ACPI
1.0 compliant, supports power saving mode
|
|
Serial ATA
Interface |
Intel®
Q57 PCH built-in 4 x Serial ATA II interface up to
300MB/s
Support
RAID 0, 1, 5, 10 and
Intel®
Rapid Storage Technology
|
|
VGA
Interface |
Intel® Core™ integrated HD Graphics Technology |
|
Video
Memory |
Up to
1.7GB shared with system memory |
|
Audio
Interface |
Intel® integrated Q57 with Realtek ALC888 HD Audio
|
|
LAN
Interface |
2
x Intel® 82574L Gigabit Ethernet Controller |
|
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
|
Extended
Interface |
One
x16 PCIe, 1
x Mini-PCIe, 1
x Mini-PCI
|
|
Internal I/O
Port
|
1
x RS232/422/485, 1 x GPIO, 1 x CDIN, 1 x SMBus,
1
x Audio, 1 x IrDA, 4 x USB2.0
|
|
External I/O
Port |
1 x PS/2 keyboard/mouse, 2 x RJ45, 1
x VGA, 4 x USB2.0,
1 x Audio, 3 x RS232
|
|
External Audio |
Line-in,
MIC-in, Front, Rear, Center/Subwoofer and optical SPDIF
|
|
Power Requirement |
Standard
24-pin ATX power supply and P4 4-pin 12V.
(20-pin is compatible) |
|
Board Dimension
|
170mm x 170 mm (L x
W)
|
|
Temperature |
Operating
within 0 ~
60°C
Storage
within -20 ~ 85°C
|
|
|
Download
Datasheet @ PDF format
 |
|
BackToTop |
Ordering Guide
|
|
LV-67C
|
2
x Intel Gbit LAN, 8 x USB2.0, x16 PCIe, Mini-PCIe, Mini-PCI,
4 x
COM,
HD Audio,
4 x SATA, 1 x IrDA, 1 x VGA, 1 x DVI
|
