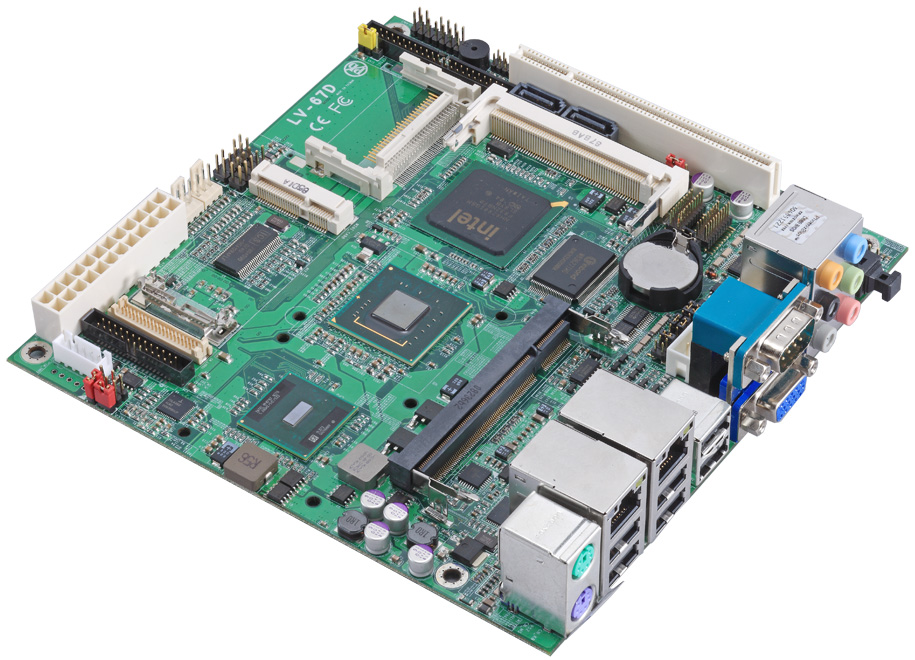

Fanless Mini-ITX solution based on Intel® Atom processor
Mini-ITX with Intel® Atom N270 processor, DDR2 up to 2.0 GB, 2 x Giga LAN,
Onboard VGA, HDTV, LVDS or DVI, SATA, HD Audio, 6 x COM, 8 x USB 2.0
1 x PCI Express Mini card & 1 x Mini-PCI socket, 1 x PCI slot
|
Overview
|
Taiwan
Commate Computer Inc.(COMMELL), the worldwide
leader of Industrial Mini-ITX mainboard, introduced
the Mini-ITX LV-67D that mainboard based
on the Intel 945GSE Express Chipset, supports Intel Atom
processor N270, implemented in 45nm
technology, is power-optimized and delivers robust
performance-per-watt for cost-effective embedded
solutions. The board offers an excellent
solution for embedded market such as digital signage,
kiosks, POS, thin clients, digital security, residential
gateways, and commercial and industrial control.
The
LV-67D Mini-ITX mainboard consists of the intel
82945GSE Graphic Memory Controller Hub and Intel I/O
Controller Hub 7-M, features power-efficient 32-bit
3D graphics core based on Intel GMA 950
architecture with LVDS or DVI, CRT, HDTV, supports
multiple graphics display.
COMMELL's
LV-67D Mini-ITX mainboard supports DDR2
SO-DIMM SDRAM memory up to 2GB of
system memory, and
provides rich I/O capabilities, comes with PS/2
Keyboard and Mouse, 5 x RS232C and 1 x
RS232/422/485, Networking is provided by two Intel
82574L Giga LAN, 8 x USB2.0 ports, It offers
Realtek ALC888 HD audio, 2 x SATA interface
data transfers up to 150MB/s, and Compact Flash
socket. The board delivers flexibility
high-bandwidth expansion slots with 1 x Mini
PCI, one PCI slot and one PCI Express mini
card for custom system configurations and future add-in
card upgrades.
|
BackToTop |
Key Feature
|
-
CPU: Intel®
Atom N270 (1.6 GHz ) processor @ 533 MHz FSB
-
Memory: DDR2 400/533
MHz up to 2.0 GB.
-
Chipset:
Intel®
945GSE and ICH7M.
-
VGA
Interface: built-in Intel®
extreme GMA 950 Technology.
-
LVDS
interface: Onboard 1 x 18-bit Dual channel LVDS connector.
-
DVI/LVDS
interface: Optional DVI or secondary18/ 24-bit LVDS interface
-
Serial ATA:
2
x Serial ATA interface with 150 MB/s transfer rate.
-
LAN
Interface: 2
x Intel®
82574L Gigabit Ethernet .
-
SSD
Interface: 1 x CompactFlash type II socket
-
Audio:
Intel ICH7M Realtek
ALC888 7.1 CH HD Audio.
-
GPIO
interface: Onboard
8-bit Digital I/O interface.
-
Extended
interface: 1 x
PCI Express Mini card & 1 x Mini-PCI socket , 1 x PCI slot
-
External
I/O
ports:
1 x PS/2 Keyboard/Mouse , 2 x LAN , 6 x USB , VGA , COM , Audio
, SPDIF
|
BackToTop |
Specification
|
Form Factor |
Mini-ITX Motherboard
(170 x 170 mm) |
CPU |
Intel®
Atom N270 ( 1.6 GHz )
@ 533 MHz FSB |
Memory |
1
x DDR2 SO DIMM support 400/533
MHz up to 2.0 GB |
Chipset |
Intel®
945GSE
& ICH7M |
Real
Time Clock
|
Chipset
integrated RTC with onboard lithium battery
|
Watchdog
Timer |
Generates
a system reset
internal
timer for 1sec/min ~ 255 sec/min
|
Power
Management |
ACPI
1.0 compliant, supports power saving mode
|
VGA Interface |
Intel®
945GSE integrated GMA 950 Technology |
LVDS
Interface |
18-bit dual channel LVDS interface
|
DVI/LVDS
Interface |
Optional DVI or secondary 18/24-bit
dual channel
LVDS interface
|
Serial ATA
Interface |
2
x Serial ATA Interface with 150 MB/s transfer rate.
|
PCI
Enhanced IDE |
1
x Ultra ATA/33 IDE channel up to 2 ATAPI devices
|
Solid
State Disk |
IDE
supports 44-pin DiskOnModule +5V power supply
1
x CompactFlash Type II socket.
|
Audio
Interface |
Intel ICH7M integrated with Realtek ALC888 7.1CH HD Audio
|
LAN Interface |
2
x Intel®
82574L Gigabit Ethernet |
GPIO
Interface |
Onboard
programmable
8-bit digital I/O interface
|
Extend
Interface |
1
x PCI Express Mini card & 1 x Min-PCI
socket,
1
x PCI slot
|
External I/O
Port |
1 x PS/2 Keyboard / Mouse ,
2 x RJ45 LAN , 6 x USB ,
1 x
VGA , 1 x COM , 1 x Audio , 1 x SPDIF
|
Internal I/O
Port |
1 x RS232/422/485 & 4 x RS232 , 1 x IrDA , 2
x USB 2.0 ,
1 x 8-bit
GPIO , 1 x Audio , 1 x CDIN ,
LVDS and LCD
inverter connector, 1 x HDTV
, 1 x FDD
|
Power Requirement |
Standard
ATX power supply |
Board Dimension |
170mm x 170mm (L x
W) |
Operation
Temperature |
0 ~
60ºC
(32 ~ 140ºF)
|
|
Download
Datasheet @ PDF format
 |
BackToTop |
Ordering Guide
|
LV-67D
|
Intel®
Atom Mini-ITX motherboard with
Dual Intel Giga LAN
, 2 x SATA ,
USB
2.0 , HD Audio , 1 x RS232/422/485
& 5 x RS232, CompactFlash
socket
, 1 x PCI Express Mini card and Mini-PCI
socket , 1 x PCI slot ,
onboard
VGA , HDTV , 18-bit LVDS
|
LV-67DD |
Intel®
Atom Mini-ITX motherboard with
Dual Intel Giga LAN
, 2 x SATA ,
USB
2.0 , HD Audio , 1 x RS232/422/485 & 5 x RS232, CompactFlash
socket
, 1 x PCI Express Mini card and Mini-PCI
socket , 1 x PCI slot ,
onboard VGA , HDTV ,
18-bit LVDS , DVI
|
LV-67DX |
Intel®
Atom Mini-ITX motherboard with
Dual Intel Giga LAN
, 2 x SATA ,
USB
2.0 , HD Audio , 1 x RS232/422/485 & 5 x RS232, CompactFlash
socket
, 1 x PCI Express Mini card and Mini-PCI
socket , 1 x PCI slot ,
onboard VGA , HDTV ,
1 x 18-bit LVDS & secondary 18/ 24-bit LVDS
|
MPX-574D |
PCI
Express Mini card support 1 x Intel Giga LAN |
MPX-574D2 |
PCI
Express Mini card support 2 x Intel Giga LAN |
ADP-L2T |
18-bit LVDS to TTL module
|
BackToTop
[Single
Board Computer Index]
|
|
