LV-67L
Mini-ITX Embedded Intel® Celeron® Processor 807UE or  847E
    Mini-ITX Miniboard based on Intel Celeron Processor 807UE/847E  , Intel® HM65
    Express Chipset with DDR3 SDRAM, VGA, 24-bit Dual channel LVDS Interface, DVI,
   Giga LAN, 6 x COM , HD Audio, 10 x USB, SATAIII , LPC, Mini-PCIE, PCI-Express X16 slot,
   1 x SIM socket.GPIO, DC 9V~24V


view larger image





-

Overview

-

Feature

-

Specification

-

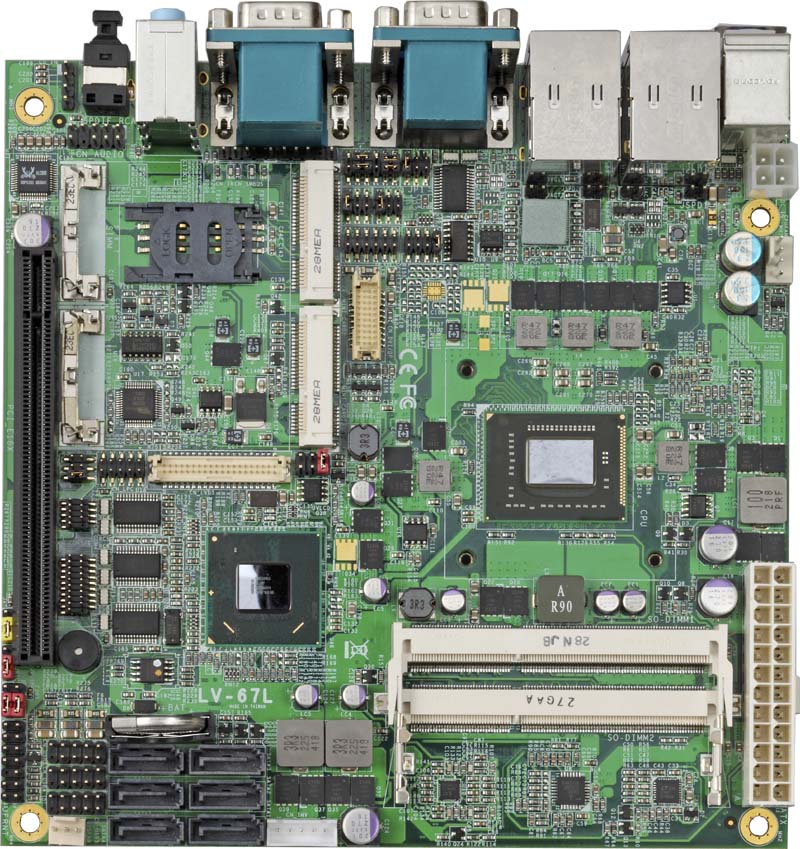

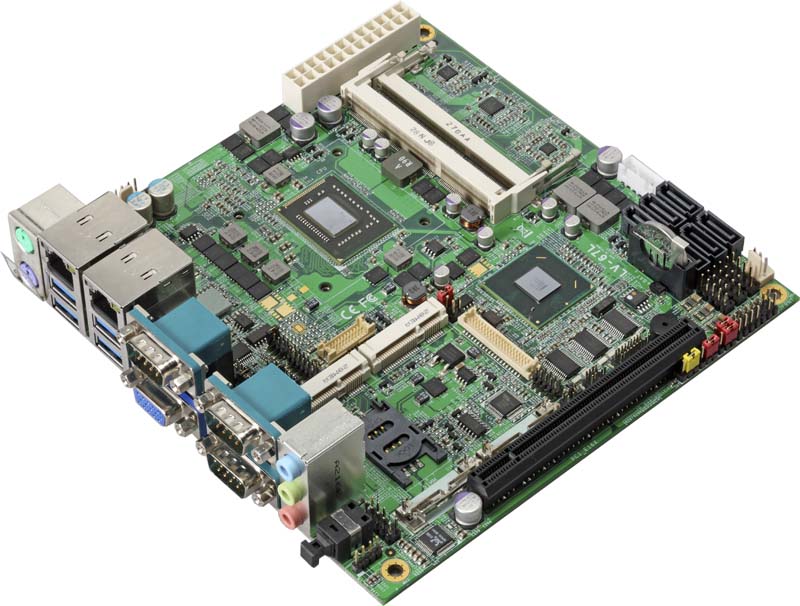

Product Image

-

Ordering Guide

-

Datasheet (PDF format)

-

Technical Document

  Overview

LV-67L consists of the Intel® Celeron® 807UE or 847E, combined with the Intel HM65 express chipset, Integrated extreme HD graphics Technology providing one DDR3-1066/1333 SO-DIMM SDRAM up to 4GB(807UE)or 16GB(847E) and an array of video interface including VGA, DVI and 24-bit Dual channel LVDS.

The LV-67L comes with PS/2 Keyboard and Mouse, 1 x RS232/422/485 and 5 x RS232, 2 x Intel Giga LAN, LPC, 4 x SATAII, 2 x SATAIII, 10 x USB2.0 ports and HD Audio are also integrated. Two PCIE mini card socket (or one PCIE mini card and one mSATA) allows for easily using any wireless card or other add-on cards. Additionally, The operating voltage of LV-67L is from 9V to 24V DC that is ideal for vehicle computer applications.

BackToTop


  Key Feature

  • CPU:  Intel Celeron Processor 807UE or  847E

  • Memory: 1 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4GB (LV-67LNB)           2 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 16GB (LV-67LBU)

  • Chipset: Intel® HM65 Express Chipset

  • Integrated Graphics: Intel® Integrated extreme HD graphics Technology

  • LVDS interface: Onboard 24-bit dual channel LVDS

  • DVI interface: Onboard 20-pin DVI interface

  • LAN Interface: 1 x Intel® 82574L Giga LAN and 1 x Intel® 82579LM Giga LAN

  • Serial ATA: Support 6 x SATA ( 4 x serial ATAII, 2 x serial ATAIII , The HM65 doesn’t support RAID function )

  • Audio: Realtek ALC888 High Definition Audio.

  • Internal I/O ports: 3 x RS232, 1 x SMBUS, 1 x GPIO, 6 x USB2.0, 1 x IrDA, 1 x DVI, 1 x LVDS, 1 x LCD inverter, 4 x SATAII, 2 x SATAIII, 1 x Audio, 1 x CDIN

  • External I/O ports: 1 x PS/2, 2 x LAN, 1 x VGA, 4 x USB2.0, 1 x RS232/422/485, 2 x RS232, 1 x SPDIF, 1 x Audio

  • Extended interface: LV-67LNB support 2 x PCIE mini card socket, 1 x SIM socket. LV-67LBU support 1 x PCIE x16 slot, 2 x PCIE mini card socket, 1 x SIM socket. Optional support mSATA(SATAII) for above models in Mini_Card2, but SATA6 will be disabled.

  • GPIO interface: Onboard programmable 8-bit Digital I/O interface.

  • Power requirement: Standard 24-bit ATX power supply or DC 9V ~ 24V (±5%)DC input

BackToTop


  Specification


Form Factor

Mini-ITX Motherboard

Processor

Intel Celeron Processor 807UE or 847E

Memory

1 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 4GB (LV-67LNB)

2 x 204-pin DDR3 1066/1333 SO-DIMM SDRAM up to 16GB

(LV-67LBU)

Chipset

Intel® HM65 Express Chipset

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

4 x Serial ATAll interface up to 300MB/s

2 x SATAlll interface up to 600MB/s. Total 6 x SATA interface

(The HM65 doesn’t support RAID function )

Integrated Graphics

Intel® Integrated extreme HD graphics Technology

LVDS Interface

24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply
 DVI Interface  Onboard 20-pin DVI interface

Audio Interface


Realtek ALC888 HD Audio

LAN Interface

1 x Intel® 82574L Gigabit Ethernet Controller

1 x Intel® 82579LM Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

LV-67LNB support 2 x PCIE mini card socket, 1 x SIM socket.

LV-67LBU support 1 x PCIE x16 slot, 2 x PCIE mini card socket, 1 x SIM socket.

Optional support mSATA(SATAII) for above models in Mini_Card2, but SATA6 will be disabled.

Internal I/O Port

3 x RS232 , 1 x GPIO,  1 x SMBUS, 1 x  Front panel HD Audio,

1 x CDIN, 1 x IrDA, 6 x USB2.0, 1 x LPC, 1 x DVI, 1 x LVDS,

1 x LCD inverter, 4 x Serial ATAII, 2 x Serial ATAIII, 1 x CDIN

External I/O Port

1 x PS/2, 2 x RJ45 LAN, 1 x VGA, 4 x USB2.0, 2 x RS232, 1 x RS232/422/485, 1 x SPDIF and 1 x 2 Channel HD Audio

Power Requirement

Standard 24-bit ATX power supply or DC 9V ~ 24V (±5%) input

Board Dimension

170mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop


  Ordering Guide

LV-67LNB

Intel® Celeron® Processor 807UE + HM65 with Onboard VGA, LVDS, DVI, LAN, USB2.0, HD Audio, SATAII, SATAIII, SMBUS, LPC, SIM, GPIO and PCI Express mini card.

LV-67LNBS

Intel® Celeron® Processor 807UE + HM65 with Onboard VGA, LVDS, DVI, LAN, USB2.0, HD Audio, SATAII, SATAIII, SMBUS, LPC, SIM, GPIO, PCI Express mini card and mSATA.

LV-67LBU

Intel® Celeron® Processor 847E + HM65 with Onboard VGA, LVDS, DVI, LAN, USB2.0, HD Audio, SATAII, SATAIII, SMBUS, LPC, SIM, GPIO and PCI Express mini card.

LV-67LBUS

Intel® Celeron® Processor 847E + HM65 with Onboard VGA, LVDS, DVI, LAN, USB2.0, HD Audio, SATAII, SATAIII, SMBUS, LPC, SIM, GPIO, PCI Express mini card and mSATA.
