  Overview

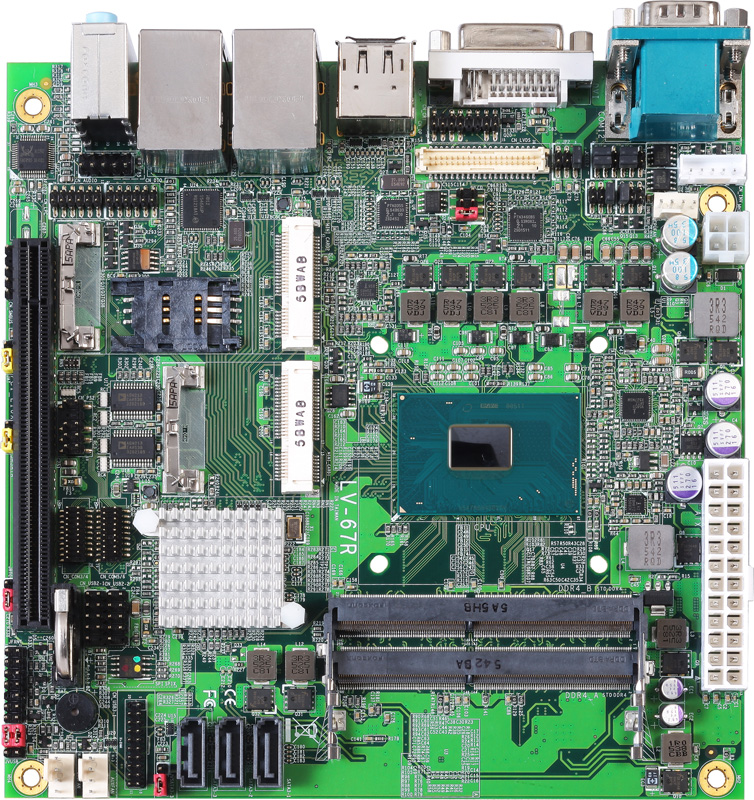

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled LV-67R Mini-ITX  embedded system board based on Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ H-series Processor and Xeon® E3-1505M v6 processor family. The "Skylake / Kaby Lake" PC is claimed to deliver 30 percent  better performance than a PC base on Ivy Bridge architecture, 20 percent better performance than a PCbased on "Haswell", and 10 percent better performance than a "Broadwell" PC.The LV-67R mobile Mini-ITX platform is designed for the 6th generation Intel® Core™ H-series processor, FCBGA1140 package. It is the first mainstream. Intel® mobile platform to support DDR4 memory (2 DDR4 SO-DIMM 2133 MHz up to 32GB).

The platform is based on Intel® HD530/HD630/P630 Graphics, this Skylake / Kaby Lake GPU offers 24 execution units (EUs) clocked at up to 1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely in hardware and thereby much more efficiently than before. Displays can be connected via 1 CRT, 1 LVDS, 1 DVI-I, 1 HDMI and one DP port or CRT optional, up to three displays can be controlled simultaneously. LV-67R offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 3 x SATAIII, equipped with dual Gigabit Ethernet and comes with PS/2 port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 PCIe x16 slot, 1 MiniPCIe socket(Support mSATA), 1 Half size MiniPCIe socket(Support mSATA), 1 Sim slot

BackToTop

  Key Feature



  • CPU: Skylake / Kaby Lake Intel® 6th / 7th Gen Core™ H-series and Xeon® E3-1505M v6 Mobile Processor, FCBGA1440 package.

  • MemoryTwo DDR4 2133 MHz SO-DIMM up to 32 GB.

  • Chipset: Intel® QM170/QM175/CM238 chipset.

  • Integrated GraphicsIntel® Core™ integrated HD Graphics 530 /630/P630 Technology.

  • DVI interface: Onboard DVI-I connector.

  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply

  • Display port interface: Onboard Display port connector.

  • CRT interface: 16-pin connector.

  • LAN Interface2 x Intel® Gigabit LAN.

  • Serial ATASupport 3 x SATA3.

  • Audio: Realtek ALC262 High Definition Audio.

  • Internal I/O: 3 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS, 1 x CRT.

  • Rear I/O: 1 x DisplayPort(optional), 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Audio.

  • Extended interface: One PCIe X 16 slot, one PCIe Mini card, one Half-Size PCIe Mini card, one SIM socket (Mini_card2 support mSATA).

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface.

  • External Audio: Line-in, Line out, MIC-in,

  • Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin 12V.

BackToTop

  Specification


Form Factor

Mini-ITX Motherboard

Processor

Skylake / Kaby Lake Intel® 6 th / 7 th Gen Core™ H-series and Xeon® E3-1505M v6 Mobile Processor

Package Type:  FCBGA1440

Memory

2 x 260-pin DDR4 2133 MHz SO-DIMM up to 32GB. (Unbufferred,  none-ECC memory supported only)

Chipset

Intel® QM170/QM175/CM238

Integrated Graphics

Intel® Core™ integrated HD Graphics 530 /630 /P630 Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

Intel® QM170/QM175/CM238 built-in 3 x Serial ATA3 interface up to 600MB/s

Support RAID 0, 1, 5 and Intel Rapid Storage Technology.

CRT Interface

Onboard 16-pin CRT interface

 DVI Interface  Onboard DVI connector

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 Display port Interface  Onboard Display port connector (optional)

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

2 x Intel® Gigabit Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIe X 16 slot‚ 1 x PCIe Mini card, 1 x Half-Size PCIe Mini card, one SIM socket

(Optional support mSATA for Mini_Card2)

Internal I/O Port

3 x SATA3, 4 x RS232, 4 x USB2.0, 2 x USB3.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out),  1 x PS/2(Keyboard & Mouse), 1 x SMBUS, 1 x CRT

Rear I/O Port

1 x DisplayPort, 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x  RS232/422/485, 1 x Line-in, 1 x Line-out, 1 x MIC-in

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin Full range 6~30V DC input (without LVDS, 60W)

Board Dimension

170 mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 80°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

LV-67RK3

I3-7100E,QM175 Display Port, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

 LV-67RK5

I5-7440EQ,QM175 Display Port, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

LV-67RK7

I7-7820EQ,QM175 Display Port, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

LV-67RKX

E3-1505M v6,CM238 Display Port, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

 LV-67RTK3

I3-7100E,QM175 header for DP module, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

LV-67RTK5

I5-7440EQ,QM175 header for DP module, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

 LV-67RTK7

I7-7820EQ,QM175 header for DP module, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

 LV-67RTKX

E3-1505M v6,CM238 header for DP module, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

LV-67R3

I3-6100E,QM170 Display Port, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

 LV-67R5

I5-6440EQ,QM170 Display Port, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

LV-67R7

I7-6820EQ,QM170 Display Port, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

 LV-67RT3

I3-6100E,QM170 header for DP module, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

LV-67RT5

I5-6440EQ,QM170 header for DP module, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

 LV-67RT7

I7-6820EQ,QM170 header for DP module, CRT, DVI, HDMI, LVDS, LAN, USB3.0 & 2.0, Serial Port, SATA3, COM, LCD inverter, Realtek HD Audio, PCIe Mini card, PCIe x16, PS/2, SMBUS, GPIO, SIM, LPC, mSATA, Standard 24-pin ATX power supply or DC in 6~30V.

ADP-3355

Display port to VGA module.

ADP-3355 NB

Display port to VGA, without bracket.

ADP-3460

Display port to LVDS module.

BackToTop
