LV-67T
Intel® 6th / 7th generation  U-series processor Mini-ITX Motherboard

Support Intel® Skylake/Kaby Lake 6th / 7th generation  U-series processor mobile CPU with
Sunrise Point-LP chipset, DDR4 up to 32 GB, Onboard  DVI-I, Display port, LVDS, 1 x Giga LAN,
1 x Giga PHY LAN, 4 x USB 2.0, 4 x USB 3.0, 6 x COM, HD Audio, 2 x SATAIIl with RAID 0&1 ,
GPIO, 1 x PCI slot, 1 x MiniPCI, 2 x Mini-PCIe socket, 1 x SIM slot.



view larger image



-
Overview
-
Feature
-
Specification
-

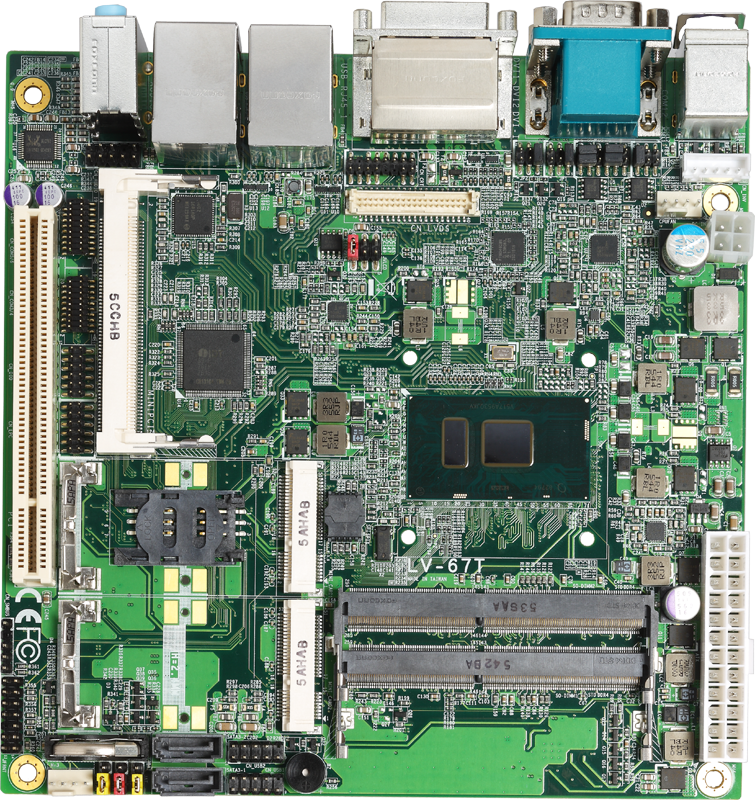

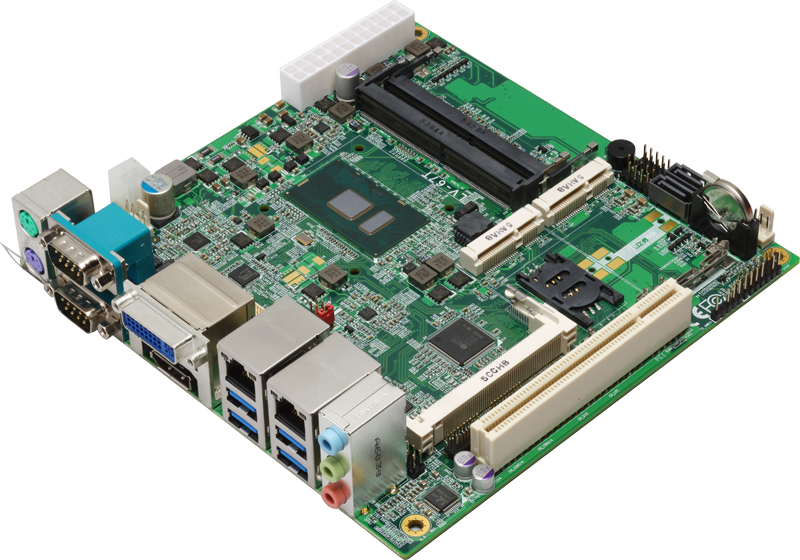

Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial Single Board Computers, unveiled LV-67T Mini-ITX  embedded system board based on Intel® 6th generation "Skylake" Core™ processor family. The "Skylake" PC is claimed to deliver 30 percent better performance than a PC base on Ivy Bridge architecture, 20 percent better performance than a PC based on "Haswell", and 10 percent better performance than a "Broadwell" PC.

Skylake platform is based on Intel® HD530 Graphics, this Skylake GPU offers 24 execution units (EUs) clocked at up to 1150Mhz(depending on the CPU model), The revised video engine now decodes H.265/HEVC completely in hardware and thereby much more efficiently than before.

Now the  LV-67T start to support Intel® 7th generation "Kaby Lake" Core™ processor family !!

The "Kaby Lake" that the performance was improved by 12% for applications and 19% for Internet use compared with the 6th generation chips , its built on an improved 14 nm process (14FF+), Kaby Lake features faster CPU clock speeds, clock speed changes, and higher Turbo frequencies, and a new graphics architecture to improve performance in 3D graphics and 4K video playback.

LV-67T mobile Mini-ITX platform is designed for the 6th/7th generation Intel® Core™ U-series processor, FCBGA1356 package. It is the first mainstream. Intel® mobile platform to support DDR4 memory (Two DDR4 SO-DIMM 1866/2133 MHz up to 32GB).

The displays can be connected one DVI-I, one LVDS and one DP port or CRT optional, up to three displays can be controlled simultaneously. LV-67T offers lots of features including high-speed data transfer interfaces such as 4 x USB3.0 and 2 x SATAIII, equipped with dual Gigabit Ethernet (iAMT 11.6 supported), and comes with PS/2 port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and 1 x PCI slot, 1 x MiniPCI, 2 x MiniPCIe socket (Card2 upport mSATA) and Card2 half-size choosable, 1 x SIM slot.



BackToTop

  Key Feature



  • CPUIntel® Skylake/Kaby Lake 6th / 7th generation Intel® Core™ U-series Mobile processor, FCBGA1356 package.

  • MemoryTwo DDR4 1866/2133 MHz SO-DIMM up to 32 GB.

  • Chipset: Sunrise Point-LP chipset.

  • Integrated GraphicsIntel® Gen 9 integrated HD Graphics.

  • DVI interface: Onboard DVI-I connector.

  • LVDS interface: Onboard 18/24-bit single/dual channel LVDS connector with +3.3V/+5V/ +12V supply

  • Display port interface: Onboard Display port connector.

  • CRT interface: 16-pin connector.

  • LAN Interface1 x Intel® I210 Gigabit LAN and 1 x Intel® I219-LM Gigabit PHY LAN (Support iAMT11.6).

  • Serial ATASupport 2 x SATA3 for RAID 0,1.

  • Audio: Realtek ALC262 High Definition Audio.

  • Internal I/O: 2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio, 1 x PS/2, 1 x SMBUS, 1 x CRT.

  • Rear I/O: 1 x DisplayPort(optional), 1 x DVI-I, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x RS232/422/485, 1 x Audio.

  • Extended interface: One PCI slot, One Mini_PCI, two PCIe Mini card, one SIM socket (Mini_card2 support mSATA).

  • GPIO interfaceOnboard programmable 8-bit Digital I/O interface.

  • External Audio: Line-in, MIC-in, Front, Rear, Center/Subwoofer.

  • Power requirement: Standard 24-pin ATX power supply (20-pin is compatible) or DC input 9~24V.

BackToTop

  Specification


Form Factor

Mini-ITX Motherboard

Processor

6 th / 7 th Generation Intel® Skylake/Kaby Lake Core™ U-series Mobile Processor

Package Type:  FCBGA1356

Memory

2 x 260-pin DDR4 1866/2133 MHz SO-DIMM up to 32GB. (Unbufferred,  none-ECC memory supported only)

Chipset

Sunrise Point-LP

Integrated Graphics

Intel® Gen 9 integrated HD Graphics

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Serial ATA Interface

2 x SATA3 support RAID 0, 1

CRT Interface

Onboard 16-pin CRT interface

 DVI Interface  Onboard DVI connector

LVDS Interface

Onboard 24-bit dual channel LVDS connector with +3.3V/+5V/+12V supply

 Display port Interface  Onboard Display port connector

Audio Interface

Realtek ALC262 HD Audio

LAN Interface

1 x Intel® I210 Gigabit Ethernet Controller

1 x Intel® I219-LM Gigabit PHY Ethernet Controller

GPIO Interface

Onboard programmable 8-bit digital I/O interface

Extended Interface

1 x PCIe X 16 slot‚ 1 x PCIe Mini card, 1 x Half-Size PCIe Mini card, one SIM socket

(Optional support mSATA for Mini_Card2)

Internal I/O Port

2 x SATA3, 4 x RS232, 4 x USB2.0, 1 x LVDS, 1 x LPC, 1 x LCD inverter, 1 x GPIO, 1 x Audio (MIC-in & Line-out), 1 x SMBUS, 1 x CRT

Rear I/O Port

1 x PS/2, 1 x DisplayPort, 1 x DVI-I, 1 x HDMI, 4 x USB3.0, 2 x LAN, 1 x RS232, 1 x  RS232/422/485, 1 x Line-in, 1 x Line-out, 1 x MIC-in

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) or P4 4-pin 9~24V

Board Dimension

170 mm x 170 mm (L x W)

Temperature

Operating within 0 ~ 60°C (32 ~ 140°F)

Storage within -20 ~ 80°C (-4 ~ 176°F)



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

Standard

Intel® 6th / 7th Gen Core U-series Processor, DisplayPort, DVI-I, VGA, LVDS, USB2.0, USB3.0, MiniPCIe, PCI, MiniPCI, mSATA, LAN, Audio, SATA3, COM, LCD inverter, SMBUS, DIO, LPC, PS/2, DC out.

 LV-67TK3

i3-7100U Processor

LV-67TK5

i5-7300U Processor

 LV-67TK7

i7-7600U Processor

 LV-67T3

i3-6100U Processor

LV-67T5

i5-6300U Processor

 LV-67T7

i7-6600U Processor
