ME-C79
4th Intel® Core™ i7 / i5 / i3 and  Celeron 2002E CPU MicroATX Motherboard

Support 4th Intel® Core i7 / i5 / i3 and Celeron 2002E Mobile CPU with Mobile Intel®
 QM87 Express. Onboard DVI, Display Port, CRT, LVDS, 32GB DDR3L, 2 x Giga LAN,
 4 x USB 2.0, 6 x USB 3.0, 6 x COM, 4 x SATA, HD Audio, GPIO, LPT, SMBUS, IrDA,
2 x PCI slots, PCI-Express X16 & X4 slot, Mini-PCIe & Mini-PCI sockets.

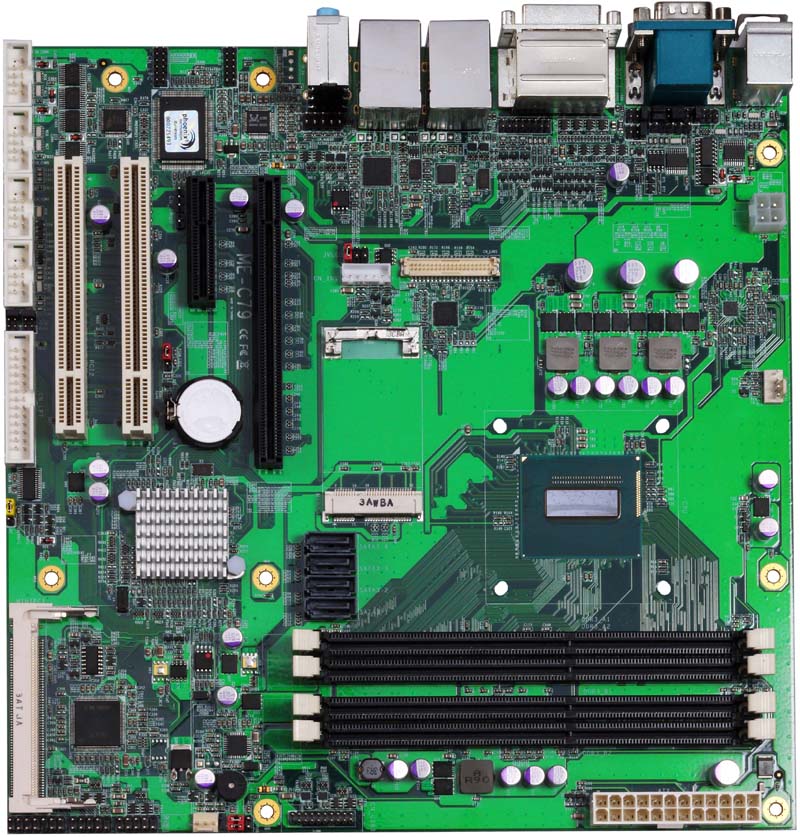

view larger image



-
Overview
-
Feature
-
Specification
-

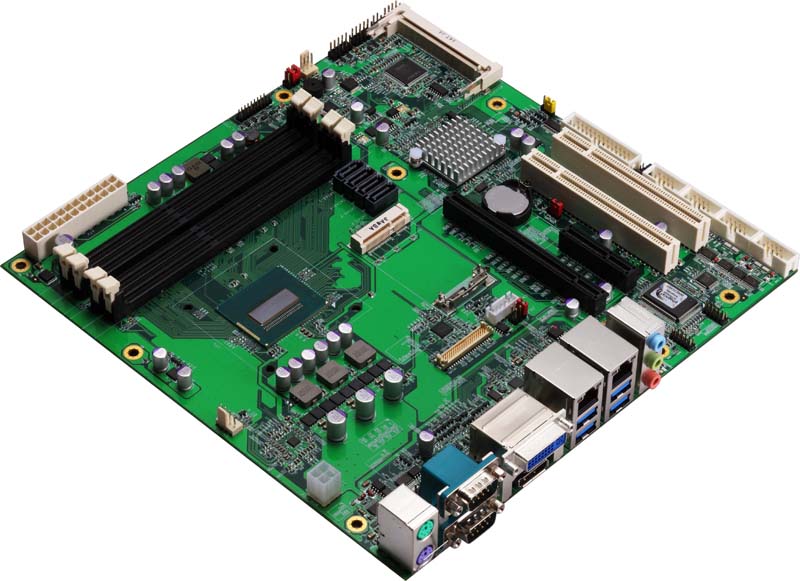

Product Image
-
Ordering Guide
-
Datasheet (PDF format)
-
Technical Document
  Overview

Taiwan Commate Computer Inc.(COMMELL), the worldwide leader of Industrial MicroATX motherboard, introduced the  MicroATX motherboard ME-C79 that designed for the 4th generation Intel Core i7/i5/i3 , ex. i7-4700EQ , and Celeron 2002E Moblie processors.The MicroATX motherboard based on intel QM87 Express chipset is part of the mobile Intel QM87 Series Chipset family, along with intel 4th generation processors integrated  HD Graphic 4600 (formerly known as “Haswell”, manufactured on 22nm processor technology). The COMMELL ME-C79 platform provides excellent CPU, graphics, media performance, flexibility, and enhanced security, is ideally suited to applications requiring multi-tasking capabilities, such as gaming, surveillance, medical, defense, transportation and industrial automation application.

The ME-C79 Industrial MicroATX motherboard is designed for the 4th generation Intel® Core™ i7/i5/i3 , Celeron 2002E Mobile Processors in the FCBGA1364 supporting four DDR3L DIMM up to 32GB and running 1333/1600 MHz No ECC function. The platform is based on Intel® HD Graphics 4600 that provides high-end media and graphics capabilities for devices that display videos, 2D/3D graphics and interactive content. In addition, ME-C79 supports CRT, LVDS, DVI and one Display port to provide its advanced solutions for imaging, machine vision and digital signage applications.







ME-C79 offers lots of features including high-speed data transfer interfaces such as 6 x USB3.0 and 4 x SATA3 supported RAID 0/1/5/10, equipped with dual Gigabit Ethernet with iAMT 9.0 supported, and comes with PS/2 Keyboard and Mouse port, 5 x RS232 and 1 x RS232/422/485, 4 x USB2.0, Intel® High Definition Audio, and two PCI slots, one PCI Express x16 & x4 slots, one PCIE Mini card & mini PCI socket,


BackToTop

  Key Feature
  • CPUIntel® 4th generation Core™ i7/ i5/ i3 and Celeron 2002E Mobile Processor

  • MemoryFour DDR3L (support 1.5V) DIMM 1333/1600 MHz up to 32 GB

  • Chipset: Mobile Intel® QM87 Express chipset

  • Integrated GraphicsIntel® Core™ integrated HD Graphics 4600 Technology

  • Display port interface: Rear I/O Port

  • CRT InterfaceOnboard 2x8 pin-header

  • LVDS interface: Onboard 24-bit dual channel connector with +3.3/+5/+12V supply

  • DVI interface: Rear I/O Port

  • LAN Interface1 x Intel® I210-AT Giga LAN and 1 x Intel® I217-LM Giga LAN(Support iAMT9.0)

  • Serial ATA: Support 4 x SATA ( All serial ATA3 )

  • Audio: Realtek ALC888 High Definition Audio.

  • I/O ports: 5 x RS232 and 1 x RS232/422/485 Serial Ports, 4 x USB2.0 ports,

          6 x USB3.0 ports, 1 x Display port, 1 x DVI, 1 x PS/2 keyboard and mouse ports, 1 x           LPT, 1 x CRT.

  • Extended interface: PCI-Express X16 slot, PCI-Express X4 slot, 2 x PCI slots,1 x mini PCI socket, 1 x Mini-PCIe socket.

  • GPIO interface: Onboard programmable 12 pin-header, 8-bit Digital I/O interface.

  • Power requirement : Standard 24-pin(20-pin is compatible) ATX P/S and P4 4-pin 12V

BackToTop

  Specification


Form Factor

Industrial MicroATX  Motherboard

Processor

4th  generation Intel® Core i7 / i5 / i3 and Celeron 2002E Mobile processor

Memory

4 x DDR3L (support 1.5V) 1333/1600 DIMM up to 32 GB

Chipset

Mobile Intel® QM87 Express chipset

Integrated Graphics

Intel® Core™ integrated HD Graphics 4600 Technology

Real Time Clock

Chipset integrated RTC with onboard lithium battery

Watchdog Timer

Generates a system reset with internal timer for 1min/s ~ 255min/s

Power Management

ACPI 4.0 compliant

Serial ATA Interface

All 4 x SATA3 interface up to 600MB/s.

Display port Interface  Rear I/O Port

CRT Interface

Onboard 2x8 pin-header

LVDS Interface

Onboard 24-bit dual channel connector with +3.3/+5/+12V supply

 DVI Interface  Rear I/O Port

Audio Interface

Realtek ALC888 HD Audio

LAN Interface

1 x Intel® I210-AT Gigabit Ethernet Controller

1 x Intel® I217-LM Gigabit Ethernet Controller(Support iAMT8.0)

GPIO Interface

Onboard programmable 12 pin-header, 8-bit digital I/O interface

Extended Interface

1 x PCIe x16/x4 slot, 1 x PCIe mini card socket, 2 x PCI slot ,

 1 x Mini PCI socket
(Optional support mSATA(SATAIII) for Mini_Card1,but SATA6 will be disable)

Internal I/O Port

4 x RS232,1 x SMBUS, 1 x GPIO, 2 x USB3.0, 4 x USB2.0, 1 x IrDA, 1 x CRT , 1 x LVDS, 1 x LCD inverter, 1 x LPC, 4 x Serial ATA3, 1 x Parallel port, and 1 x Front panel Audio.

External I/O Port

1 x PS/2, 2 x LAN ports, 1 x DVI, 1 x DisplayPort, 4 x USB3.0 ports, 1 x RS232/422/485, 1 x RS232, and 1 x HD Audio.

Power Requirement

Standard 24-pin ATX power supply (20-pin is compatible) and P4 4-pin 12V

Board Dimension

244 mm x 244 mm (L x W)

Temperature

Operating within 0 ~ 60°C

Storage within -20 ~ 85°C



Download Datasheet @ PDF format

BackToTop

  Ordering Guide

ME-C7917L

i7-4700EQ Mobile Processor Onboard DVI, DisplayPort, CRT, LVDS, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, GPIO, IrDA, PCI, Mini PCI, PCIE x16/x4, PCI Express mini card, mSATA, LPT,

ME-C7917P

Celeron 2002E Mobile Processor Onboard DVI, DisplayPort, CRT, LVDS, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, GPIO, IrDA, PCI, Mini PCI, PCIE x16/x4, PCI Express mini card,  mSATA, LPT.

ME-C7917Q

i5-4402E Mobile Processor Onboard DVI, DisplayPort, CRT, LVDS, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, GPIO, IrDA, PCI, Mini PCI, PCIE x16/x4, PCI Express mini card, mSATA, LPT,

ME-C7917R

i3-4102E Mobile Processor Onboard DVI, DisplayPort, CRT, LVDS, LAN, USB2.0, USB3.0, HD Audio, SATA3, SMBUS, LPC, GPIO, IrDA, PCI, Mini PCI, PCIE x16/x4, PCI Express mini card,  mSATA, LPT.
