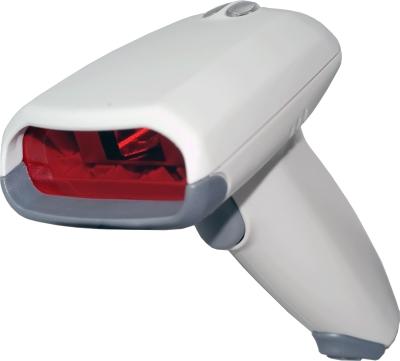

POS & Panel PC > POS > Bar Code Scanner > DBS-915
Excellent value for popular barcode reading
Multiple 4-in-1 interface in one scanner
User Friendly and PnP design
Built with professional decoder
Optical
Width of Window
700mm @ 50mil
Light Source
650 ± 10nm (25℃)
Sensor
Laser Diode
Scanning Speed
48 ± 2 scans/sec.
Depth of Field
650mm @ 50mil
Ambient Light
7000 Lux Max.
Reading Performance
Symbologies
All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII,
Code 32 / Italian Pharmacy, Code 128, Codabar/NW7, Interleave 25,
Industrial 25, Matrix 25, MSI/Plessey, Telepen, Code 93, Code 11,
China Postage, Code 26, LCD25, GS1 Databar
Resolution
4mil @ PCS 90%
PSC
0.3 PCS value @ 20mil Code 39
Electrical
Interface
RS-232, KB, USB
Connector
RJ-45 10-pin
Voltage
DC+5V ± 5%
Operating Current
65mA
Standby Current
40 ~ 45mA
Environment
Operating Temperature
0℃ ~ +50℃
Storage Temperature
-20℃ ~ +60℃
Relative Humidity
5% ~ 95% (Non-condensing)
Physical
Material
ABS plastic, rubber
Weight
Approx 135g
Dimension
139.5 x 89.9 x 71.1mm
Durability
Drop Test
40 inches drop on concrete surface
Life Time
40,000 hours
Trigger Switch
1,000,000 times
MTBF
20,000 hours
DBS-915M: Laser gun, Black or Beige, PS2
DBS-915R: Laser gun, Black or Beige, RS-232
DBS-915U: Laser gun, Black or Beige, USB
DHDR-6P: High stands/hand free holder, Black or Beige
