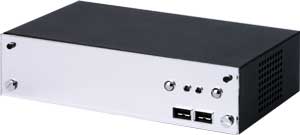

CMB-362
Mini
barebone with DC-DCIN & 80W adapter .
|
|
Overview
|
|
COMMELL's
CMB-362 is a Mini-server / terminal
platform .the CMB-362 provides the
high reliability solution with high performance and
integration. With
these features, CMB-362 should be the advanced solution
for you in :
-
Industrial
Embedded Applied Mini-Server, Transaction Station, POS/POI,
KIOSK, ATM, Web Payphone and Terminal Platform
-
3D
Video Game Machine, STB (Set-Top-Box),
Multi-Media Station and Terminal, Book-size PC, Thin
Client, Internet Computer, WebPAD,
-
Industrial
Panel PC, Portable Workstation, Panel-mount /
Wall-mount / Ceil-mount Workstation
|
|
BackToTop |
|
Features
|
dh
| Form Factor |
Mini
barebone system |
| Construction |
Heavy-Duty
steel |
| Mini-ITX Board |
Inside
Motherboatd can be : LE-362
: 3.5" MB with onabord VIA Eden 667 MHz .
|
| Drive Bay |
Internal
1 x 2.5" HDD Space |
| Riser card |
No |
| Thermal Control |
One system
cooling |
| Front Panel |
System Reset
switch
Power
On/Off and HDD activity
2
x USB ports
|
| Rear Side I/O |
PS/2
Keyboard and mouse, TV-out / S-Video, parallel port ,
LAN, AC97 Audio,1 x
COM |
| Environment |
Operating
Temperature: 0 ~ 50C
|
| Power supply |
80W adapter |
| Dimension |
235 x 135 x
58 mm |
| Weight |
4.58 kgw
, (With Case and mothewrboard) |
|
|
BackToTop |
|
Ordering Guide
|
|
|
|
CMB-362-128
|
LE-362-128 , Chassis ,
80W adapter , DC-DCIN module
|
|
